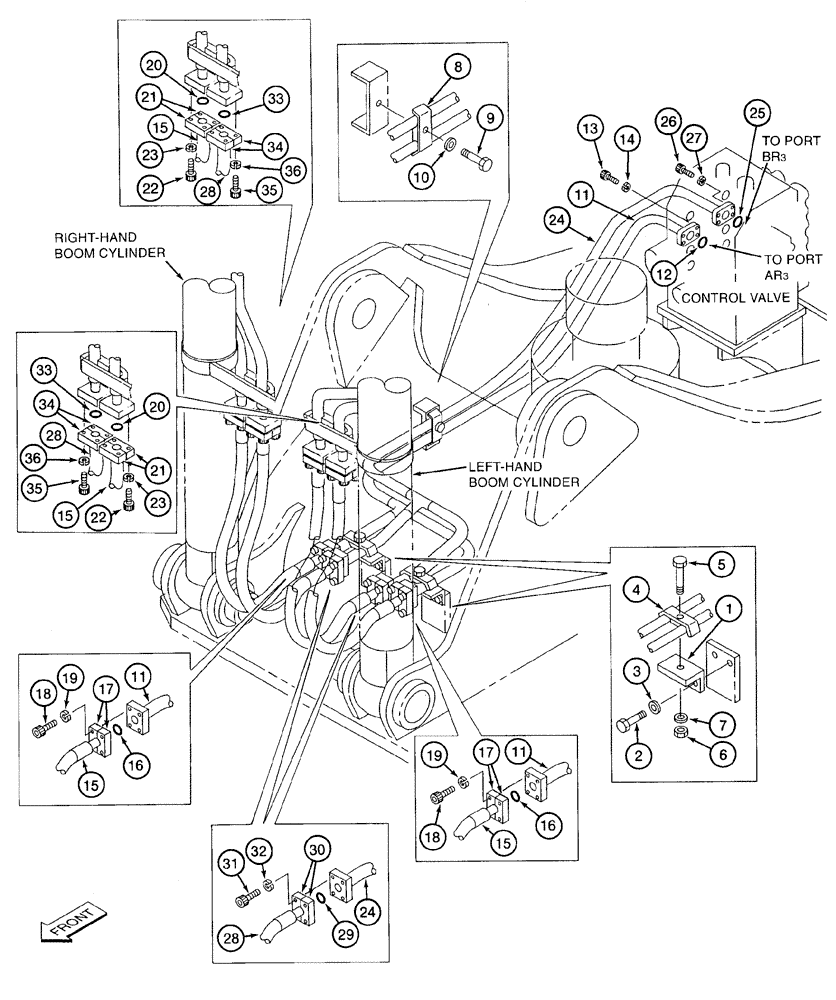

Запчасти Case 9050B (8-050) - BOOM CYLINDER LINES, BOOM-UP LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
162327A1
BRACKET
mounting
2шт.
2
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, full htreads 12 - 1.75 x 30 mm, class 10.9
4шт.
3
150811A1
WASHER
flat, special 12 mm
4шт.
4
152997A1
COLLAR
tube
1шт.
5
827-12070
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
- hex 12 - 1.75 x 70 mm, class 10.9
1шт.
6
829-1412
NUT,M12, Cl 10.9
1шт.
7
150811A1
WASHER
flat, special 12 mm
1шт.
8
152997A1
COLLAR
tube
1шт.
9
827-12070
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
- hex 12 - 1.75 x 70 mm, class 10.9
1шт.
10
150811A1
WASHER
flat, special 12 mm
1шт.
11
162326A1
TUBE ASSY.,26 mm ID, 34 mm OD
boom-up (connects to control valve port "AR3"), lines
1шт.
12
154548A1
O-RING
tube, boom up lines
1шт.
13
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
4шт.
14
112309A1
LOCK WASHER
lock, special, boom up lines
4шт.
15
162979A1
HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm
- Boom-up lines, Boom up lines 25.40 mm ID x 1080.00 mm
2шт.
16
162246A1
O-RING
hose, boom up lines
2шт.
17
153459A1
FLANGE
split, boom up lines
4шт.
18
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
8шт.
19
112309A1
LOCK WASHER
lock, special, boom up lines
8шт.
20
162246A1
O-RING
hose , boom up lines
2шт.
21
153459A1
FLANGE
split, boom up lines
4шт.
22
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
8шт.
23
112309A1
LOCK WASHER
lock, special, boom up lines
8шт.
24
162325A1
TUBE ASSY.,26 mm ID, 34 mm OD
boom-down (connects to control valve port "BR3"), up lines
1шт.
25
154548A1
O-RING
tube, boom up lines
1шт.
26
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
4шт.
27
112309A1
LOCK WASHER
lock, special, boom up lines
1шт.
28
162979A1
HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm
- Boom-down lines, Up 25.40 mm ID x 1080.00 mm
2шт.
29
162246A1
O-RING
hose, boom up lines
2шт.
30
153459A1
FLANGE
split, boom up lines
4шт.
31
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
8шт.
32
112309A1
LOCK WASHER
lock, special, boom up lines
8шт.
33
162246A1
O-RING
hose, boom up lines
2шт.
34
153459A1
FLANGE
split, boom up lines
4шт.
35
862-10035
HEX SOC SCREW,M10 x 35mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9, Boom up lines
8шт.
36
112309A1
LOCK WASHER
lock, special, boom up lines
8шт.
Выбрано товаров: 36
