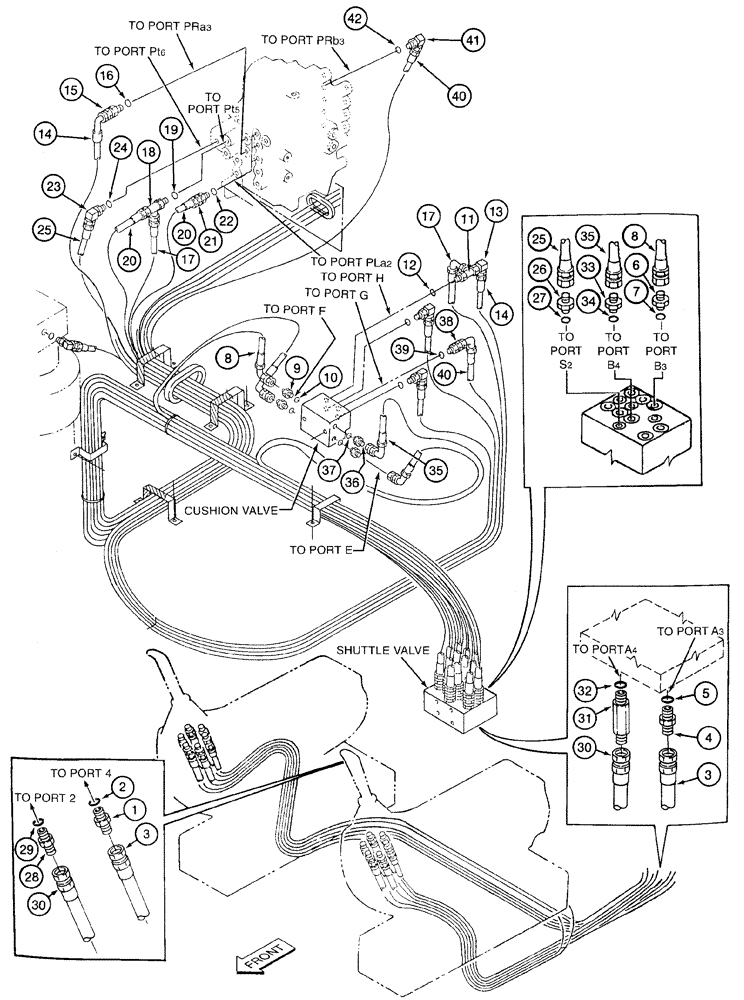

Запчасти Case 9050B (8-044) - BOOM CONTROL LINES, BOOM-UP LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

3

159211A1

HYDRAULIC HOSE

78-3/4 inch (2000 mm) long boom-up control line, right hand console to shuttle valve (controller port "4" to shuttle valve port "A3")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

adapter

1шт.

8

159223A1

HOSE ASSY.

44-3/16 inch (1100 mm) long boom-up control line (shuttle valve port "B3" to cushion valve port "F")

1шт.

9

160074A1

PLUG

ADAPTER - straight

1шт.

10

154486A1

O-RING

adapter

1шт.

11

163422A1

TEE

special

1шт.

12

154475A1

O-RING

tee

1шт.

13

153526A1

ELBOW

90 degree, special

1шт.

14

161661A1

HYDRAULIC HOSE

- 72-13/16 inch (1850 mm) long, Boom-up control line (Cushion valve port "H" to control valve port "PRa3")

1шт.

15

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 16

1шт.

16

154475A1

O-RING

adapter

1шт.

17

161485A1

HOSE ASSY.

72-13/16 inch (1850 mm) long cushion valve boom-up signal line (from tee in shuttle valve port "H" to tee in control valve port "Pt5")

1шт.

18

159497A1

TEE

special, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

tee

1шт.

20

163109A1

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

- Boom-up transfer line (Control valve port "PLa2" to tee in control valve port "Pt5") 6.30 mm ID x 450.00 mm

1шт.

21

153378A1

ADAPTER

straight, special, Includes: Ref. 22

1шт.

22

154475A1

O-RING

adapter

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, boom activity signal line, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow, boom activity signal line

1шт.

25

152299A1

HOSE,63.00 mm ID x 2950.00 mm

- Boom-up/down signal line (Shuttle valve port "S2" to control valve port "Pt6"), Activity 63.00 mm ID x 2950.00 mm

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, boom down lines, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, boom down lines

1шт.

28

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

straight, boom down lines, Includes: Ref. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter, boom down lines

1шт.

30

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Boom-down control line (RH controller port "2" to shuttle valve port "A4") 9.50 mm ID x 2100.00 mm

1шт.

31

163421A1

STUD

ADAPTER - special, boom down lines, Includes: Ref. 32

1шт.

32

154475A1

O-RING

adapter, boom down lines

1шт.

33

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, boom down lines, Includes: Ref. 34

1шт.

34

154475A1

O-RING

adapter, boom down lines

1шт.

35

159224A1

HOSE ASSY.

35-7/16 inch (900 mm) long boom-down control line (shuttle valve port "b4" to cushion valve port "E")

1шт.

36

160074A1

PLUG

ADAPTER - straight, boom down lines

1шт.

37

154486A1

O-RING

adapter, boom down lines

1шт.

38

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, boom down lines, Includes: Ref. 39

1шт.

39

154475A1

O-RING

adapter, boom down lines

1шт.

40

161174A1

HOSE ASSY.

78-3/4 inch (2000 mm) long boom-down control line (cushion valve port "G" to control valve port "PRb3")

1шт.

41

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, boom down lines, Includes: Ref. 42

1шт.

42

154475A1

O-RING

elbow, boom down lines

1шт.
