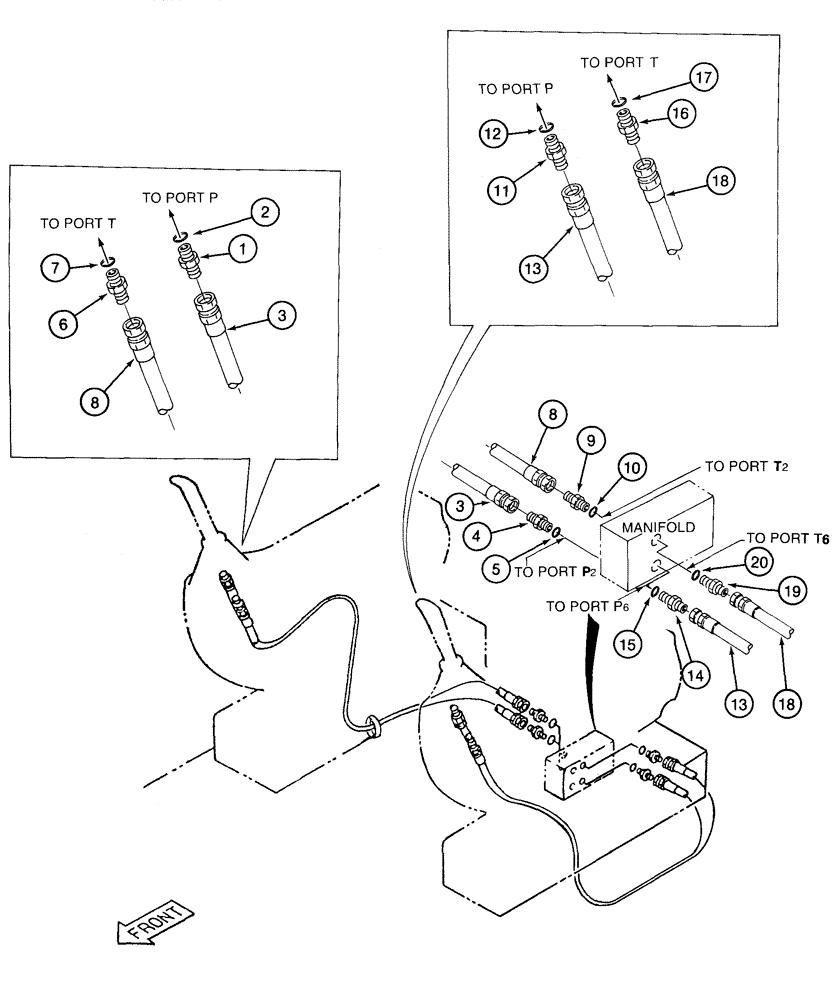

Запчасти Case 9050B (8-040) - MANUAL CONTROL VALVE PRESSURE AND RETURN LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

3

159213A1

HYDRAULIC HOSE

45-1/4 inch (1150 mm) long right-hand console-to-manifold pressure line (manual control valve port "P" to manifold port "P2"

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

adapter

1шт.

6

152747A1

ADAPTER

straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

8

159214A1

HYDRAULIC HOSE

47-1/4 inch (1200 mm) long right-hand console-to-manifold return line (manual control valve port "T" to manifold port "T2"

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

adapter

1шт.

11

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

13

159214A1

HYDRAULIC HOSE

47-1/4 inch (1200 mm) long left-hand console-to-manifold pressure line (manual control valve port "P" to manifold port "P6"

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight hose, Includes: Ref. 15

1шт.

15

154475A1

O-RING

adapter

1шт.

16

152747A1

ADAPTER

straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

18

159213A1

HYDRAULIC HOSE

45-1/4 inch (1150 mm) long left-hand console-to-manifold return line (manual control valve port "T" to manifold port "T6"

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

straight, Includes: Ref. 20

1шт.

20

154475A1

O-RING

adapter

1шт.
