Запчасти Case 9050B (8-036) - PUMP PILOT SUPPLY LINES (08) - HYDRAULICS

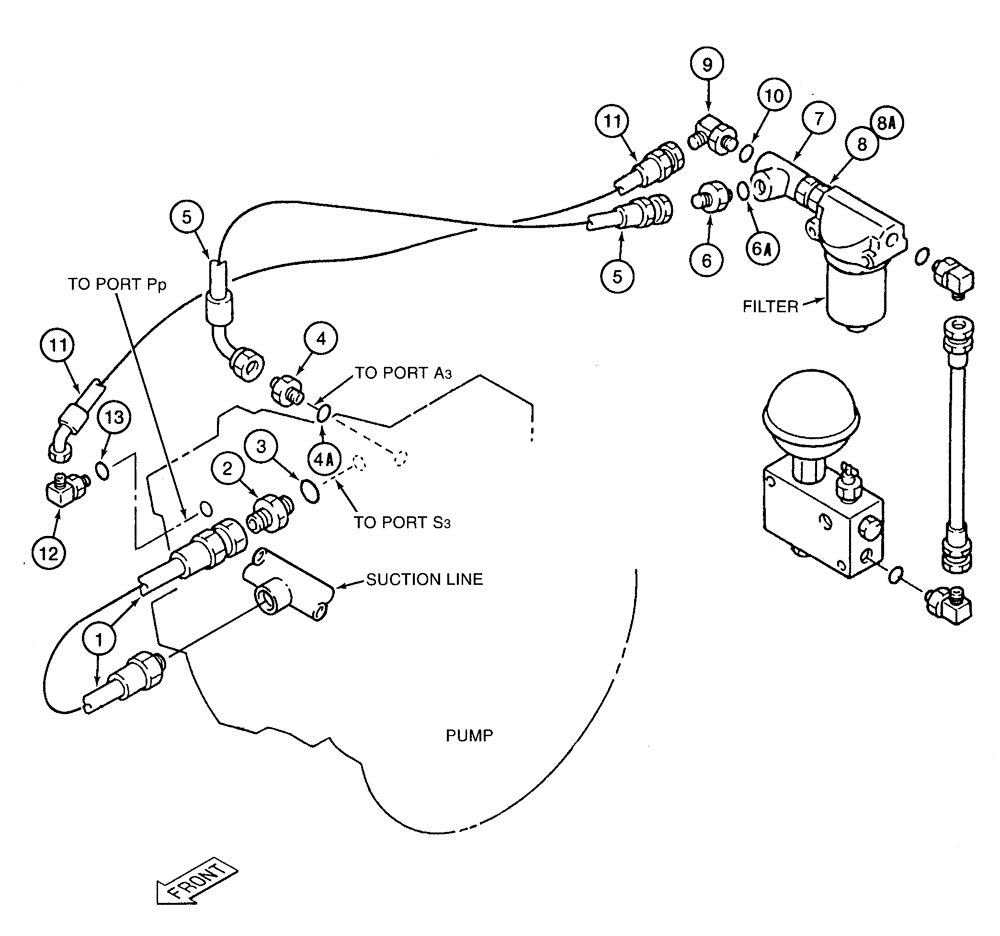

Схема запчастей Case 9050B - (8-036) - PUMP PILOT SUPPLY LINES (08) - HYDRAULICS
8a
4
5
10
1
11
13
7
9
8
12
4a
11
2
6
6a
5
3

Артикул

Название

Примечание

Количество

1

162560A1

HYDRAULIC HOSE,19.00 mm ID x 880.00 mm

- Gear pump supply line (From port in suction line to pump port "S3") 19.00 mm ID x 880.00 mm

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 3

1шт.

3

154503A1

O-RING

adapter

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 4A

1шт.

4a

154487A1

O-RING

adapter

1шт.

5

162561A1

HOSE,12.70 mm ID x 450.00 mm

long pilot pressure supply line (pump port "A3" to tee in filter inlet port) 12.70 mm ID x 450.00 mm

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 6A

1шт.

6a

154487A1

O-RING

adapter

1шт.

7

162566A1

TEE

special

1шт.

8

162569A1

ADAPTER

- special includes o-ring, Includes: Ref. 8A

1шт.

8a

154487A1

O-RING

adapter (not shown)

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

11

162527A1

HOSE ASSY.

27-9/16 inch (700 mm) long pilot pressure signal line (pump port "Pp" to tee in filter inlet port)

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

Выбрано товаров: 16
