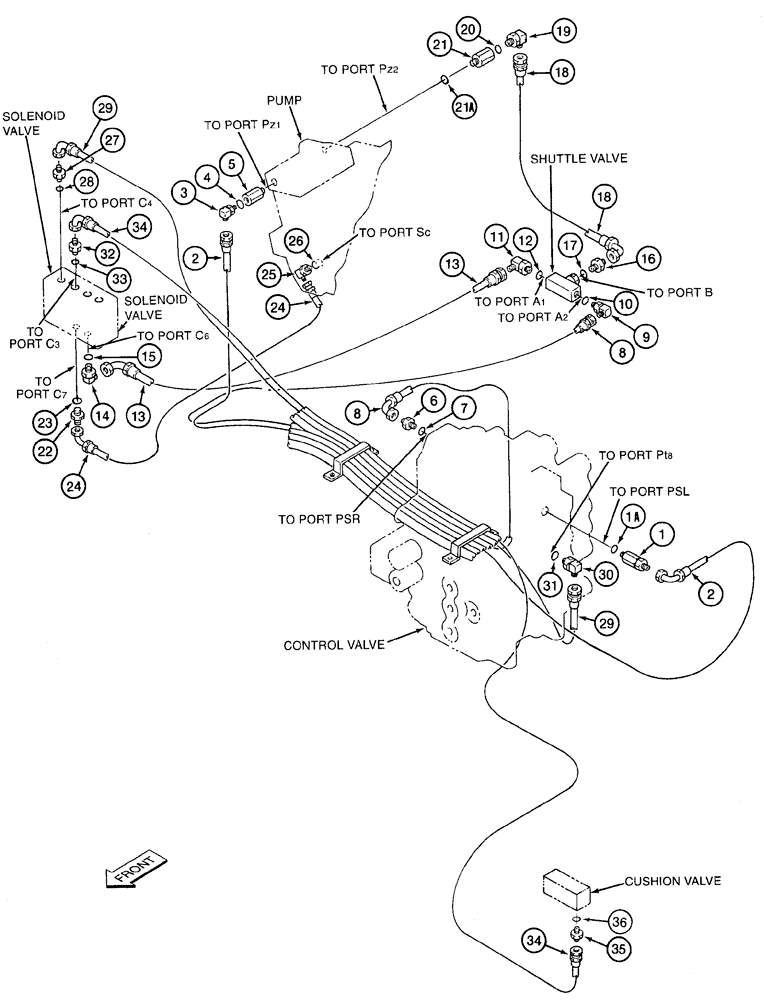

Запчасти Case 9050B (8-032) - CONTROL SIGNAL LINES, PUMP REGULATOR LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
163104A1
ADAPTER
straight, special, Includes: Ref. 1A
1шт.
1a
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor
1шт.
2
159020A1
HOSE
96-7/16 inch (2450 mm) long pump regulator signal line (control valve port "PSL" to pump port "Pz1")
1шт.
3
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 4
1шт.
4
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter
1шт.
5
162525A1
STUD
ADAPTER - straight, special
1шт.
6
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, Includes: Ref. 7
1шт.
7
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor
1шт.
8
161485A1
HOSE ASSY.
72-13/16 inch (1850 mm) long pump regulator signal line (control valve port "PSR" to shuttle valve port "A2")
1шт.
9
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 10
1шт.
10
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
11
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
ADAPTER - straight, special, Includes: Ref. 12
1шт.
12
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
13
162563A1
HOSE ASSY.
31-1/2 inch (800 mm) long pump regulator signal line (solenoid valve port "C6" to shuttle valve port "A1")
1шт.
14
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 15
1шт.
15
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbo
1шт.
16
158183A1
ELEC CONNECTOR,Male
ADAPTER - straight, special, Includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor
1шт.
18
162563A1
HOSE ASSY.
31-1/2 inch (800 mm) long pump regulator signal line (shuttle valve port "C6" to pump port "Pz2")
1шт.
19
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 20
1шт.
20
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
21
162525A1
STUD
ADAPTER - straight, special, Includes: Ref. 21A
1шт.
21a
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor
1шт.
22
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, Includes: Ref. 23
1шт.
23
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor
1шт.
24
161482A1
HOSE ASSY.
59-1/16 inch (1500 mm) long maximum flow control signal (solenoid valve port "C7" to pump port "Sc")
1шт.
25
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 26
1шт.
26
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
27
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, two stage relief lines, Includes: Ref. 28
1шт.
28
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor, two stage relief lines
1шт.
29
162555A1
HOSE
70-7/8 inch (1800 mm) long two stage relief line (solenoid valve port "C4" to control valve port "PT8"), two stage relief lines
1шт.
30
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, two stage relief lines, Includes: Ref. 31
1шт.
31
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow, two stage relief lines
1шт.
32
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, cushion valve control lines, Includes: Ref. 33
1шт.
33
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor, cushion valve control lines
1шт.
34
162649A1
HOSE,3100.00 mm
cushion valve on/off signal line (solenoid valve port "C3" to cushion valve port "S"), control lines 3100.00 mm
1шт.
35
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, cushion valve control lines, Includes: Ref. 36
1шт.
36
154467A1
O-RING,10.8mm ID x 2.4mm Width
adaptor, cushion valve control lines
1шт.
Выбрано товаров: 38
