(8-028) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT, CONTINUED

Запчасти Case 9050B (8-028) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT, CONTINUED (08) - HYDRAULICS

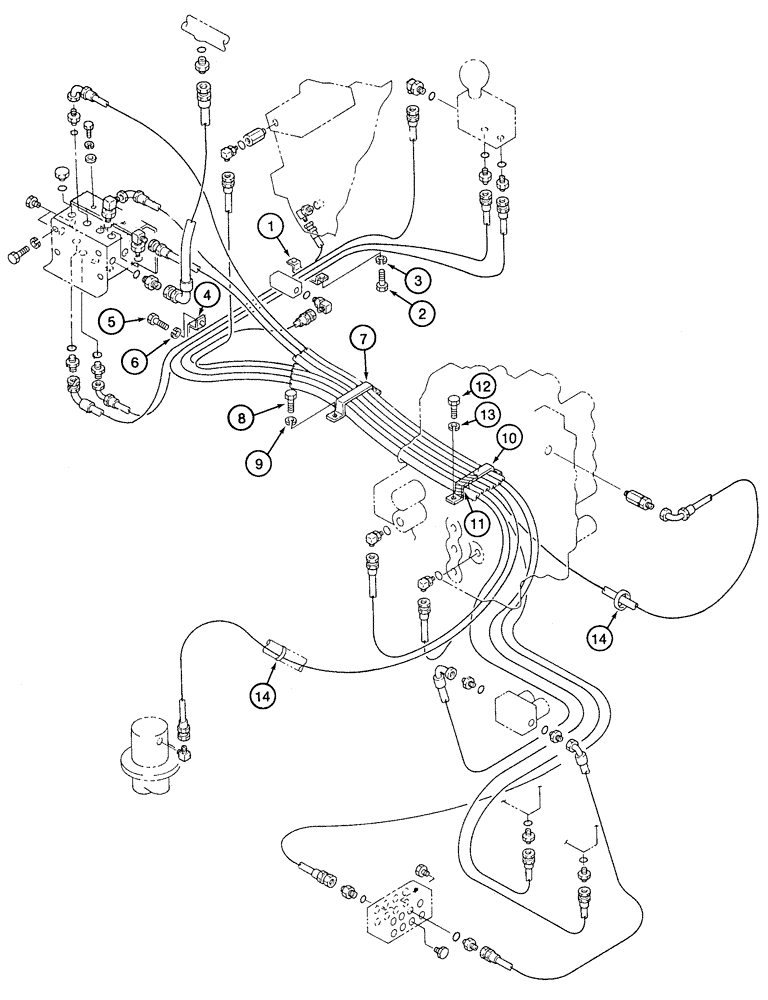

Схема запчастей Case 9050B - (8-028) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT, CONTINUED (08) - HYDRAULICS
11
5
4
14
1
14
2
12
9
10
3
13
7
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159250A1

CLAMP

support

1шт.

2

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

4

159033A1

CLAMP

support

1шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

7

159036A1

CLAMP

support

1шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

10

159036A1

CLAMP

support

1шт.

11

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

150071A1

MOUNTING CLIP

STRAP - tie

1шт.
