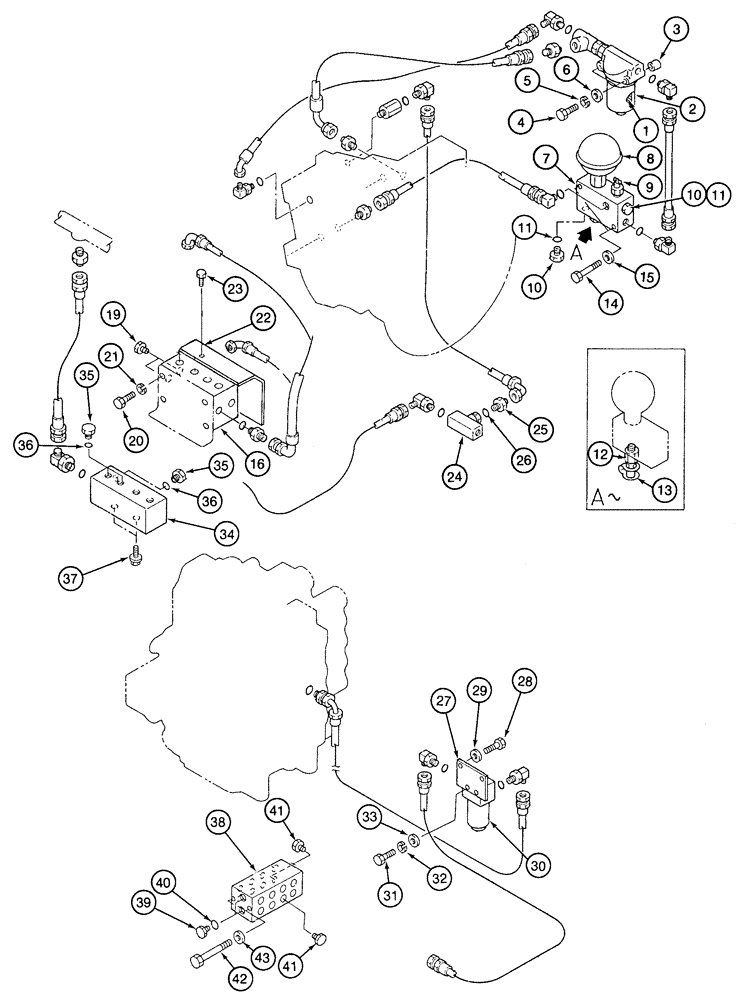

Запчасти Case 9050B (8-026) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT, CONTINUED (08) - HYDRAULICS

1

159482A1

FILTER

oil, Includes: Ref. 2

1шт.

2

153233A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

3

150325A1

SPACER

tube 8 ID 13.8 OD x 10.35 mm long

1шт.

4

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

- hex, 6 - 1.0 x 80 mm, class 10.9

2шт.

5

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

7

162568A1

VALVE

check

1шт.

8

150894A1

ACCUMULATOR

pilot hydraulic

1шт.

9

162567A1

VALVE

relief

1шт.

10

159002A1

PLUG

hydraulic port, Includes: Ref. 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

2шт.

12

151136A1

BUSHING

ADAPTER - straight, special

1шт.

13

150290A1

PLUG

oil, special

1шт.

14

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

hex 8 - 1.25 x 80 mm, class 10.9

2шт.

15

153081A1

WASHER

flat, special

2шт.

16

161310A1

VALVE

ASSEMBLY - solenoid parts list page 8-141

1шт.

19

162557A1

PLUG

special

2шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

21

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

22

161551A1

COVER

solenoid valve

1шт.

23

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

2шт.

24

KHJ17090

VALVE PRESSURE RELIE

shuttle; Replaces 158186A1

1шт.

25

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

27

162537A1

LARGE PLATE

BRACKET - mounting

1шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

29

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

30

162538A1

VALVE

ASSEMBLY - solenoid parts list figure 8-148

1шт.

31

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

32

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

34

162562A1

MANIFOLD

drain

1шт.

35

159002A1

PLUG

hydraulic port, Includes: Ref. 36

3шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

3шт.

37

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

38

159015A1

MANIFOLD

pressure and return

1шт.

39

159002A1

PLUG

hydraulic port, Includes: Ref. 40

2шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

2шт.

41

162557A1

PLUG

special

2шт.

42

159386A1

BOLT

special

2шт.

43

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.
