(8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT

Запчасти Case 9050B (8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT (08) - HYDRAULICS

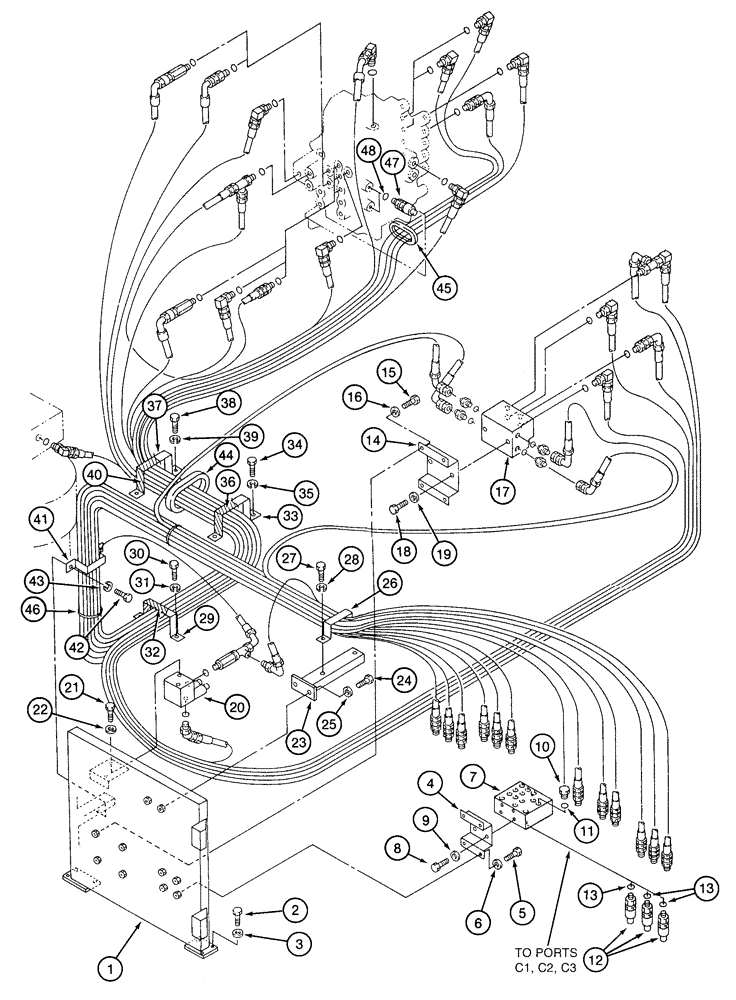

Схема запчастей Case 9050B - (8-024) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS, BATTERY COMPARTMENT (08) - HYDRAULICS
17
25
26
23
20
31
42
39
14
28
21
10
44
8
47
33
19
13
43
48
18
40
4
30
22
32
9
37
38
46
41
3
45
12
2
7
15
1
13
36
29
24
11
27
5
34
35
6
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162532A1

BRACKET

component mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

6шт.

3

150811A1

WASHER

flat, special 12 mm

6шт.

4

162535A1

BRACKET

mounting

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

6

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

7

162077A1

VALVE

shuttle

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

9

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

10

159002A1

PLUG

hydraulic port, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

12

153412A1

SOCKET

REDUCER - special pressure switch (in manifold ports "C1", "C2", and "C3") see figure 9-4 for switches, Includes: Ref. 13

3шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

162536A1

BRACKET

mounting

1шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

16

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

17

162078A1

VALVE

ASSEMBLY - cushion parts list page 8-145

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

19

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

20

161311A1

VALVE

ASSEMBLY - swing brake release Parts list page 8-147

1шт.

21

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

22

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

23

159248A1

BRACKET

support

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

25

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

26

159038A1

CLAMP

support

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

29

159040A1

CLAMP

support

1шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

32

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

33

159040A1

CLAMP

support

1шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

35

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

36

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

37

159040A1

CLAMP

support

1шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

40

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

41

159025A1

CLAMP

support

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

43

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

44

162522A1

RUBBER BLOCK

1шт.

45

162533A1

RUBBER BLOCK

1шт.

46

150071A1

MOUNTING CLIP

STRAP - tie

2шт.

47

159026A1

SOCKET

FITTING - hydraulic, special

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

fitting

2шт.
