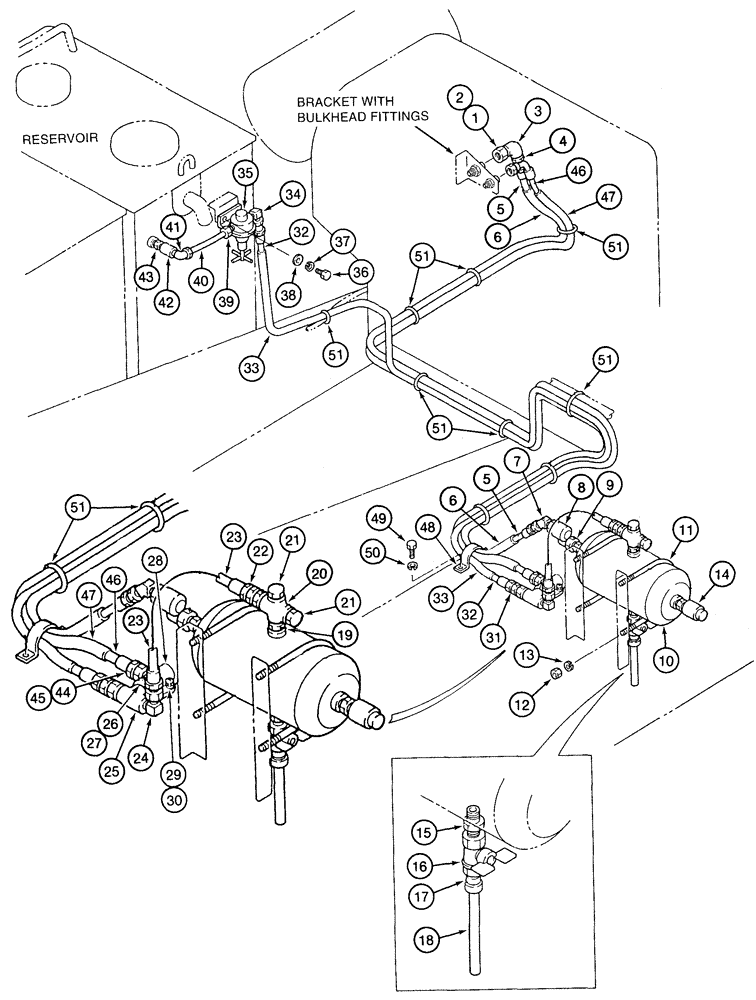

Запчасти Case 9050B (8-020) - RESERVOIR PRESSURIZATION SYSTEM (08) - HYDRAULICS

1

153065A1

SOCKET

ADAPTER - special

1шт.

2

152510A1

GASKET

adapter

1шт.

3

162633A1

ELBOW

90 degree

1шт.

4

153597A1

ADAPTER

straight, special

1шт.

5

162876A1

HYDRAULIC HOSE,9.50 mm ID x 3300.00 mm

- Air tank supply line 9.50 mm ID x 3300.00 mm

1шт.

6

158069A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 118-1/8 inch (3000 mm) long

1шт.

7

153488A1

ADAPTER

ELBOW - special 45 degree

1шт.

8

153057A1

VALVE

ASSEMBLY - check component parts not serviced separately

1шт.

9

150848A1

NIPPLE, LUBE

ADAPTER - special

1шт.

10

153058A1

AIR TANK

1шт.

11

150119A1

U-BOLT,M8 x 170mm W x 105mm L

tank mounting

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

153060A1

VALVE

relief safety

1шт.

15

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

16

158923A1

DRAIN VALVE

shutoff

1шт.

17

152946A1

HYD CONNECTOR

CONNECTOR - straight component parts not serviced separately

1шт.

18

162637A1

LARGE HOSE,7 mm ID, 9.5 mm OD

TUBE - drain

1шт.

19

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

20

152303A1

4 WAY CONNECTION

hydraulic, special

1шт.

21

150990A1

PLUG

pipe

2шт.

22

152748A1

ADAPTER

straight, special

1шт.

23

153293A1

HOSE ASSY.

15 inch (380 mm) long pressurizing supply

1шт.

24

152749A1

ADAPTER

ELBOW - special 90 degree

1шт.

25

152135A1

TEE

special

1шт.

26

153065A1

SOCKET

ADAPTER - special

1шт.

27

152510A1

GASKET

- adapter

1шт.

28

153063A1

GOVERNOR

air line

1шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

31

152748A1

ADAPTER

straight, special

1шт.

32

157971A1

HOSE

110-1/4 inch (2800 mm) long reservoir pressurizing line

1шт.

29

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

33

150782A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 98-7/16 inch (2500 mm) long

1шт.

34

152749A1

ADAPTER

ELBOW - special 90 degree

1шт.

49

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

35

152845A1

VALVE

ASSEMBLY - pressure reducing parts list figure 8-150

1шт.

36

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

37

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

38

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

39

152946A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

40

163106A1

PLASTIC-RUBBER TUBE,7 mm ID, 9.5 mm OD

TUBE - reservoir pressurizing line

1шт.

41

152948A1

ELBOW

ASSEMBLY - compression

1шт.

42

150914A1

SOCKET

FITTING - straight

1шт.

43

152460A1

VALVE

check

1шт.

44

153065A1

SOCKET

ADAPTER - special

1шт.

45

152510A1

GASKET

adapter

1шт.

46

163253A1

HYDRAULIC HOSE,6.30 mm ID x 3100.00 mm

- Compressor unloading signal line 6.30 mm ID x 3100.00 mm

1шт.

47

163254A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 114-3/16 inch (2900) long

1шт.

48

163259A1

CLAMP

support

1шт.

50

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

51

150071A1

MOUNTING CLIP

STRAP - tie

1шт.
