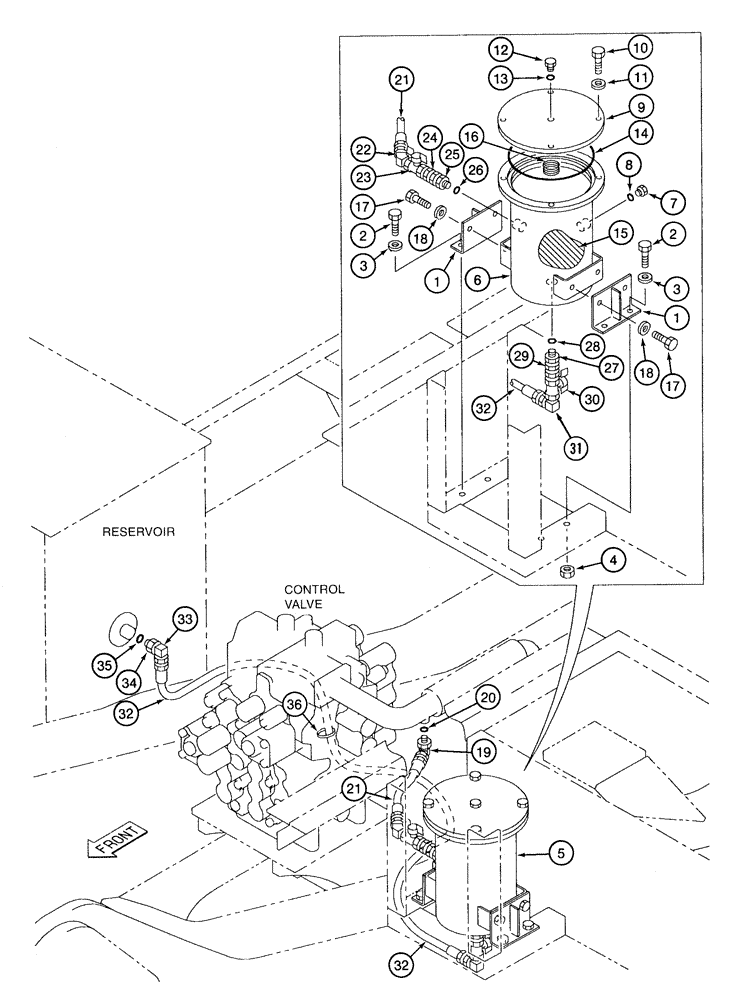

Запчасти Case 9050B (8-018) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS

1

159286A1

BRACKET

mounting

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - bypass oil, Includes: Ref. 6 - 16

1шт.

6

159281A1

BODY

HOUSING - bypass filter

1шт.

7

159002A1

PLUG

hydraulic port, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

9

159283A1

COVER

bypass filter

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

11

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

12

159285A1

PLUG

port, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

plug

1шт.

14

154859A1

O-RING

bypass filter

1шт.

15

159282A1

HYDRAULIC OIL FILTER

ELEMENT - filter bypass

1шт.

16

159837A1

SPRING

compression

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

18

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

21

156735A1

HOSE,6.3 mm ID x 350.00 mm

13-3/4 inch (350 mm) long filter inlet line

1шт.

22

153599A1

ADAPTER

ELBOW - special 45 degree

1шт.

23

158923A1

DRAIN VALVE

line shut-off

1шт.

24

153601A1

ADAPTER

straight, special

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

29

153601A1

ADAPTER

straight, special

1шт.

30

158923A1

DRAIN VALVE

line shut-off

1шт.

31

153596A1

ADAPTER

ELBOW - 90 degree, special

1шт.

32

150966A1

HOSE ASSY.

78-3/4 inch (2000 mm) long filter discharge line

1шт.

33

153596A1

ADAPTER

ELBOW - 90 degree, special

1шт.

34

160356A1

SOCKET

BUSHING - threaded, Includes: Ref. 35

1шт.

35

154487A1

O-RING

bushing

1шт.

36

150498A1

MOUNTING CLIP

tie

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
