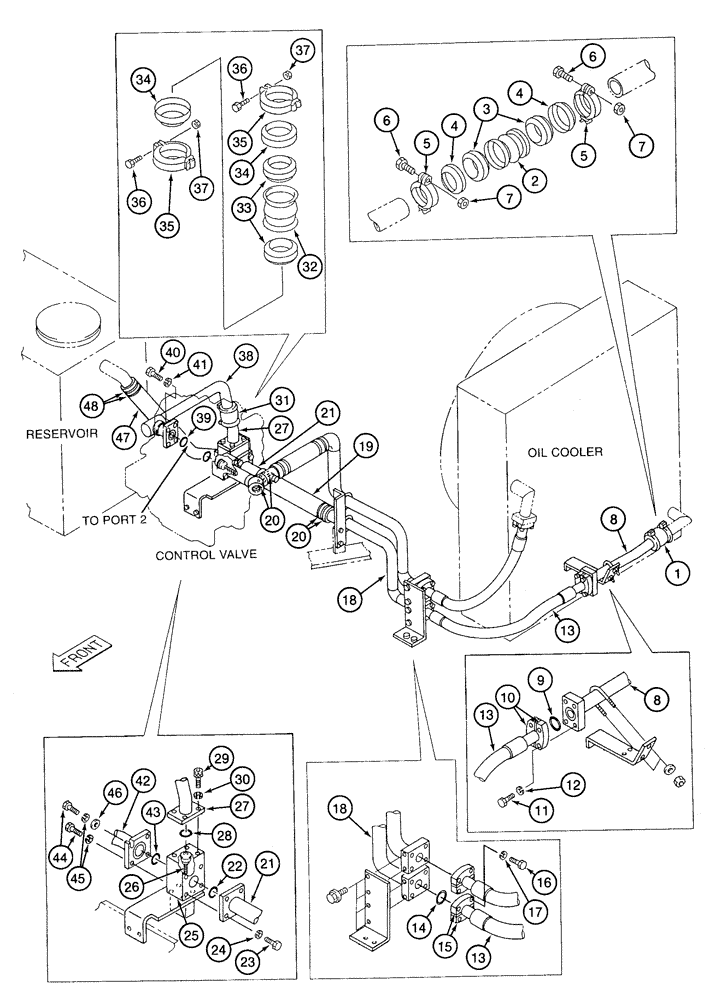

Запчасти Case 9050B (8-016) - OIL COOLER RECIRCULATING AND RETURN LINES (08) - HYDRAULICS

1

162349A1

TUBE

COUPLING ASSEMBLY - special, Includes: Ref. 2 - 7

1шт.

2

162350A1

SLEEVE

special

1шт.

3

162353A1

GASKET

GASKET - coupling

2шт.

4

162352A1

RETAINER

- coupling gasket

2шт.

5

162351A1

TUBE

CLAMP - coupling

2шт.

6

159835A1

BOLT

special

2шт.

7

159836A1

SPECIAL NUT

special

2шт.

8

162343A1

TUBE ASSY.,41.6 mm ID, 48.6 mm OD

HOSE - 15-3/4 inch (400 mm) long oil cooler, oil cooler return line (oil cooler to intermediate hose)

1шт.

9

162484A1

O-RING

tube

1шт.

10

162338A1

SHIN

FLANGE - split

2шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

12

892-11012

LOCK WASHER,M12

4шт.

13

162339A1

HYDRAULIC HOSE,38.10 mm ID x 780.00 mm

- Intermediate, Oil cooler return line (Oil cooler hose to intermediate tube) 38.10 mm ID x 780.00 mm

1шт.

14

162484A1

O-RING

tube

1шт.

15

162338A1

SHIN

FLANGE - split

2шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

18

163414A1

TUBE ASSY.,41.6 mm ID, 48.6 mm OD

oil cooler return line, intermediate (intermediate hose to intermediate hose)

1шт.

19

163415A1

HYDRAULIC HOSE,48.50 mm ID x 390.00 mm

- Intermediate, Oil cooler return line (Intermediate tube to manifold tube) 48.50 mm ID x 390.00 mm

1шт.

20

150890A1

CLIP,ELECTRICAL

CLAMP - adjustable

4шт.

21

163411A1

TUBE ASSY.,41.6 mm ID, 48.6 mm OD

manifold, oil cooler return line (intermediate hose to manifold)

1шт.

22

154667A1

O-RING

tube

1шт.

23

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

hex, full threads 14 - 2.0 x 35 mm, class 10.9

4шт.

24

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, M14

4шт.

25

163413A1

MANIFOLD

hydraulic oil cooler return line

1шт.

26

159054A1

VALVE

check

1шт.

27

163408A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

manifold, recirculating line (manifold to control valve tube)

1шт.

28

154623A1

O-RING

tube

1шт.

29

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

SCREW, Hex Soc Hd, M12 x 35, 12.9

4шт.

30

112312A1

LOCK WASHER

lock 12 mm

4шт.

31

159051A1

TUBE

COUPLING ASSEMBLY - special, Includes: Ref. 32 - 37

1шт.

32

159831A1

SLEEVE

special

1шт.

33

159834A1

GASKET

GASKET - coupling

2шт.

34

159833A1

RETAINER

- coupling gasket

2шт.

35

159832A1

SHAFT

CLAMP - coupling

2шт.

36

159835A1

BOLT

special

2шт.

37

159836A1

SPECIAL NUT

special

2шт.

38

163407A1

TUBE ASSY.,34.7 mm ID, 42.7 mm OD

control valve, recirculating line (manifold tube to control valve)

1шт.

39

154607A1

O-RING

tube

1шт.

40

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

41

892-11010

LOCK WASHER,M10

4шт.

42

163412A1

TUBE ASSY.,41.6 mm ID, 48.6 mm OD

manifold, reservoir return line (manifold to reservoir hose)

1шт.

43

154667A1

O-RING

tube

1шт.

44

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

hex, full threads 14 - 2.0 x 35 mm, class 10.9

4шт.

45

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, M14

4шт.

46

150418A1

WASHER

flat

1шт.

47

162348A1

HOSE,48.5mm ID x 310mm L

reservoir return line (manifold tube to reservoir) 48.50 mm ID x 310.00 mm

1шт.

48

150890A1

CLIP,ELECTRICAL

CLAMP - adjustable

4шт.
