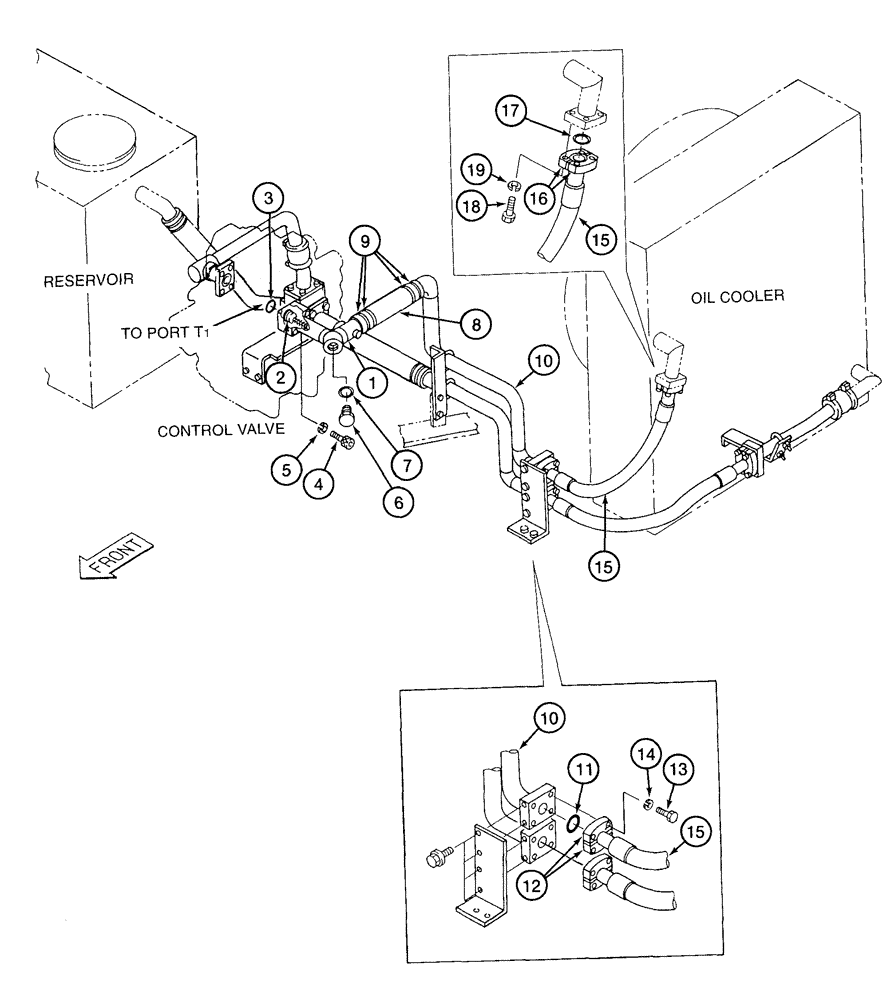

Запчасти Case 9050B (8-014) - OIL COOLER SUPPLY LINE (08) - HYDRAULICS

1

163410A1

TUBE,41.6 mm ID, 48.6 mm OD

(control valve to intermediate hose)

1шт.

2

163417A1

VALVE

check

1шт.

3

154623A1

O-RING

check valve

1шт.

4

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

hex socket 10 - 1.5 x 65 mm, class 12.9

4шт.

5

112309A1

LOCK WASHER

lock, special

4шт.

6

162335A1

PLUG

port

1шт.

7

154559A1

O-RING

plug

1шт.

8

163416A1

HYDRAULIC HOSE,48.50 mm ID x 270.00 mm

- Intermediate (From tube at control valve to intermediate tube) 48.50 mm ID x 270.00 mm

1шт.

9

150890A1

CLIP,ELECTRICAL

adjustable

4шт.

10

163409A1

TUBE ASSY.,41.6 mm ID, 48.6 mm OD

flat, special 10.5 x 21 x 3.2 mm

1шт.

11

162484A1

O-RING

tube

1шт.

12

162338A1

SHIN

FLANGE - split

2шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

15

162339A1

HYDRAULIC HOSE,38.10 mm ID x 780.00 mm

- Oil cooler (From intermediate tube to oil cooler) 38.10 mm ID x 780.00 mm

1шт.

16

162338A1

SHIN

FLANGE - split

2шт.

17

162484A1

O-RING

tube

1шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.
