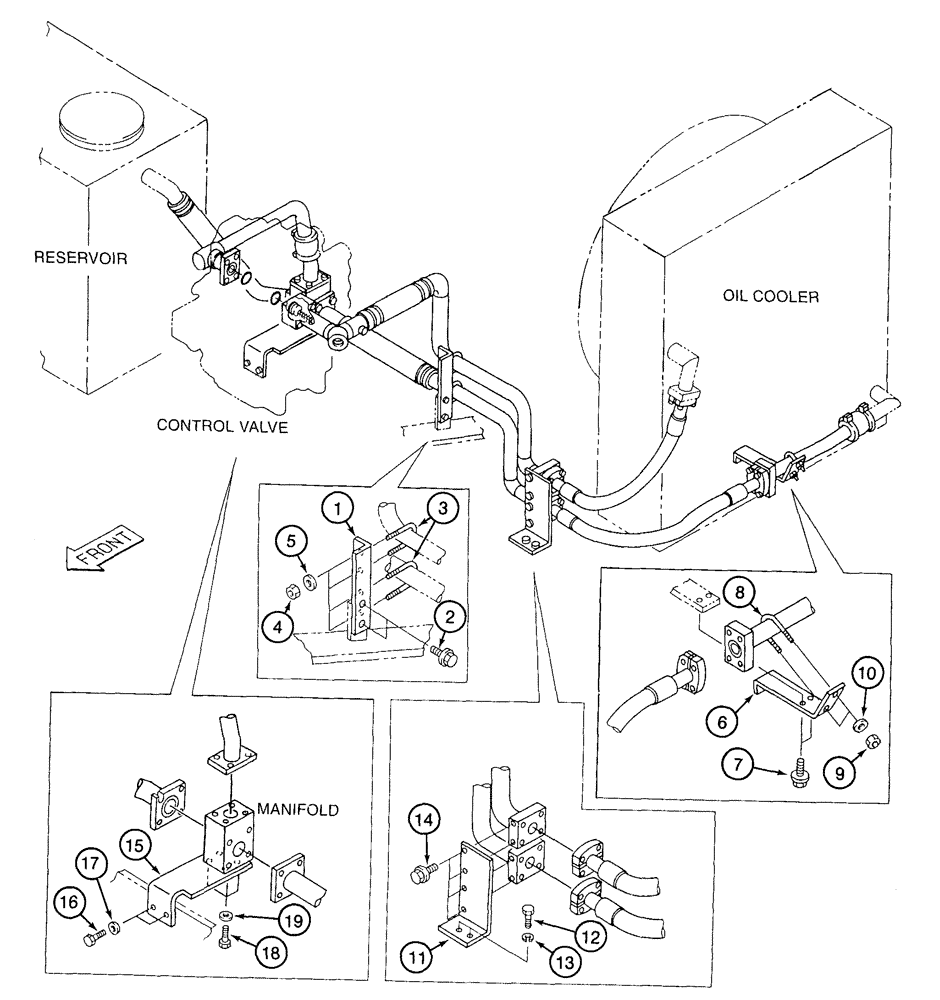

Запчасти Case 9050B (8-012) - COOLING SYSTEM HOSE SUPPORTS (08) - HYDRAULICS

1

162341A1

BRACKET

support

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

3

152067A1

U-BOLT,M10 x 62mm W x 74mm L

special

2шт.

5

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

6

162346A1

BRACKET

mounting

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

8

152067A1

U-BOLT,M10 x 62mm W x 74mm L

tube mounting

1шт.

10

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

11

162345A1

BRACKET

support

1шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

15

163064A1

BRACKET

mounting

1шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

17

150811A1

WASHER

flat, special 12 mm

2шт.

18

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 35 mm, class 10.9

2шт.

19

150811A1

WASHER

flat, special 12 mm

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
