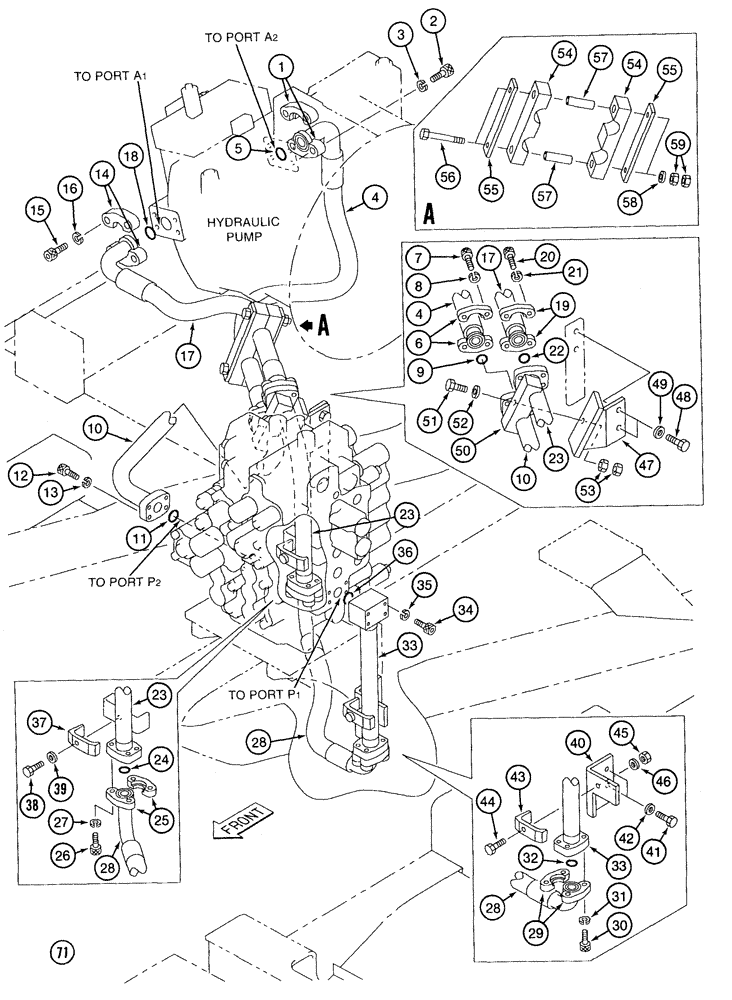

Запчасти Case 9050B (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

150124A1

FLANGE

split

2шт.

2

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, , Special M14

4шт.

4

162313A1

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

- Valve supply line, 5-spool side (Pump port "A2" to tube) 25.40 mm ID x 1550.00 mm

1шт.

5

153626A1

O-RING

hose

1шт.

6

153459A1

FLANGE

split

2шт.

7

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

hex socket 10 - 1.5 x 35 mm, class 12.9

4шт.

8

112309A1

LOCK WASHER

lock, special

4шт.

9

162246A1

O-RING

hose

1шт.

10

162317A1

TUBE ASSY.,26 mm ID, 34 mm OD

valve supply line, 5-spool side (hose to control valve port "P2")

1шт.

11

154548A1

O-RING

tube

1шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

13

112309A1

LOCK WASHER

lock, special

4шт.

14

150124A1

FLANGE

split

2шт.

15

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

4шт.

16

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER, LOCK, , Special M14

4шт.

17

162312A1

HYDRAULIC HOSE,25.40 mm ID x 830.00 mm

- Valve supply line, 4-spool side (Pump port "A1" to tube at pump end) 25.40 mm ID x 830.00 mm

1шт.

18

153626A1

O-RING

hose

1шт.

19

153459A1

FLANGE

split

2шт.

20

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 45 mm, class 12.9

4шт.

21

112309A1

LOCK WASHER

lock, special

4шт.

22

162246A1

O-RING

hose

1шт.

23

162316A1

TUBE ASSY.,26 mm ID, 34 mm OD

valve supply line, 4-spool side (hose at pump end to hose at control valve end)

1шт.

24

162246A1

O-RING

hose

1шт.

25

153459A1

FLANGE

split

2шт.

26

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 45 mm, class 12.9

4шт.

27

112309A1

LOCK WASHER

lock, special

4шт.

28

162310A1

HYDRAULIC HOSE,25.40 mm ID x 470.00 mm

- Valve supply line, 4-spool side (Tube at pump end to tube at valve end) 25.40 mm ID x 470.00 mm

1шт.

29

153459A1

FLANGE

split

2шт.

30

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 45 mm, class 12.9

4шт.

31

112309A1

LOCK WASHER

lock, special

4шт.

32

162246A1

O-RING

hose

1шт.

33

162315A1

TUBE ASSY.,26 mm ID, 34 mm OD

valve supply line, 4-spool side (hose at valve end to control valve port "P1")

1шт.

34

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

hex socket 10 - 1.5 x 65 mm, class 12.9

4шт.

35

112309A1

LOCK WASHER

lock, special

4шт.

36

154548A1

O-RING

tube

1шт.

37

152974A1

COLLAR

tube

1шт.

38

150811A1

WASHER

flat, special 12 mm special

1шт.

39

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex socket 12 - 1.75 x 70 mm, class 10.9

1шт.

40

162309A1

BRACKET

mounting

1шт.

41

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 35 mm, class 10.9

2шт.

42

150811A1

WASHER

flat, special 12 mm special

2шт.

43

162311A1

BRACKET

CLAMP - tube

1шт.

44

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex socket 12 - 1.75 x 70 mm, class 10.9

1шт.

45

829-1412

NUT,M12, Cl 10.9

1шт.

46

150811A1

WASHER

flat, special 12 mm special

1шт.

47

162311A1

BRACKET

mounting

1шт.

48

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads 12 - 1.75 x 35 mm, class 10.9

2шт.

49

150811A1

WASHER

flat, special 12 mm special

2шт.

50

162308A1

COLLAR

tube

1шт.

51

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex 12 - 1.75 x 90 mm, class 10.9

1шт.

52

150811A1

WASHER

flat, special 12 mm special

1шт.

53

829-1412

NUT,M12, Cl 10.9

2шт.

54

152987A1

COLLAR

hose

2шт.

55

152888A1

PLATE, SPACER

hose clamp

2шт.

56

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

2шт.

57

152895A1

SPACER

clamp

2шт.

58

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

59

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.
