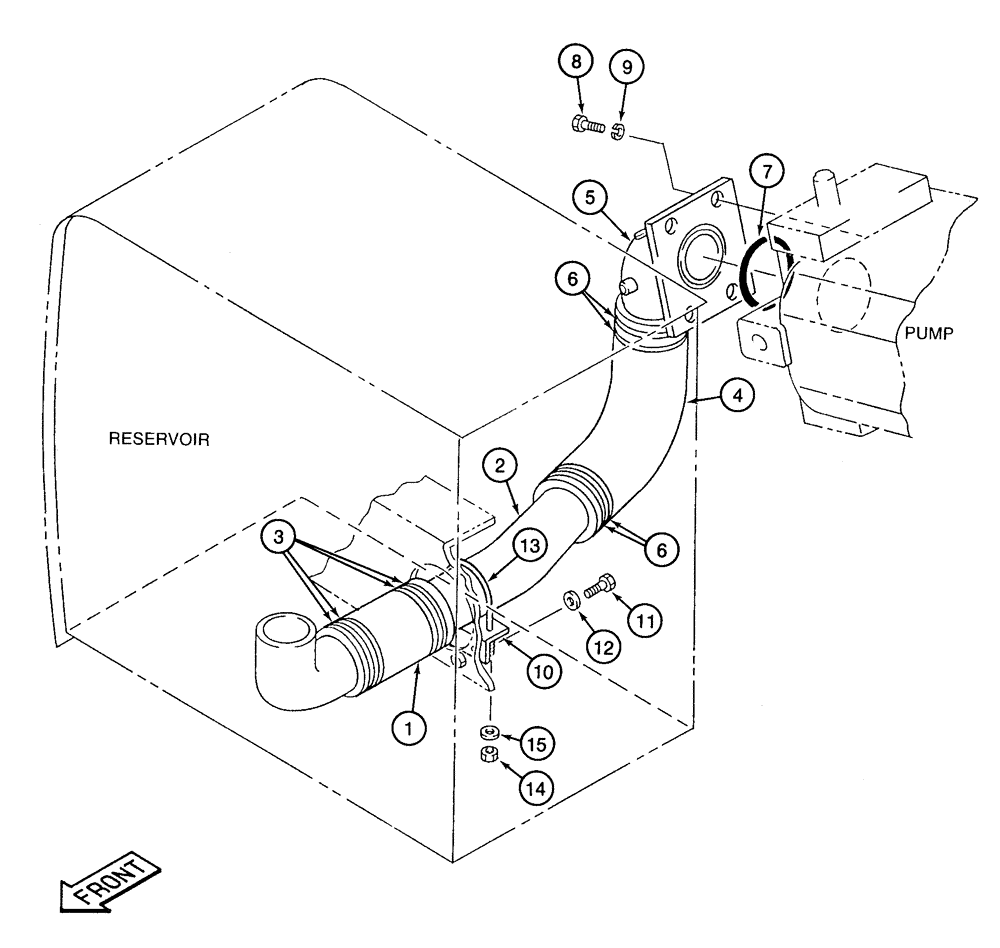

Запчасти Case 9050B (8-006) - RESERVOIR TO PUMP SUCTION LINE (08) - HYDRAULICS

1

152375A1

HOSE,88.90 mm ID x 200.00 mm

- Reservoir end 88.90 mm ID x 200.00 mm

1шт.

2

162306A1

TUBE,80.7 mm ID, 89.1 mm OD

center section of line

1шт.

3

150905A1

CLAMP

hose

4шт.

4

162304A1

HOSE,235.00 mm

pump end 235.00 mm

1шт.

5

162305A1

TUBE,80.7 mm ID, 89.1 mm OD

FITTING - flanged pump connection

1шт.

6

150905A1

CLAMP

hose

4шт.

7

154787A1

O-RING

fitting

1шт.

8

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

4шт.

10

162307A1

BRACKET

support

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

12

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

13

152074A1

U-BOLT,M12 x 104mm W x 120mm L

special U-type

1шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

15

150811A1

WASHER

flat, special 12 mm

2шт.
