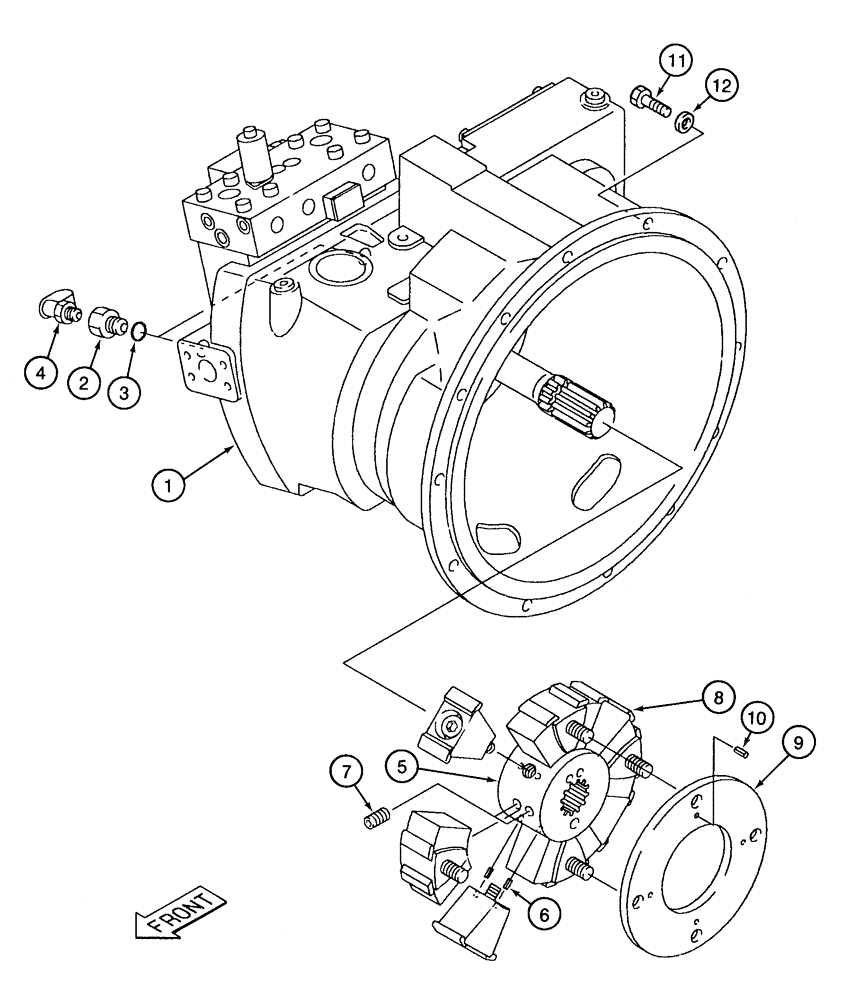

Запчасти Case 9050B (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

162099A1

PUMP, HYDRAULIC

See Figures 08-118 - 08-119F

1шт.

2

151136A1

BUSHING

ADAPTER - straight, special

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

2шт.

4

150290A1

PLUG

oil, special

2шт.

5

153029A1

HUB

coupling

1шт.

6

738-1816

LOCK PIN,M8 x 16, Slotted

8шт.

7

877-52030

SET SCREW,Hex Skt, M20 x 30mm, Dog Pt

2шт.

8

153028A1

COUPLING

ASSEMBLY - pump component parts not serviced separately

1шт.

9

153335A1

FLANGE

PLATE - coupling

1шт.

10

738-1816

LOCK PIN,M8 x 16, Slotted

4шт.

11

153268A1

BOLT,Spcl, Hex, M10 x 40mm

hex, special special

12шт.

12

150811A1

WASHER

flat, special 12 mm

12шт.
