Запчасти Case 9050B (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

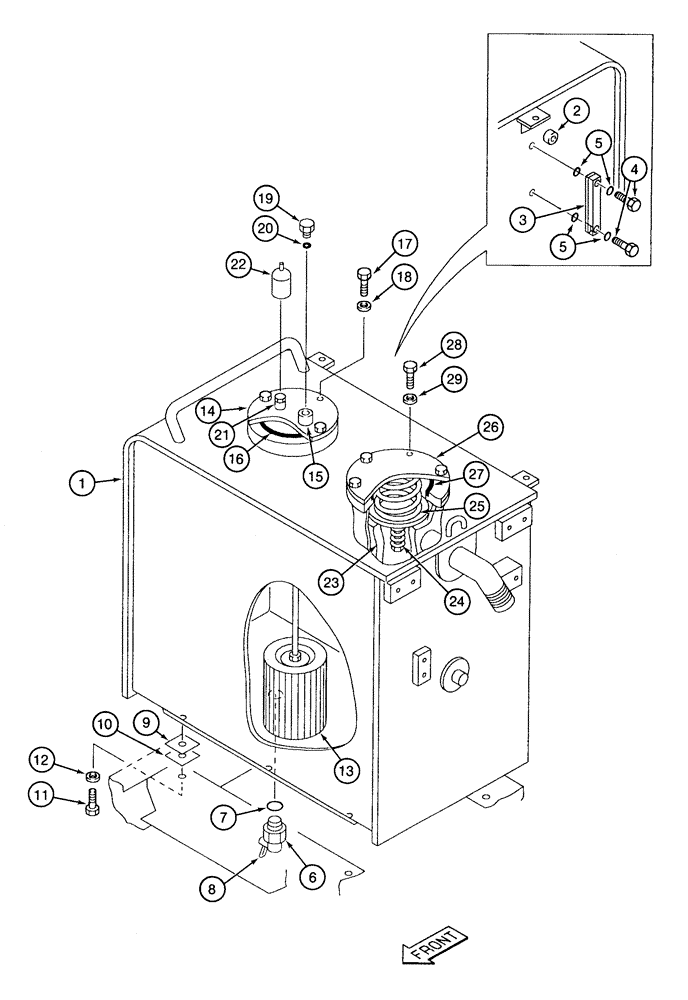

Схема запчастей Case 9050B - (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS
10
26
2
5
5
28
12
18
15
19
20
25
8
6
7
17
9
13
1
24
14
27
4
29
3
21
23
16
22
11

Артикул

Название

Примечание

Количество

1

162591A1

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil

1шт.

2

152723A1

PRESSURE SWITCH

1шт.

3

159491A1

GAUGE

ASSEMBLY - sight oil level, component parts not serviced separately, Includes: Ref. 4 and 5

1шт.

4

159492A1

BOLT

special

2шт.

5

159493A1

SEALING WASHER

4шт.

6

159279A1

SOCKET

REDUCER - reservoir

1шт.

7

154503A1

O-RING

reducer

1шт.

8

150962A1

COCK, DRAIN

VALVE

1шт.

9

150166A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

10

150479A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

11

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

12

153357A1

SPACER

flat

6шт.

13

152721A1

FUEL FILTER

hydraulic oil

1шт.

14

162303A1

COVER

air breather, Includes: Ref. 15

1шт.

15

152931A1

FITTING

ADAPTER - straight, special

1шт.

16

154835A1

O-RING

air breather cover

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

4шт.

19

152800A1

PLUG

hydraulic, Includes: Ref. 20

1шт.

20

154487A1

O-RING

plug

1шт.

21

152927A1

VALVE

BREATHER - hydraulic reservoir; Not Illustrated

1шт.

22

152936A1

CAP

rubber breather

1шт.

23

153344A1

HYDRAULIC OIL FILTER

return

1шт.

24

153037A1

VALVE

relief

1шт.

25

153343A1

SPRING

compression

1шт.

26

153340A1

COVER

return filter

1шт.

27

154875A1

O-RING

cover

1шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

6шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

6шт.

Выбрано товаров: 29
