(6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS

Запчасти Case 9050B (6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

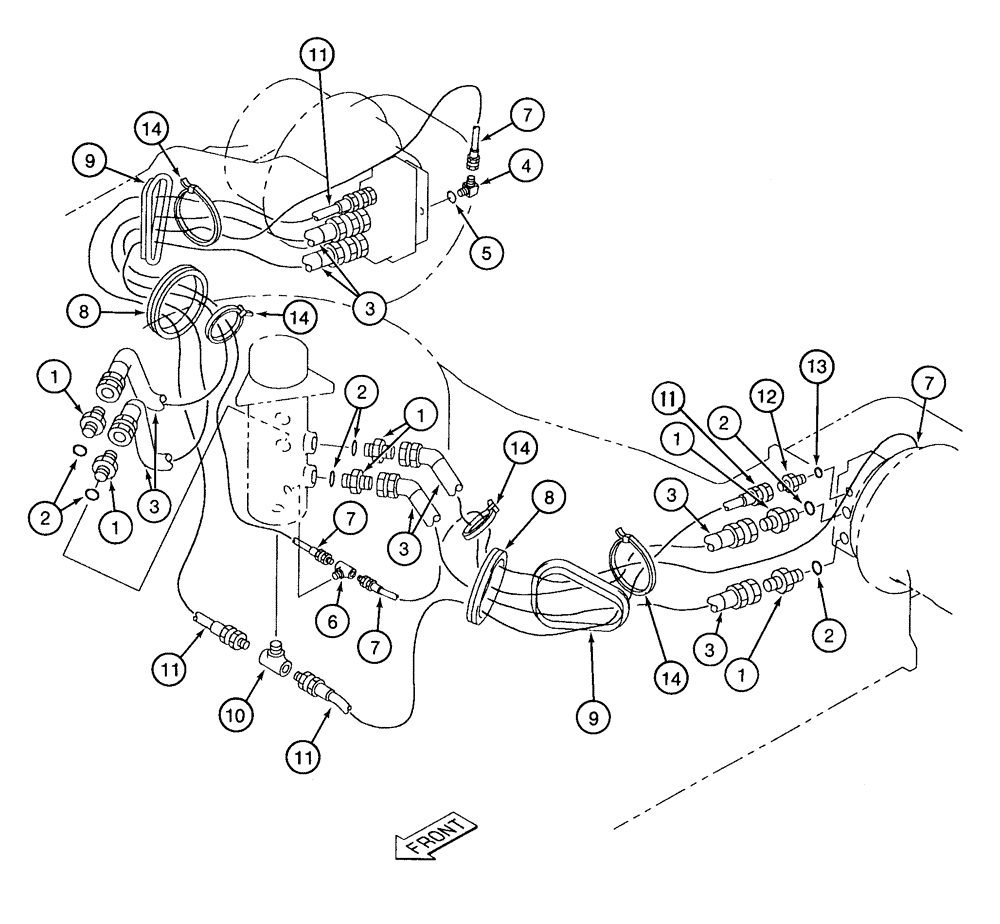

Схема запчастей Case 9050B - (6-12) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN
4
1
11
3
13
3
14
1
2
1
9
8
1
11
6
9
7
5
7
8
14
14
7
7
14
10
1
2
11
11
3
2
3
2
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

straight at swivel, Includes: Ref. 2

8шт.

2

154523A1

O-RING

adapter

8шт.

3

151914A1

HOSE ASSY.

91-3/4 inch (2330 mm) long

4шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

2шт.

6

162276A1

TEE

special

1шт.

7

157996A1

HOSE,6.3mm ID x 2750mm L

110 inch (2750 mm) long

2шт.

8

159398A1

RUBBER BLOCK

GUARD - hose

2шт.

9

159658A1

REDUCER

GUARD - hose

2шт.

10

152195A1

TEE

special in bottom of swival

1шт.

11

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

HYDRAULIC HOSE 12.70 mm ID x 2360.00 mm

2шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

straight, Includes: Ref. 13

2шт.

13

154487A1

O-RING

adapter

2шт.

14

150071A1

MOUNTING CLIP

STRAP - tie

4шт.
