Запчасти Case 9050B (6-08) - TRACK DRIVE MOTOR ASSEMBLY (06) - POWER TRAIN

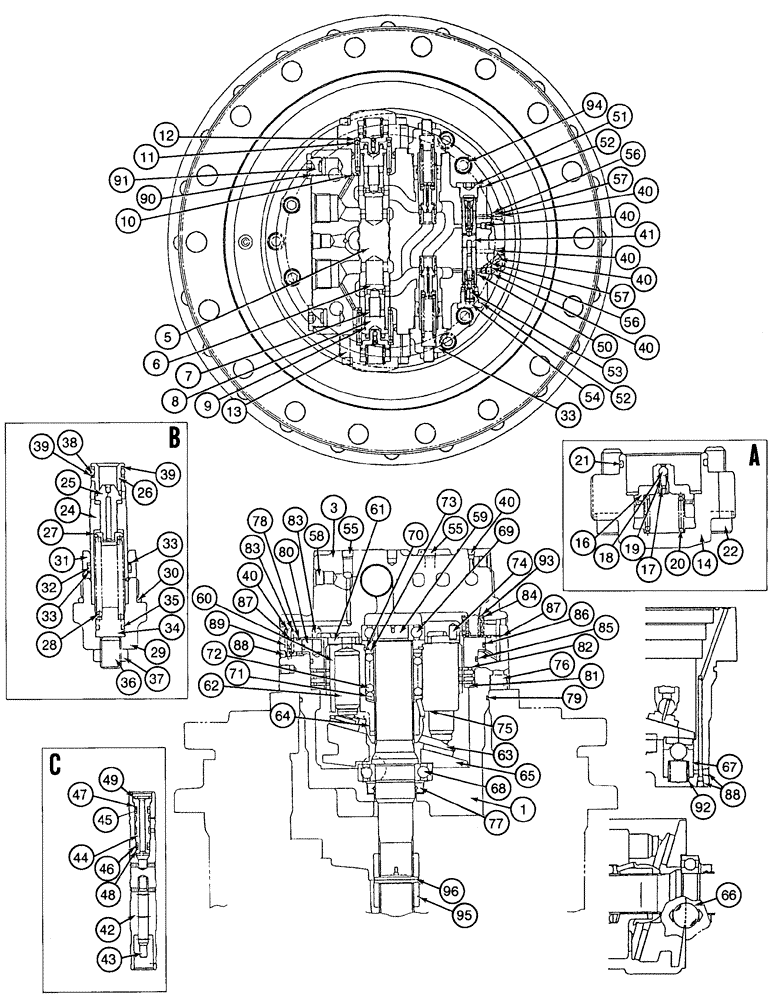

Схема запчастей Case 9050B - (6-08) - TRACK DRIVE MOTOR ASSEMBLY (06) - POWER TRAIN
18
76
40
69
65
75
94
57
40
52
35
90
52
80
46
73
34
63
79
44
59
61
53
38
58
85
33
31
10
6
60
40
39
22
83
24
45
47
77
66
11
93
37
70
27
67
56
8
68
42
30
17
19
28
50
54
82
7
40
56
14
91
64
33
83
43
40
1
74
87
29
20
55
72
3
40
33
95
6
21
57
49
62
88
5
51
92
96
36
48
89
71
84
88
12
41
16
87
26
32
9
25
81
13
39
86
40
78

Артикул

Название

Примечание

Количество

162110A1

MOTOR, HYDRAULIC

ASSEMBLY - track drive, Includes: Ref. 1 - 96

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - track drive motor

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - base, Includes: Ref. 3 - 58

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - base

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - base plate, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - base plate

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - compression type

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - plunger

2шт.

9

154495A1

O-RING

plug

2шт.

10

156110A1

SPRING SEAT

2шт.

11

160261A1

SPRING

compression type

2шт.

12

160202A1

SPRING SEAT

2шт.

13

163382A1

CAP

ASSEMBLY - special base plate, see illustration "A", Includes: Ref. 14 - 58

2шт.

14

NSS

NOT SOLD SEPARAT

CAP - base plate

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - cap, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - cap

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

18

NSS

NOT SOLD SEPARAT

BALL - steel

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - compression type

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - compression type

1шт.

21

154589A1

O-RING

seal

1шт.

22

863-12040

BOLT - hex socket 12 - 1.75 x 40 mm, class 12.9

BOLT

4шт.

23

163383A1

VALVE

ASSEMBLY - relief see illustration "B", Includes: Ref. 24 - 39

2шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - compression type

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

30

155225A1

O-RING

plug

1шт.

31

NSS

NOT SOLD SEPARAT

PISTON - free

1шт.

32

154495A1

O-RING

piston

1шт.

33

153977A1

BACK-UP RING

2шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

35

155063A1

O-RING

plug

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW - set type

1шт.

37

NSS

NOT SOLD SEPARAT

NUT - special

1шт.

38

154479A1

O-RING

1шт.

39

153964A1

BACK-UP RING

2шт.

40

155479A1

PLUG

port

10шт.

41

NSS

NOT SOLD SEPARAT

VALVE - see illustration "C", Includes: Ref. 42 - 48

1шт.

42

NSS

NOT SOLD SEPARAT

SPOOL - A

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL - C

1шт.

44

160197A1

FILTER

valve

1шт.

45

154447A1

O-RING

spool

1шт.

46

154443A1

O-RING

spool

1шт.

47

153940A1

BACK-UP RING

1шт.

48

153937A1

BACK-UP RING

1шт.

49

160545A1

RING, SNAP

1шт.

50

160265A1

SPRING

compression type

1шт.

51

155483A1

PLUG

port

1шт.

52

154487A1

O-RING

plug

2шт.

53

160260A1

COLLAR

GUIDE - spring

1шт.

54

160536A1

PLUG

port

1шт.

55

151026A1

PLUG

hex socket, special

3шт.

56

NSS

NOT SOLD SEPARAT

ORIFICE - plate

2шт.

57

NSS

NOT SOLD SEPARAT

ORIFICE - plate

2шт.

58

151030A1

PLUG

port

1шт.

59

NSS

NOT SOLD SEPARAT

SHAFT - drive motor

1шт.

60

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

61

160330A1

PORT

PLATE - base

1шт.

62

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

63

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

64

NSS

NOT SOLD SEPARAT

HOLDER - retainer

1шт.

65

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

66

155950A1

BALL

steel

2шт.

67

NSS

NOT SOLD SEPARAT

PISTON - special

2шт.

68

160597A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

69

160398A1

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

captive roller

1шт.

70

160103A1

RING, SNAP

special

1шт.

71

160203A1

SPRING SEAT

1шт.

72

160590A1

SPRING

cylinder block

1шт.

73

158113A1

COLLAR

spring seat

1шт.

74

155578A1

PIN

dowel

1шт.

75

155631A1

COTTER PIN

retainer

3шт.

76

160292A1

BOLT,M12 x 1.75 x 60mm

special 12 - 1.75 x 60 mm

13шт.

77

159955A1

OIL SEAL

oil

1шт.

78

155200A1

O-RING

sealing

1шт.

79

159986A1

O-RING

housing

1шт.

80

160200A1

PISTON

brake

1шт.

81

156326A1

PLATE

separator

3шт.

82

160610A1

DISC

PLATE - friction

3шт.

83

160097A1

COTTER PIN

dowel

4шт.

84

160591A1

SPRING

compression type

8шт.

85

159956A1

SEAL,184.2mm ID x 191.5mm OD x 5mm Thk

D-RING - sealing

1шт.

86

160498A1

SEAL,201.4mm ID x 208.4mm OD x 5mm Thk

D-RING - sealing

1шт.

87

154451A1

O-RING

sealing

4шт.

88

155479A1

PLUG

port

5шт.

89

NSS

NOT SOLD SEPARAT

ORIFICE - drilled

1шт.

90

154487A1

O-RING

sealing

2шт.

91

155483A1

PLUG

port

2шт.

92

160592A1

SPRING

piston

2шт.

93

160266A1

SPRING

compression

8шт.

94

863-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket 12 - 1.75 x 90 mm, class 12.9

4шт.

95

155257A1

COUPLING

shaft

1шт.

96

160110A1

COIL SPRING

PIN - roll, special

1шт.

Выбрано товаров: 97
