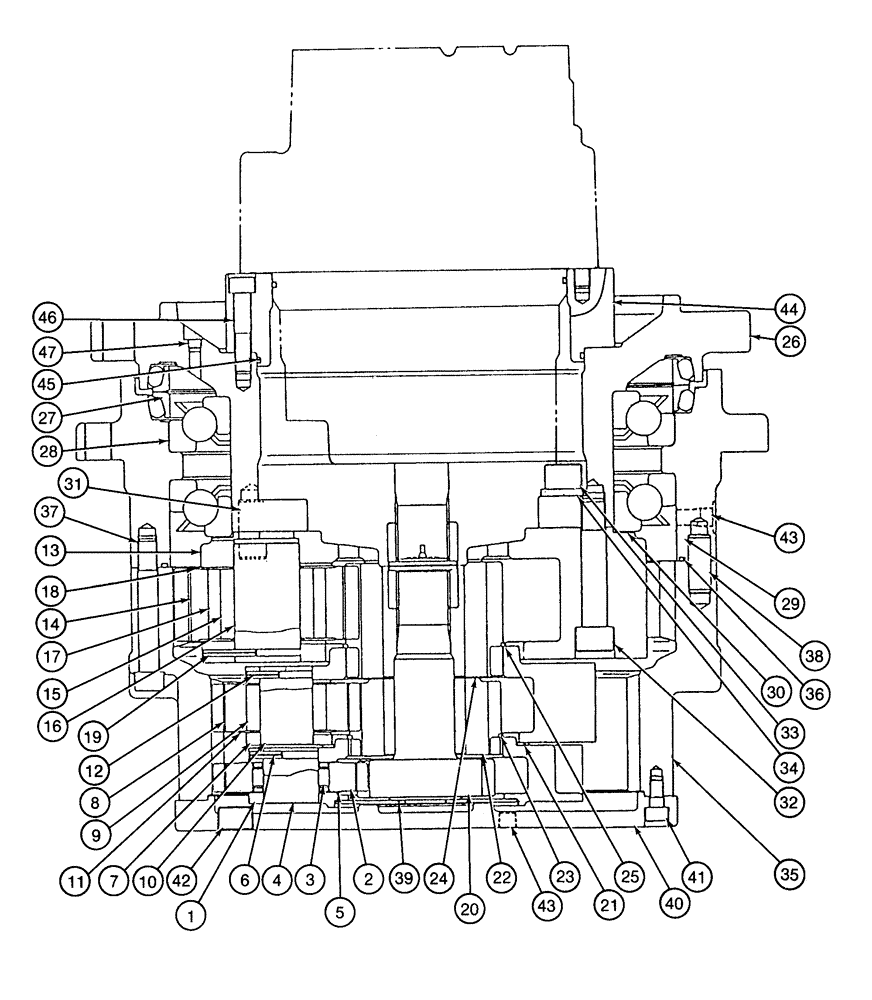

Запчасти Case 9050B (6-04) - FINAL DRIVE TRANSMISSION ASSEMBLY (06) - POWER TRAIN

162111A1

REDUCER

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 47

1шт.

155806A1

GEAR WHEEL

CARRIER ASSEMBLY - planetyary gear A, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - gears, A

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - planetary, A

3шт.

3

NSS

NOT SOLD SEPARAT

BEARING needle

3шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - gear, A

3шт.

5

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

6

738-1525

LOCK PIN,M5 x 25, Slotted

roll, 5 x 25 mm

3шт.

155801A1

GEAR WHEEL

CARRIER ASSEMBLY - planetary gear B, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - gears, B

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - planetary, B

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - carrier

45шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - gear, B

3шт.

11

NSS

NOT SOLD SEPARAT

WASHER - thrust

6шт.

12

738-1525

LOCK PIN,M5 x 25, Slotted

roll, 5 x 25 mm

3шт.

155802A1

GEAR WHEEL

CARRIER ASSEMBLY - planetary gear C, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - gears, C

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - planetary, C

4шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - carrier

72шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - gear, C

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - floating

4шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust

8шт.

19

738-1525

LOCK PIN,M5 x 25, Slotted

roll, 5 x 25 mm

4шт.

20

155277A1

PINION

GEAR - drive

1шт.

21

155391A1

PLATE, THRUST

1шт.

22

155278A1

SUN GEAR

1шт.

23

155657A1

RING, SNAP

1шт.

24

155279A1

SUN GEAR

1шт.

25

155643A1

RING, SNAP

1шт.

26

FLANGE - transmission

1шт.

27

155298A1

SEAL

face

1шт.

28

156120A1

BEARING, BALL,280mm ID x 370mm OD x 40mm W

2шт.

29

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

30

155659A1

SHIM

KIT

1шт.

31

155658A1

COTTER PIN

special

4шт.

32

156194A1

BOLT,Hex Skt, M18 x 2.5 x 90mm

hex socket 18 - 2.5 x 90 mm

4шт.

33

150807A1

BOLT,Hex Skt, M18 x 2.5 x 50mm

hex socket 18 - 2.5 x 50 mm

16шт.

34

156337A1

PLATE, SPACER

lock

4шт.

35

155280A1

PINION

GEAR - ring

1шт.

36

155181A1

O-RING

ring gear

1шт.

37

156200A1

BOLT,M14 x 95mm

hex socket 14 - 2.0 x 95 mm

24шт.

38

155647A1

COTTER PIN

dowel

3шт.

39

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

40

156335A1

COVER

end

1шт.

41

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket 10 - 1.5 x 20 mm, class 12.9

16шт.

42

151035A1

PLUG

pipe 3/4 dia.

2шт.

43

151026A1

PLUG

hex socket, 1/4 dia.

2шт.

44

NSS

NOT SOLD SEPARAT

SPACER - transmission1

1шт.

45

155182A1

O-RING

spacer

3шт.

46

160292A1

BOLT,M12 x 1.75 x 60mm

special 12 - 1.75 x 60 mm

1шт.

47

163367A1

PLUG

special

1шт.
