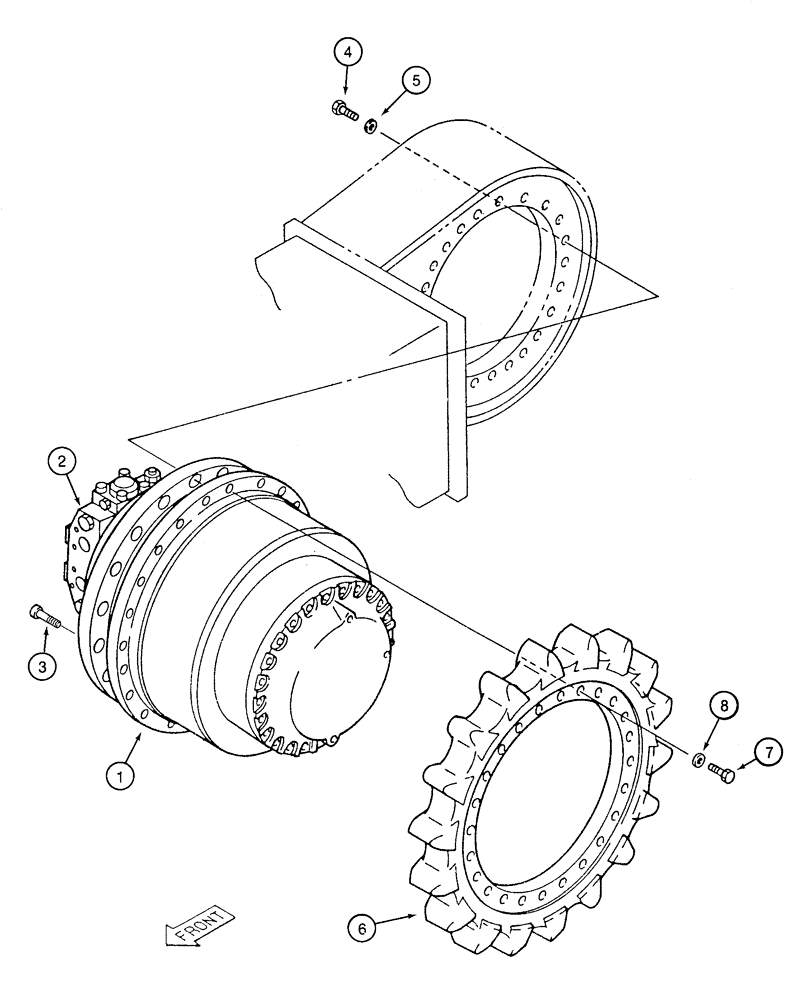

Запчасти Case 9050B (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

162165A1

MOTOR

ASSEMBLY - track drive, Includes: Ref. 1 - 3

2шт.

1

162111A1

REDUCER

TRANSMISSION ASSEMBLY - final drive without track drive motor, see figure 6-4 and 6-6

1шт.

2

162110A1

MOTOR, HYDRAULIC

ASSEMBLY - track drive see figure 6-8 and 6-10

1шт.

3

863-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

BOLT - hex socket 12 - 1.75 x 80 mm, class 12.9

3шт.

4

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

36шт.

5

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

flat, special

36шт.

6

151758A1

SPROCKET ASSY.

track drive

2шт.

7

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

48шт.

8

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

flat, special 20 mm

48шт.
