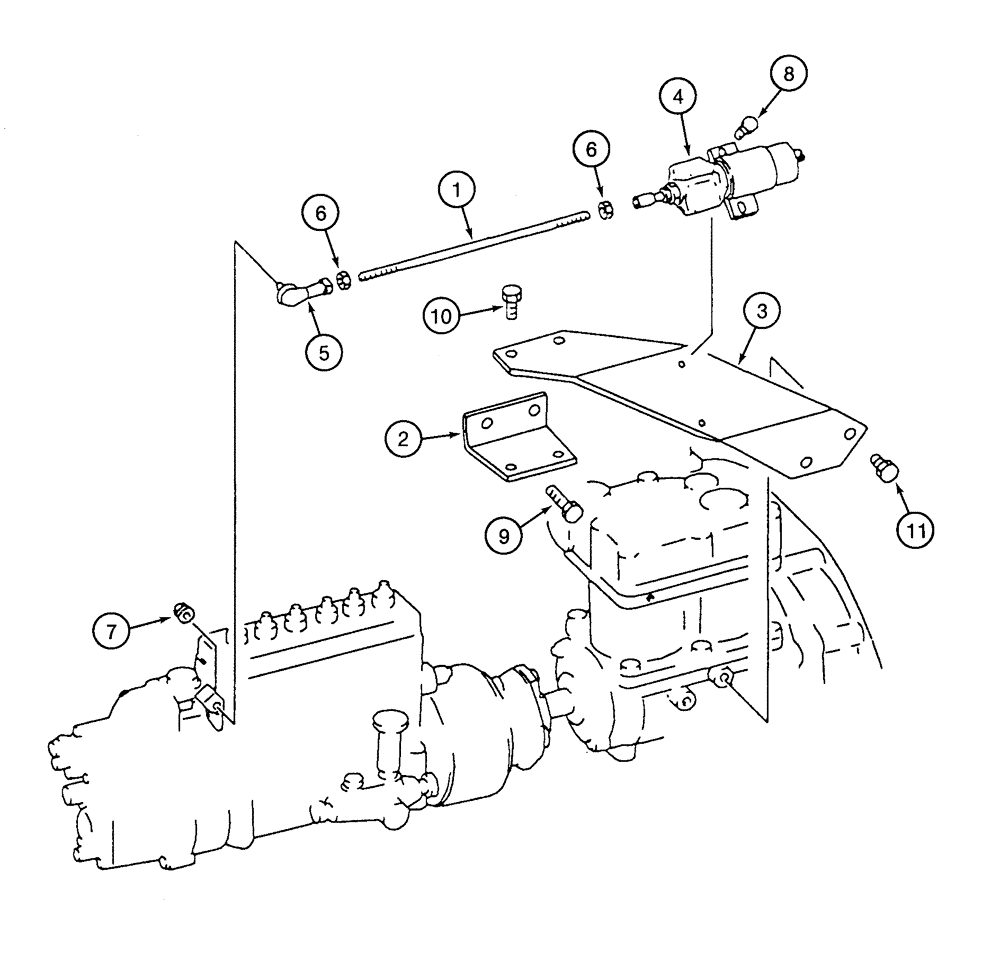

Запчасти Case 9050B (4-24) - EMERGENCY ENGINE STOP, 6D22-T ENGINE (04) - ELECTRICAL SYSTEMS

1

240380A1

ROD

engine stop 300 mm long

1шт.

2

240381A1

BRACKET

support

1шт.

3

240382A1

BRACKET

emergency stop solenoid

1шт.

4

240383A1

SOLENOID

engine stop 24 volt

1шт.

5

240384A1

BALL JOINT

stop rod

1шт.

6

240385A1

NUT

hex jam 6 mm

2шт.

7

135033A1

FLANGE NUT

hex flange 6 mm ball joint

1шт.

8

240386A1

BOLT

hex flange 6 x 12 mm solenoid

2шт.

9

135146A1

BOLT,Hex Flg, M10 x 40mm

hex flange 10 x 40, Serial Range: mm-engine

2шт.

10

133387A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20, Serial Range: mm-bracket

2шт.

11

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm, to air compressor

2шт.
