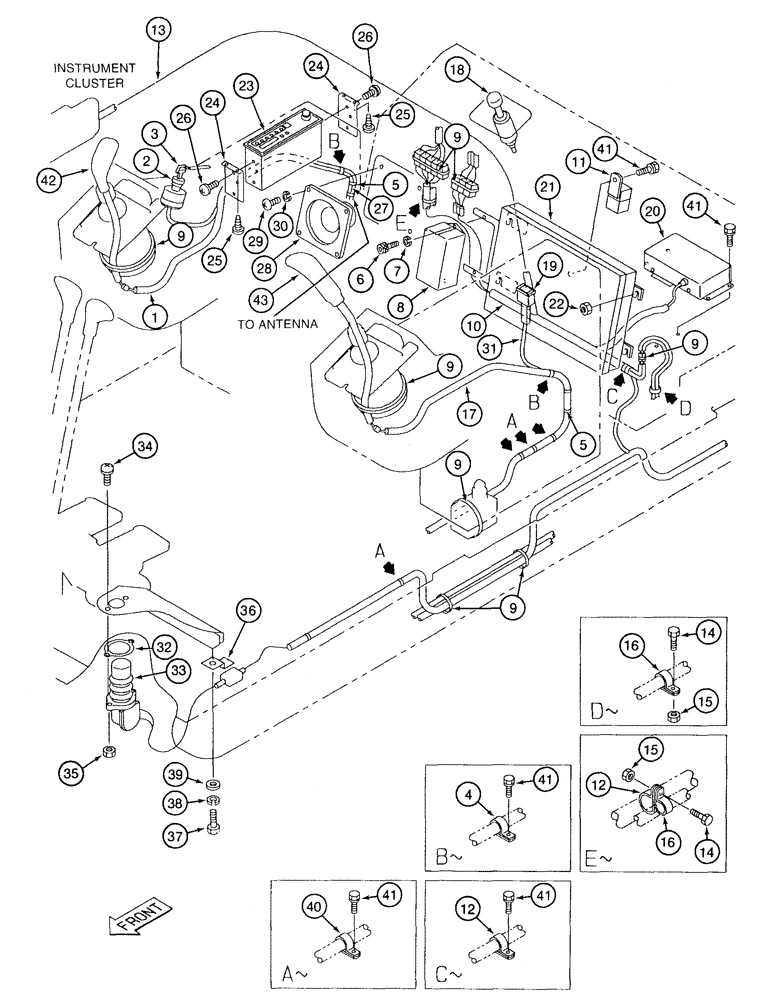

Запчасти Case 9050B (4-18) - CAB ELECTRICAL SYSTEM, CONSOLE, CONTROLLER AND AUXILIARY CONTROL HARNESSES (04) - ELECTRICAL SYSTEMS

1

162749A1

HARNESS

wiring right-hand controller

1шт.

162217A1

IGNITION SWITCH

ASSEMBLY - starter, engine, Includes: Ref. 2 and 3

1шт.

2

159909A1

IGNITION SWITCH

ignition

1шт.

3

150979A1

IGNITION KEY

switch

2шт.

4

157807A1

COLLAR

P-type 20 mm ID

2шт.

5

150067A1

MOUNTING CLIP

tie 150 mm long

1шт.

6

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

BOLT - hex socket 6 - 1.0 x 20 mm, class 12.9

2шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

159910A1

BOX, FUSE

1шт.

9

150496A1

MOUNTING CLIP

UAR - tie 250 mm long

1шт.

10

162750A1

HARNESS

wiring

1шт.

11

159919A1

RELAY

electrical system controller

11шт.

12

157808A1

COLLAR

P-type

4шт.

13

159926A1

HARNESS

controller

1шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

15

157699A1

FLANGE NUT

hex flange, special

2шт.

16

158970A1

COLLAR

P-type

2шт.

17

159928A1

HARNESS

wiring left-hand controller

1шт.

18

159920A1

LIGHTER, CIGARETTE

1шт.

19

162751A1

SWITCH

special boom priority

1шт.

20

162902A1

ECU

CONTROLLER - motor driver

1шт.

21

163113A1

CONTROL

electrical system

1шт.

21

168788A1R

REMAN ELECT CONTROL

9050B CASE CRAWLER EXCAVATOR, electrical system (4/95-), Reman for New PN 163113A1

1шт.

21

168788A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

22

150469A1

FLANGE NUT

hex flange, special

4шт.

23

159940A1

RADIO

AM/FM

1шт.

24

159944A1

SUPPORT

BRACKET - radio mounting

2шт.

25

159945A1

SCREW,Truss Hd

special truss head

4шт.

26

157537A1

SCREW

special pan head

4шт.

27

152500A1

CABLE ASSY.

WIRE - antenna

1шт.

28

159946A1

SPEAKER

radio

1шт.

29

159947A1

SCREW,Phil Pan Head, M4 x 12mm

special pan head

4шт.

30

160383A1

SPRING WASHER

lock, special

4шт.

31

159620A1

HARNESS

boom priority

1шт.

32

160663A1

PACKING

GASKET- switch

1шт.

33

159921A1

SWITCH, CRUISE INC/D

special travel speed select

1шт.

34

159922A1

SCREW,Pan Hd, M5 x 20mm

J- special pan head

2шт.

35

825-1405

NUT,M5, Cl 8

2шт.

36

158962A1

CLIP

harness

1шт.

37

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

38

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

40

159150A1

COLLAR

P-type

6шт.

41

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

26шт.

42

162363A1

KNOB

right, hand, with power up button

1шт.

43

159270A1

KNOB

left-hand, with horn button

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
