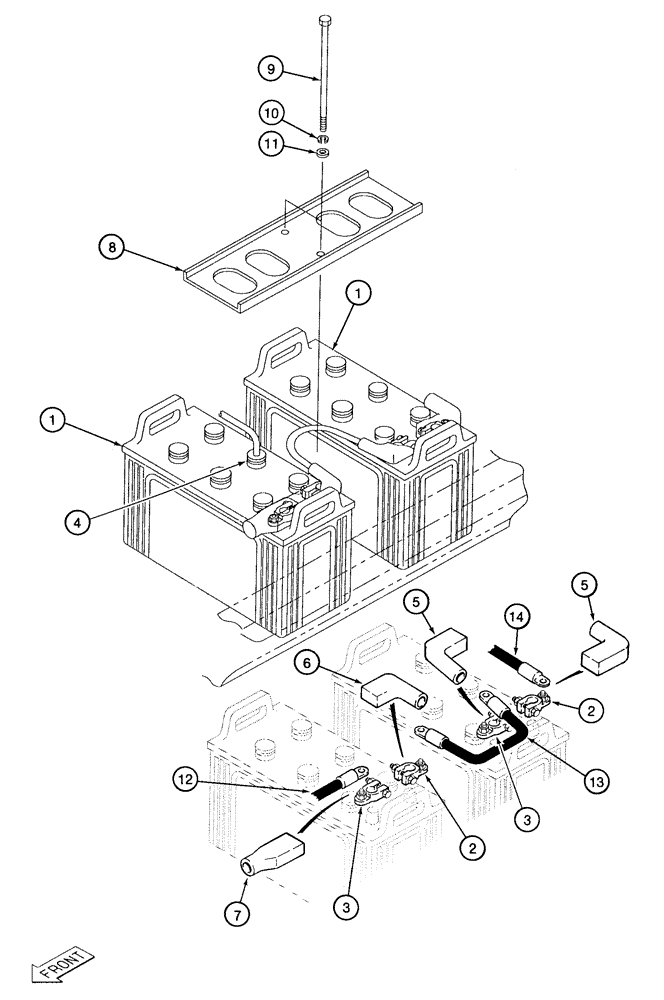

Запчасти Case 9050B (4-14) - BATTERIES, CABLES AND BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

150808A1

BATTERY

ASSEMBLY - with low electrolyte sensor and terminal clamps, no longer available, order Ref. 1 thru 4 as required

1шт.

150801A1

DRY BATTERY

ASSEMBLY - without low electrolyte sensor and with terminal clamps, no longer available, order Ref. 1 thru 3 as required

1шт.

1

150903A1

CYLINDER

BATTERY - wet charged without low electolyte sensor or terminal clamps

1шт.

2

158403A1

TERMINAL CONNECTOR

CLAMP

1шт.

3

150455A1

TERMINAL CONNECTOR

terminal

1шт.

4

150126A1

SENSOR

low electrolyte

1шт.

5

150360A1

CAP

COVER - terminal

1шт.

6

150364A1

CAP

COVER - terminal

2шт.

7

150366A1

CAP

COVER - terminal

1шт.

8

150810A1

SPECIAL RING

BRACKET - battery retainer

1шт.

9

151710A1

BOLT,Spcl, M10 x 210mm

special

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

12

162574A1

CABLE ASSY.

electrical, battery ground

1шт.

13

159914A1

CABLE ASSY.

, Serial Range: battery-battery

1шт.

14

162575A1

CABLE ASSY.

battery, special, Serial Range: battery-relay

1шт.
