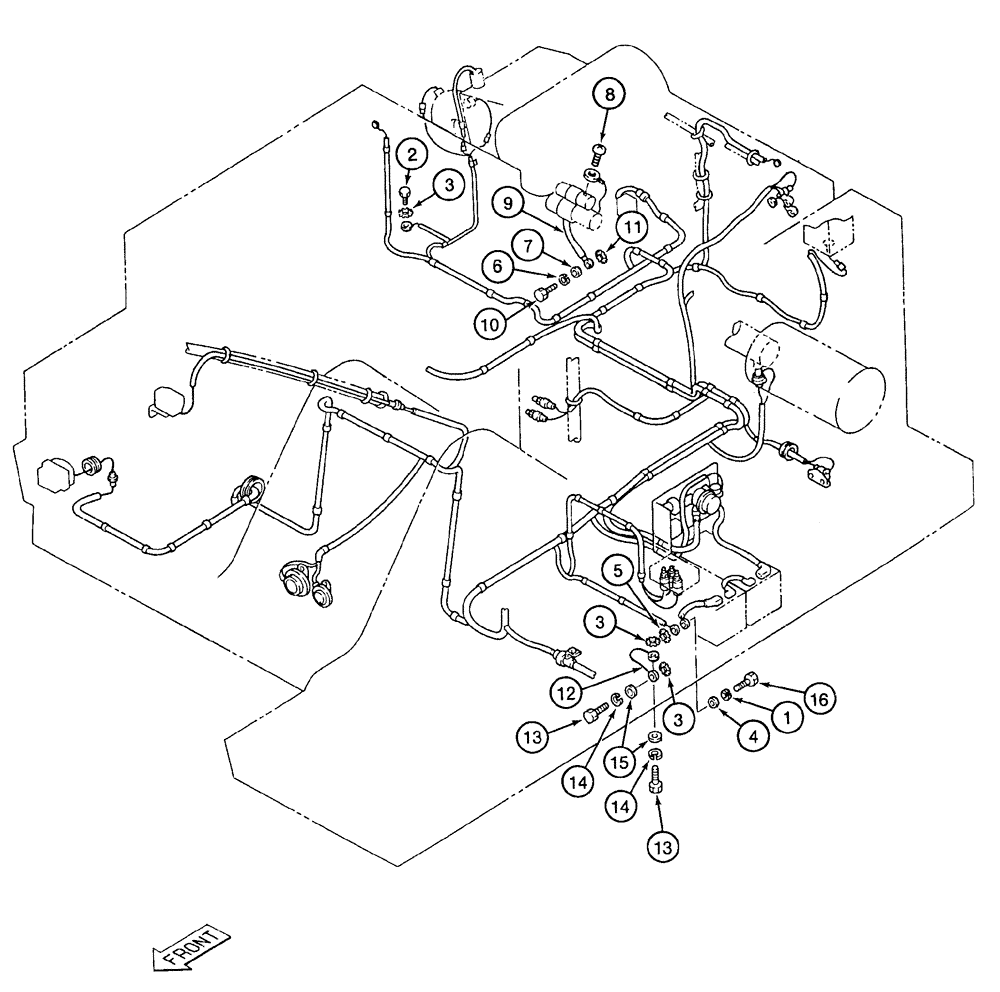

Запчасти Case 9050B (4-12) - GROUND CABLES (04) - ELECTRICAL SYSTEMS

1

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

2

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

1шт.

3

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER, LOCK, Ext Tooth, M6

3шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

157537A1

SCREW

special

1шт.

9

162580A1

CABLE ASSY.

electrical starter ground

1шт.

10

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

11

893-11012

LOCK WASHER,Ext Tooth, M12

WASHER, LOCK, Ext Tooth, M12

1шт.

12

159912A1

CABLE ASSY.

STRAP - ground

1шт.

13

627-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 10.9, Full Thd

hex, full threads 6 - 1.0 x 8 mm, class 10.9

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

2шт.

16

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
