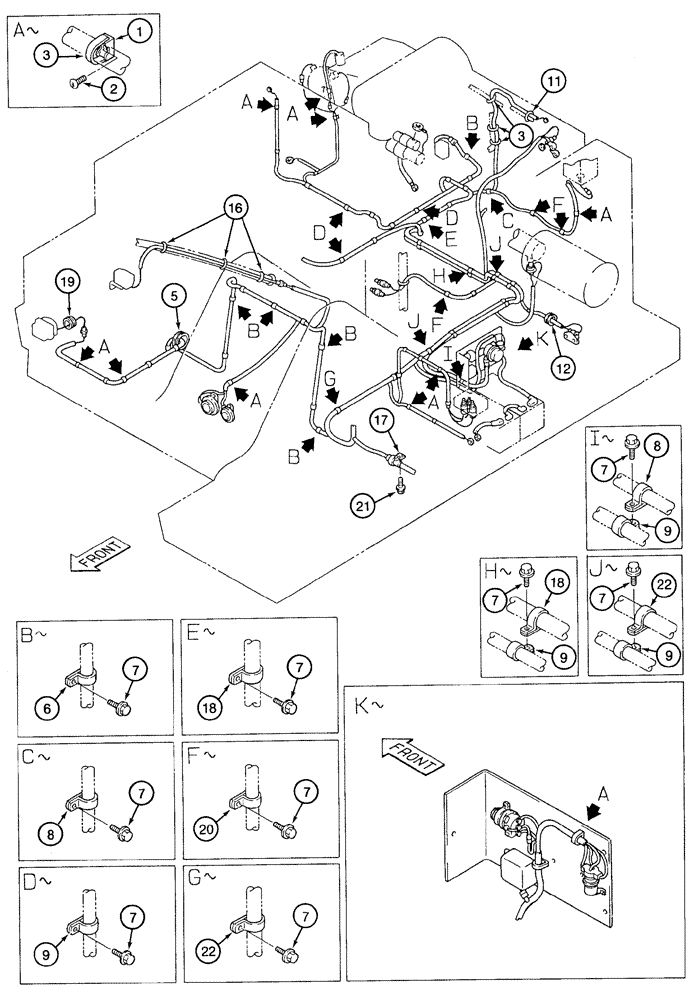

Запчасти Case 9050B (4-10) - MAIN ELECTRICAL SYSTEM CLAMPING (04) - ELECTRICAL SYSTEMS

1

150860A1

COLLAR

BRACKET - support

28шт.

2

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

28шт.

3

150496A1

MOUNTING CLIP

tie 250 mm long

1шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

5

153590A1

GROMMET

rubber

1шт.

6

157806A1

COLLAR

P-type

11шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

special

45шт.

8

156462A1

COLLAR

P-type

2шт.

9

159149A1

COLLAR

P-type

15шт.

10

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER, LOCK, Ext Tooth, M6

3шт.

11

150067A1

MOUNTING CLIP

tie 150 mm long

1шт.

12

150413A1

GROMMET

rubber

1шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

16

150071A1

MOUNTING CLIP

STRAP - tie 365 mm long

1шт.

17

158962A1

CLIP

harness

1шт.

18

158962A1

CLIP

CLAMP - P-type

4шт.

19

159656A1

GROMMET

special

1шт.

20

153039A1

CLAMP

P-type 12 mm ID

7шт.

21

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

1шт.

22

162970A1

CLAMP

P-type

7шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
