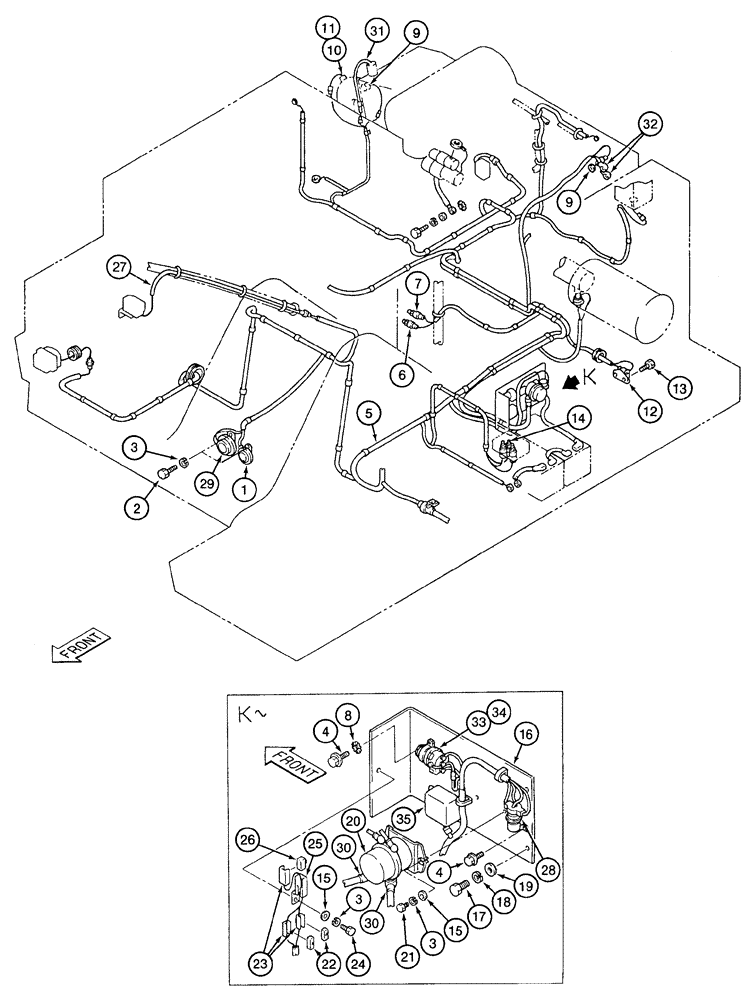

Запчасти Case 9050B (4-08) - MAIN ELECTRICAL WIRING (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
159949A1
HORN
electric
1шт.
2
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
hex, full threads 8 - 1.25 x 20 mm, class 10.9
2шт.
3
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
5шт.
4
159602A1
BOLT,Sems, Hex, M6 x 16mm
special
2шт.
5
162573A1
HARNESS
electrical
1шт.
6
159900A1
PRESSURE SWITCH
pressure travel
1шт.
7
159899A1
PRESSURE SWITCH
pressure boom
1шт.
8
893-11006
LOCK WASHER,Ext Tooth, M6
WASHER, LOCK, Ext Tooth, M6
1шт.
9
159147A1
SENSOR
temperature
2шт.
10
159148A1
SWITCH
temperature
1шт.
11
159901A1
SEALING WASHER
WASHER - sealing
1шт.
12
162218A1
ALARM
travel
1шт.
13
159905A1
BOLT,Sems, Hex, M6 x 25mm, Spcl
hex, special
2шт.
14
159599A1
PRESSURE SWITCH
swing, boom up and boom down
3шт.
21
827-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9
- hex, 8 - 1.25 x 35 mm, class 10.9
2шт.
16
162577A1
CASE
BOX - relay
1шт.
17
627-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 12 - 1.75 x 25 mm, class 10.9
4шт.
18
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
19
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
4шт.
20
159897A1
RELAY
battery
1шт.
22
159903A1
FUSE
25 amps electrical
2шт.
23
159904A1
COVER
wire
3шт.
24
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
- hex, full threads, 8 - 1.25 x 12 mm, class 10.9
1шт.
25
158963A1
CLIP
wire
1шт.
26
159902A1
FUSE
electrical
1шт.
27
162579A1
HARNESS
electrical
1шт.
28
159898A1
RELAY
starter
1шт.
29
159948A1
HORN
electric
1шт.
30
162212A1
TERMINAL CONNECTOR
terminal
2шт.
31
162881A1
TUBE
SLEEVE - corrugated 9-7/8 inch (250 mm) long
1шт.
32
159171A1
CAP
terminal boot, rubber
2шт.
33
135154A1
RELAY
intake air heater, Includes: Ref. 34
1шт.
34
135155A1
FUSE
blade-type 91 amp
1шт.
35
135153A1
RELAY
alternator safety
1шт.
15
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
3шт.
Выбрано товаров: 35
