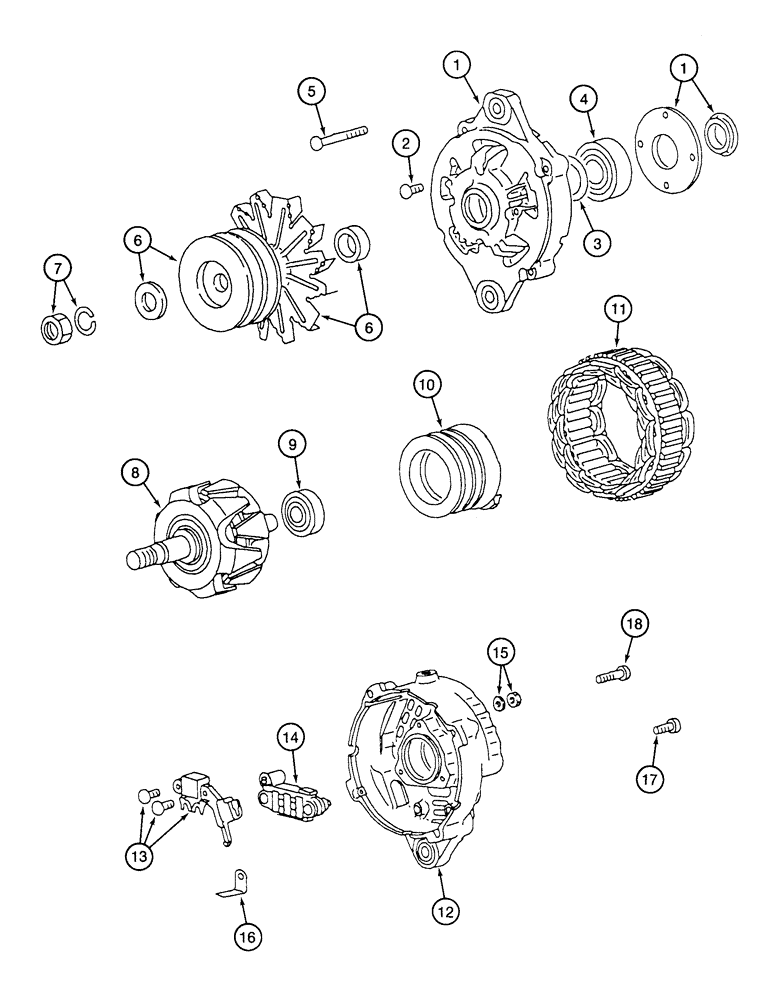

Запчасти Case 9050B (4-06) - ALTERNATOR AND REGULATOR, 6D22-T ENGINE (04) - ELECTRICAL SYSTEMS

84124737

ALTERNATOR

ASSEMBLY - 24 volt, 40 amp, Includes: Ref. 1 - 18, Replaces 240364A1

1шт.

240367A1

SUPPORT

FRAME ASSEMBLY - drive end, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - drive end, includes bearing sleeve and retainer plate

1шт.

2

135138A1

SCREW

special

1шт.

3

HANDLE - NOT USED

1шт.

4

240365A1

BALL BEARING

rotor

1шт.

5

135137A1

SCREW

special

1шт.

6

135131A1

PULLEY

KIT - pulley and fan includes

1шт.

7

135142A1

NUT

KIT - nut, includes lock washer

1шт.

240373A1

ROTOR ASSY.

KIT - rotor, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR - alternator

1шт.

9

240366A1

BALL BEARING

rotor

1шт.

10

240369A1

COIL

alternator

1шт.

11

240374A1

STAY

STATOR - alternator

1шт.

240368A1

SUPPORT

FRAME ASSEMBLY - regulator end, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

FRAME - regulator end

1шт.

13

240372A1

REGULATOR

alternator

1шт.

14

240371A1

RECTIFIER

alternator

1шт.

15

240376A1

NUT

includes flat washer

1шт.

16

240370A1

BRACKET

frame

1шт.

17

240375A1

SCREW

special

1шт.

18

135139A1

SCREW

special

1шт.
