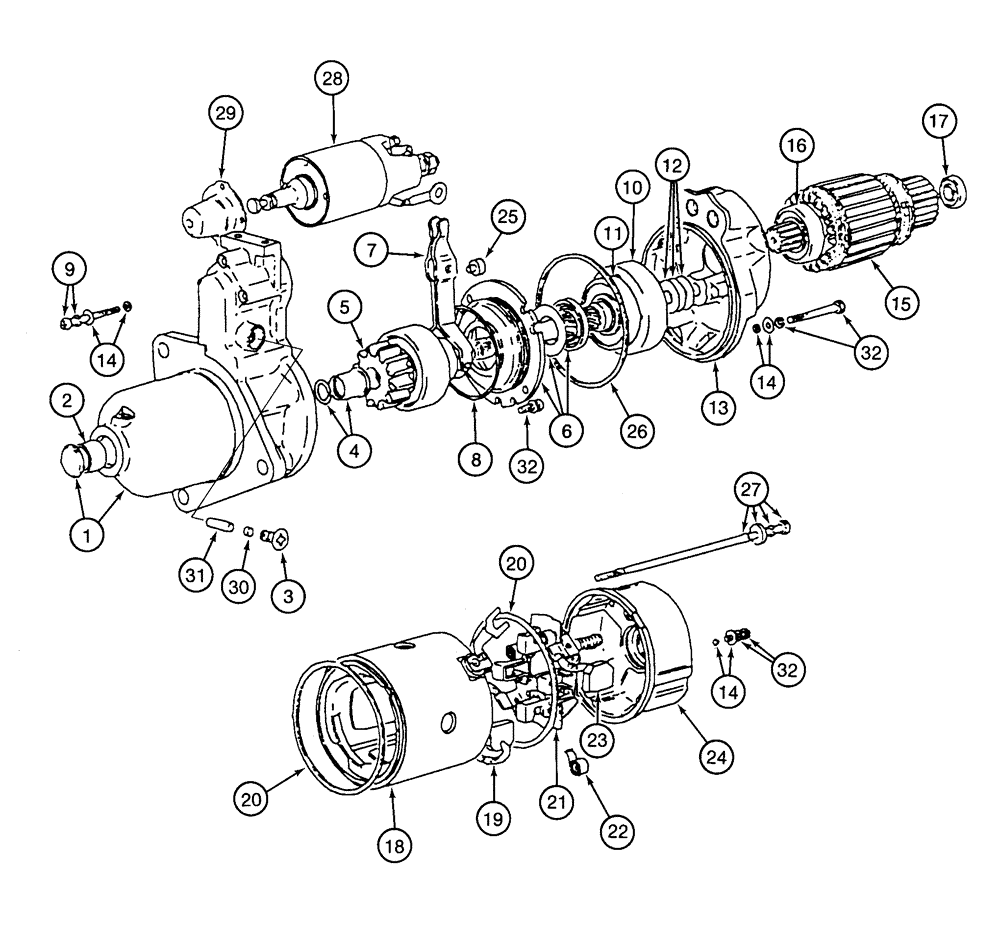

Запчасти Case 9050B (4-04) - STARTER ASSEMBLY, 6D22-T ENGINE (04) - ELECTRICAL SYSTEMS

240330A1

STARTING MOTOR

ASSEMBLY - 24 volt, 6.0 KW, Includes: Ref. 1 - 32

1шт.

240330A1R

REMAN-STARTER

REMANUFACTURED STARTER MOTOR

1шт.

240330A1C

CORE-STARTER

Return Number

1шт.

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

240340A1

HOUSING

ASSEMBLY - drive, Includes: Ref. 2

1шт.

2

240332A1

KIT

bearing includes sleeve

1шт.

3

240359A1

SCREW

CLUTCH - overrunning type

1шт.

4

240355A1

KIT

stopper starter pinion

1шт.

5

240343A1

CLUTCH

overrunning type

1шт.

6

240337A1

BRACKET

starter gear

1шт.

7

240351A1

LEVER

pinion shift

1шт.

8

240352A1

O-RING

drive housing

1шт.

9

240360A1

SCREW

special

1шт.

240349A1

KIT

starter shaft and reduction gear, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - starter reduction

1шт.

11

240333A1

BEARING ASSY

starter shaft and reduction gear

1шт.

12

240357A1

SET OF WASHERS

starter gear shaft

1шт.

13

240338A1

HOUSING

gear

1шт.

14

240353A1

RING

seal consists of two pieces

1шт.

240331A1

KIT

armature, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

ARMATURE - starter

1шт.

16

135038A1

BEARING

armature gear side

1шт.

17

240334A1

BEARING, BALL

armature brush side

1шт.

240358A1

HOUSING

field windings, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - field windings

1шт.

19

240342A1

BRUSH, COMMUTATOR

BRUSH starter

2шт.

20

240347A1

GASKET

housing starter

2шт.

240350A1

HOLDER

HOLDER - brush, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

22

240354A1

SPRING

brush holder

1шт.

23

240342A1

BRUSH, COMMUTATOR

BRUSH starter

2шт.

24

240341A1

HOUSING

cummutator

1шт.

25

240344A1

GUIDE

shift lever

1шт.

26

240348A1

GASKET

RING - seal

1шт.

27

240336A1

BOLT (MACHINE)

SET - bolt

1шт.

240356A1

KIT

magnetic switch, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

SWITCH - magnetic

1шт.

29

240345A1

COVER

magnetic switch

1шт.

30

240346A1

GASKET

screw

1шт.

31

240362A1

PIN

shift lever pivot

1шт.

32

240361A1

SCREW

starter, consists of 4 pieces

1шт.
