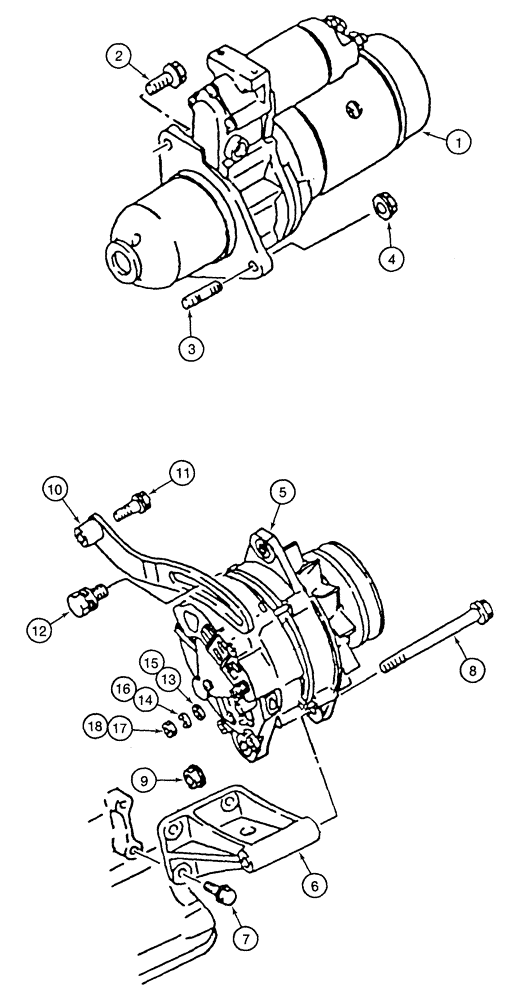

Запчасти Case 9050B (4-02) - STARTER AND ALTERNATOR MOUNTING, 6D22-T ENGINE (04) - ELECTRICAL SYSTEMS

1

240330A1

STARTING MOTOR

ASSEMBLY - 24 volt, 6.0 KW see figure 4-4

1шт.

1

240330A1R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

240330A1C

CORE-STARTER

Return Number, Starting Motor

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Remanufactured STARTER 24 volt, 5.5KW

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

240363A1

BOLT

hex flange, 12 x 40 mm

2шт.

3

135081A1

STUD

special, 12 x 35 mm starter mount

1шт.

4

135085A1

FLANGE NUT

hex flange, 12 mm

1шт.

5

84124737

ALTERNATOR

ALTERNATOR ASSEMBLY - 24 volt, 40 amp see figure 4-6, Replaces 240364A1

1шт.

6

135114A1

BRACKET

alternator mounting

1шт.

7

132378A1

BOLT,Hex Flg, M10 x 20mm

BOLT - hex flange, 10 x 20 mm

4шт.

8

135145A1

BOLT,Hex Flg, M12 x 125mm

hex flange, 12 x 125 mm

1шт.

9

135085A1

FLANGE NUT

hex flange, 12 mm

1шт.

10

135112A1

BRACKET

BRACE - alternator adjusting

1шт.

11

135146A1

BOLT,Hex Flg, M10 x 40mm

hex flange, 10 x 40 mm

1шт.

12

135147A1

BOLT,M12 x 30mm, w/ Captive Wshr

with captive washer, 12 x 30 mm

1шт.

13

135136A1

WASHER

flat, 5 mm

1шт.

14

240304A1

WASHER

flat, 8 mm

1шт.

15

135077A1

WASHER

lock, 5 mm

1шт.

16

132502A1

WASHER

lock, 8 mm

1шт.

17

135143A1

NUT

hex, 5 mm

1шт.

18

240377A1

NUT

hex, 8 mm

1шт.
