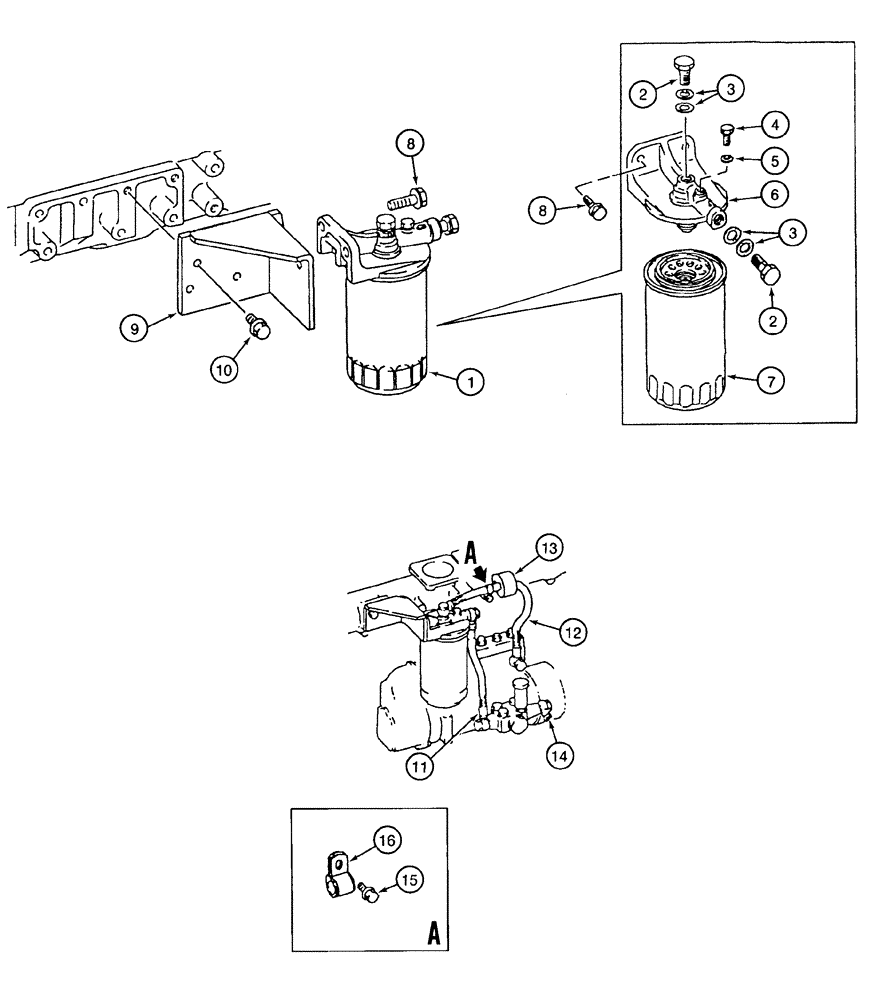

Запчасти Case 9050B (3-16) - FUEL FILTER AND HOSES, 6D22-T ENGINE (03) - FUEL SYSTEM

1

133398A1

FILTER, FUEL

ASSEMBLY, Includes: Ref. 2 - 7

1шт.

2

H412429

BANJO BOLT

hex, banjo 14 x 26 mm

1шт.

3

133378A1

GASKET

GASKET - special banjo bolt

2шт.

4

240107A1

PLUG

hex 8 mm

1шт.

5

133379A1

GASKET

special 8 mm plug

1шт.

6

133399A1

HEAD ASSY.

BASE - fuel filter

1шт.

7

133402A1

FILTER

fuel

1шт.

8

133387A1

BOLT,Hex Flg, M10 x 20mm

hex flange 10 x 20 mm base mounting

2шт.

9

240108A1

BRACKET

fuel filter

1шт.

10

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm, bracket

3шт.

11

134806A1

HOSE

15 inch (380 mm) long transfer, Serial Range: pump-filter

1шт.

12

240113A1

FUEL HOSE,520.00 mm

Filter to Injection Pump 520.00 mm

1шт.

13

240110A1

PROTECTOR

hose

1шт.

14

133407A1

FITTING

ADAPTER - special, includes screen transfer pump inlet

1шт.

15

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

1шт.

16

240111A1

CLIP

special 16 mm diameter

1шт.
