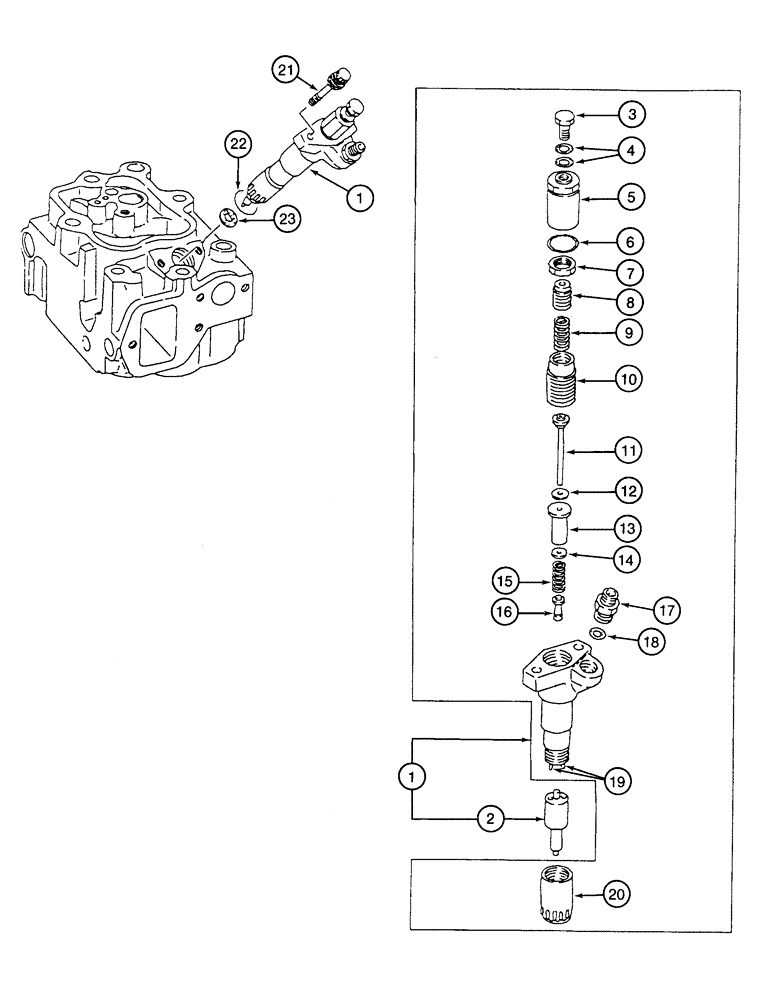

Запчасти Case 9050B (3-14) - FUEL INJECTION NOZZLE, 6D22-T ENGINE (03) - FUEL SYSTEM

1

240109A1

NOZZLE INJECTION

ASSEMBL- fuel injection, Includes: Ref. 2 - 20

6шт.

2

134692A1

TIP

NOZZLE -fuel injection

1шт.

240125A1

BRUSH, COMMUTATOR

HOLDER ASSEMBLY - fuel injection, Includes: Ref. 3 - 20

1шт.

3

134650A1

BOLT

hex, banjo

1шт.

4

134686A1

GASKET

banjo bolt

2шт.

5

240278A1

NUT

nozzle

1шт.

6

240124A1

GASKET

nozzle screw

1шт.

7

240279A1

NUT

nozzle

1шт.

8

240277A1

SCREW

nozzle

1шт.

9

240274A1

SPRING

special nozzle holder

1шт.

10

240276A1

SCREW

nozzle

1шт.

11

240139A1

TAPPET

ROD - push, nozzle holder

1шт.

12

240393A1

KIT - shim 0.75 - 1.50 mm

1шт.

13

240275A1

SPACER

fuel injection nozzle

1шт.

14

240394A1

KIT - shim 0.10 - 1.54 mm

1шт.

15

240273A1

SPRING

compression type, special

1шт.

16

240132A1

TAPPET

ROD - push, special

1шт.

17

134690A1

FITTING

ADAPTER - straight, special

1шт.

18

134685A1

GASKET

special adapter

1шт.

19

134711A1

DOWEL

PIN - holder

2шт.

20

134712A1

NUT

holder

1шт.

21

134715A1

BOLT,M8 x 56mm

hex flange 8 x 56 mm

12шт.

22

134649A1

SEAL

dust nozzle holder

6шт.

23

134651A1

GASKET

fuel injection nozzle

6шт.
