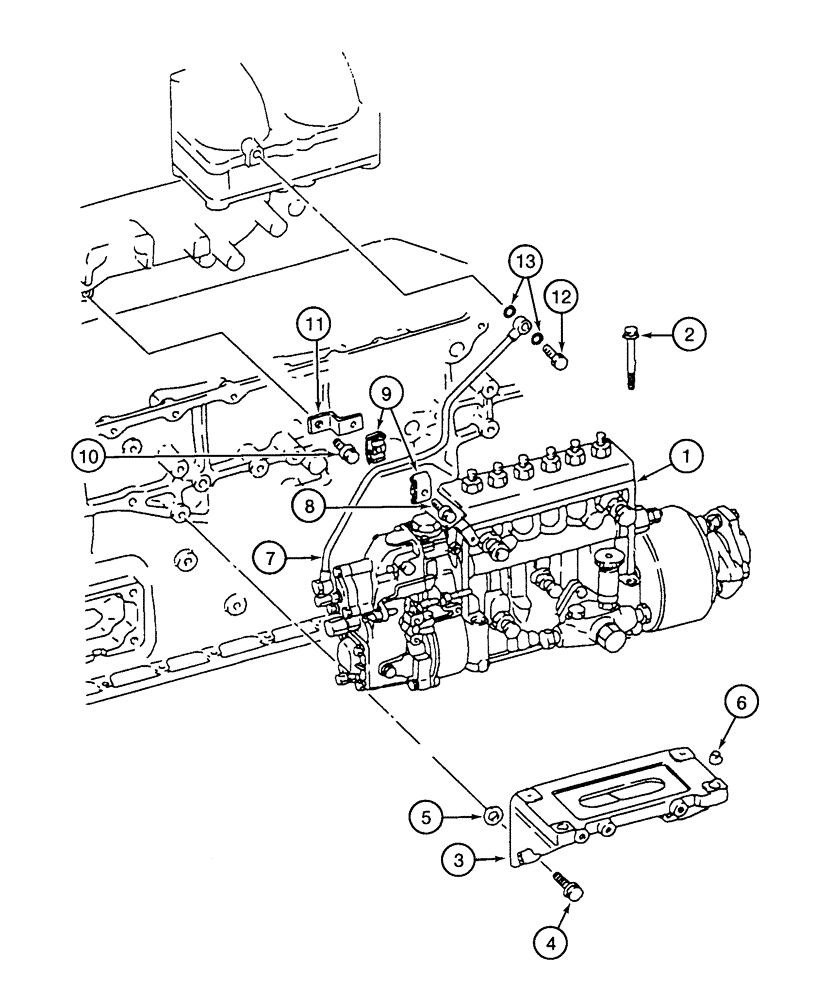

Запчасти Case 9050B (3-12) - FUEL INJECTION PUMP AND MOUNTING, 6D22-T ENGINE (03) - FUEL SYSTEM

1

240116A1

PUMP, FUEL INJECTION

PUMP - fuel injection

1шт.

NSS

NOT SOLD SEPARAT

BODY - injection pump

1шт.

NSS

NOT SOLD SEPARAT

TIMER - automatic

1шт.

NSS

NOT SOLD SEPARAT

PUMP - fuel feed1

1шт.

NSS

NOT SOLD SEPARAT

GOVERNOR - injection pump

1шт.

2

132669A1

BOLT,Hex Flg, M10 x 85mm

hex, flange 10 x 85 mm pump attaching

4шт.

3

133425A1

BRACKET

pump mounting

1шт.

4

133276A1

BOLT,Hex Flg, M10 x 35mm

- hex, flange, 10 x 35 mm, bracket attaching

4шт.

5

133429A1

SHIM

0.1 mm thick pump bracket

1шт.

6

133430A1

BUSHING

injection pump 10 x 9 mm

2шт.

7

240118A1

PIPE

inection pump boost compensator

1шт.

8

133339A1

DAMPER

BOLT - hex flange 6 x 30 mm

1шт.

9

240122A1

CLAMP

2 x 6 mm

2шт.

10

240123A1

BOLT

hex flange 8 x 16 mm

1шт.

11

240121A1

SUPPORT

clamp

1шт.

12

133333A1

BOLT,Hex, M10 x 20mm

hex, banjo 10 x 20 mm

1шт.

13

132342A1

GASKET

10 mm fuel line

2шт.
