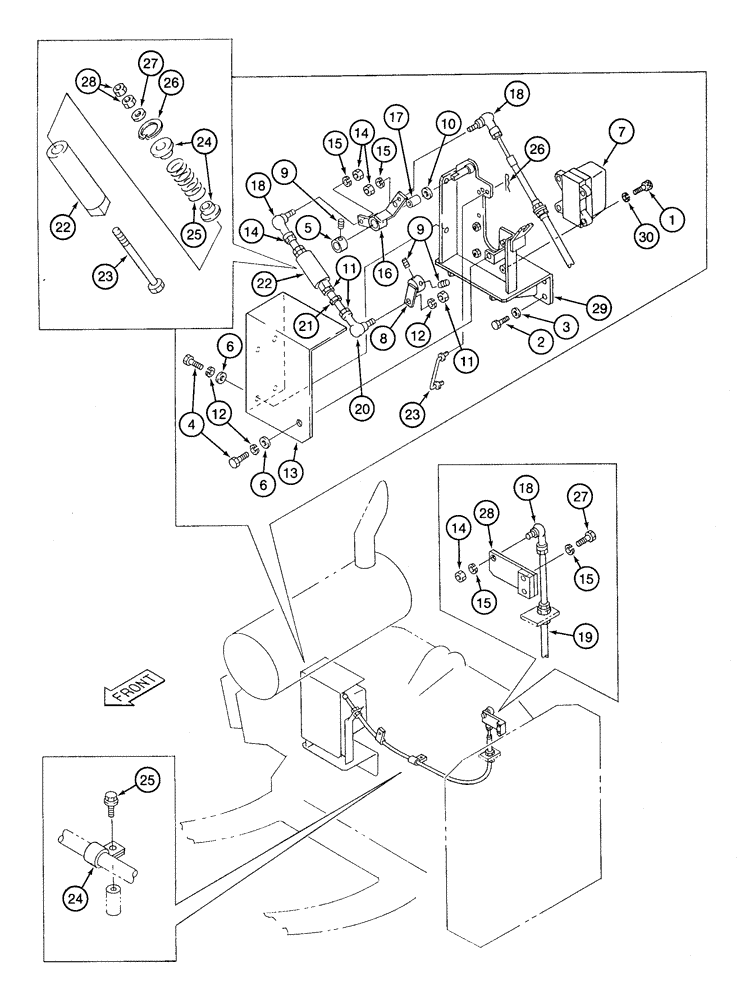

Запчасти Case 9050B (3-06) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM

1

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

2

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

4шт.

3

150811A1

WASHER

flat, special 12 mm

4шт.

4

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

5шт.

5

162291A1

COLLAR CLAMP

special

1шт.

6

895-1108

WASHER

flat 9 x 17 x 1.6 mm

5шт.

7

160614A1

MOTOR, ELECTRIC

throttle control

1шт.

7

160614A1R

REMAN-ELECTRIC MOTOR

9050B CASE CRAWLER EXCAVATOR, Throttle Control (4/95-)

1шт.

7

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

8

162292A1

LEVER

throttle

1шт.

9

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

3шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

3шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

13

162293A1

COVER

throttle control motor

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.

16

162294A1

PITMAN

LINK ASSEMBLY - control, Includes: Ref. 17

1шт.

17

160377A1

BEARING, NEEDLE,16 mm ID x 24 mm OD x 26 mm

1шт.

18

150054A1

BALL JOINT

3шт.

19

162295A1

BOWDEN CONTROL

CABLE - control

1шт.

20

153235A1

BALL JOINT

1шт.

21

150547A1

ROD,THREADED

1шт.

150535A1

SPRING

ASSEMBLY - cable return, Includes: Ref. 22 - 28

1шт.

22

150537A1

TUBE

HOUSING - spring

1шт.

23

150540A1

BOLT,Hex, M6 x 95mm, Spcl

hex

1шт.

24

150453A1

COLLAR CLAMP

GUIDE - spring

2шт.

25

150543A1

SPRING

cable return

1шт.

26

800-2122

SNAP RING,M22, Internal

RING, SNAP, M22, Int

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

flat, 6.6 x 12.5 x 1.6 mm

1шт.

28

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

29

162296A1

STAY

special

1шт.

30

153039A1

CLAMP

P-type 12 mm ID

2шт.

31

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

hex, special

2шт.

32

153181A1

COTTER PIN

CLIP - hair pin

2шт.

33

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

hex, full threads, 6 - 1.0 x 25 mm, class 10.9

2шт.

34

162297A1

STAY

LEVER - control

1шт.

35

162298A1

BRACKET

throttle motor

1шт.

36

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.
