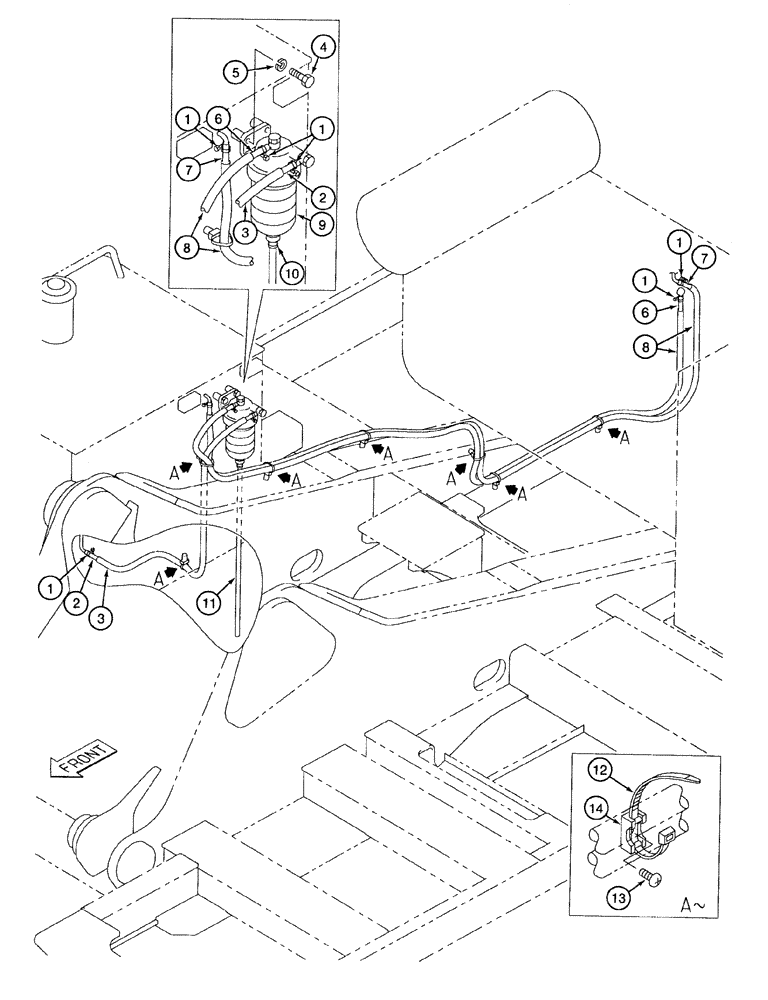

Запчасти Case 9050B (3-04) - FUEL LINES (03) - FUEL SYSTEM

1

153043A1

COLLAR

wire-type

6шт.

2

157605A1

FUEL HOSE,9.5 mm ID, 14.5 mm OD

TUBE - vinyl 55-1/8 inch (1400 mm)

1шт.

3

150774A1

PLASTIC-RUBBER TUBE

corrugated 39-3/8 inch (1000 mm) long

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

157620A1

LARGE HOSE,9.5 mm ID, 14.5 mm OD

TUBE - vinyl 126 inch (3200 mm) long water separator to engine

1шт.

7

157652A1

LARGE HOSE,9.5 mm ID, 14.5 mm OD

TUBE - vinyl, fuel return 126 inch (3200 mm) long fuel return, engine to tank

1шт.

8

151175A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated 118-1/8 inch (3000 mm) long

2шт.

9

158651A1

SEPARATOR

water

1шт.

10

150067A1

MOUNTING CLIP

tie separator drain line

1шт.

11

157630A1

TUBE,9.5 mm ID, 14.5 mm OD

vinyl 31-1/2 inch (800 mm) long separator drain line

1шт.

12

150071A1

MOUNTING CLIP

STRAP - tie

7шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

7шт.

14

150860A1

COLLAR

BRACKET - tie strap support

7шт.
