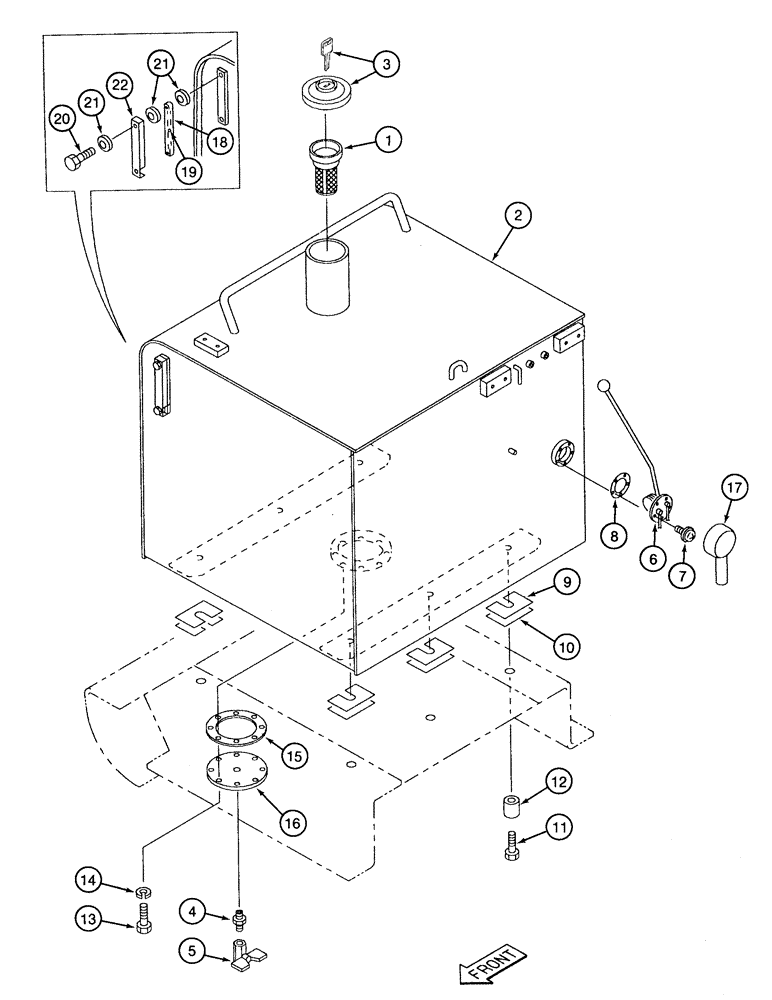

Запчасти Case 9050B (3-02) - FUEL TANK (03) - FUEL SYSTEM

1

150146A1

FILTER

fuel tank

1шт.

2

163827A1

FUEL TANK

1шт.

3

150492A1

LOCKABLE FUEL CAP

fuel tank with locking key

1шт.

4

150847A1

HYD CONNECTOR

CONNECTOR - straight fuel tank to drain valve

1шт.

5

158923A1

DRAIN VALVE

fuel tank drain

1шт.

6

163257A1

SENSOR

SENDER - fuel level

1шт.

7

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

pan head

5шт.

8

152591A1

GASKET,2mm Thk

- fuel level sender

1шт.

9

150166A1

SHIM

1/32 inch (0.8 mm) thick

1шт.

10

150479A1

SHIM

5/64 (2.0 mm) thick

1шт.

11

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

12

162301A1

SPACER

special

6шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads 10 - 1.5 x 25 mm, class 10.9

8шт.

14

892-11010

LOCK WASHER,M10

8шт.

15

151322A1

GASKET,3mm Thk

- cover

1шт.

16

151320A1

COVER

access, fuel tank drain

1шт.

17

159698A1

COVER

special

1шт.

159815A1

GAUGE

ASSEMBLY - liquid level fuel tank, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - gauge

1шт.

19

NSS

NOT SOLD SEPARAT

FLOAT - indicator, red

1шт.

20

159492A1

BOLT

special

2шт.

21

159493A1

SEALING WASHER

6шт.

22

NSS

NOT SOLD SEPARAT

COVER - indicator

1шт.
