(2-62) - OIL LINES, 6D22-T ENGINE

Запчасти Case 9050B (2-62) - OIL LINES, 6D22-T ENGINE (02) - ENGINE

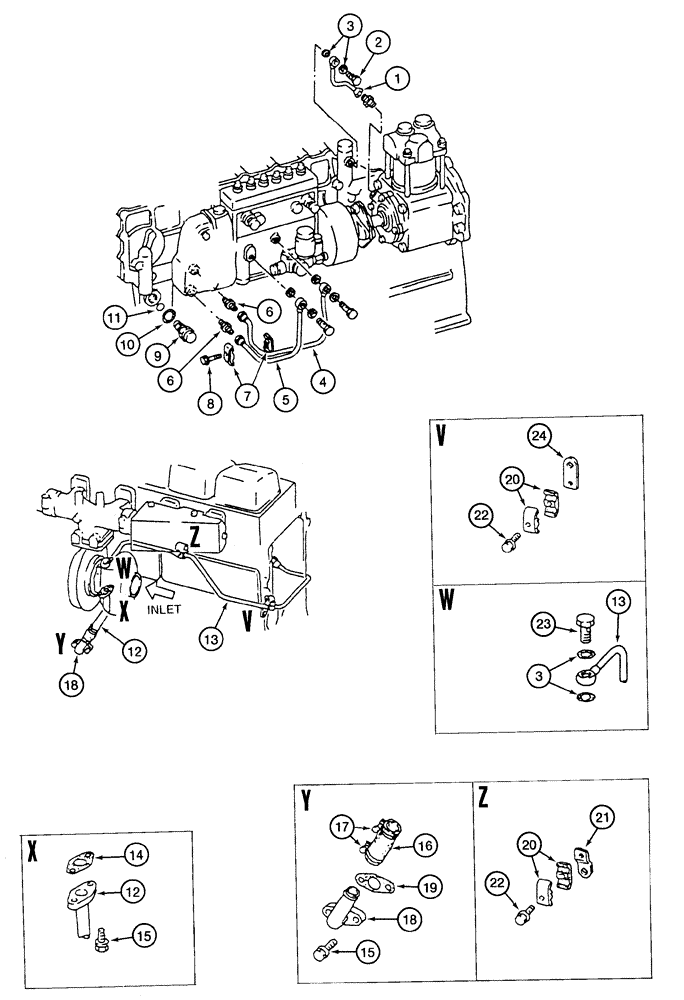

Схема запчастей Case 9050B - (2-62) - OIL LINES, 6D22-T ENGINE (02) - ENGINE
21
22
13
6
12
4
3
23
7
8
18
14
20
3
6
18
22
15
17
24
9
5
10
19
20
13
15
11
12
2
1
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

133350A1

TUBE

oil feed 6 mm air compressor

1шт.

2

133333A1

BOLT,Hex, M10 x 20mm

hex, banjo 10 x 20 mm oil feed tube

1шт.

3

132342A1

GASKET

10 mm banjo bolt

4шт.

4

133323A1

TUBE

- engine oil line

1шт.

5

133322A1

TUBE

engine oil line

1шт.

6

133327A1

FITTING

ADAPTER - straight tube

2шт.

7

133329A1

CLAMP

tube 2 x 6 mm oil tube

2шт.

8

133337A1

BOLT,Hex Flg, M6 x 30mm

hex flange 6 x 30 mm

1шт.

9

240101A1

VALVE

oil pressure regulating

1шт.

10

132638A1

GASKET

27 mm valve

1шт.

11

133326A1

O-RING

valve

1шт.

12

240103A1

RETURN PIPE

oil return turbocharger

1шт.

13

240102A1

SUCTION PIPE

oil feed turbocharger

1шт.

14

133176A1

GASKET

oil return tube

1шт.

15

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

4шт.

16

133346A1

HOSE

3-11/32 inch (85 mm) long turbocharger

1шт.

17

133328A1

CLIP

CLAMP - adj 31 mmø

2шт.

18

240105A1

TUBE

oil return turbocharger

1шт.

19

133176A1

GASKET

oil return tube

1шт.

20

133331A1

CLAMP

tube 9 x 2 mm

4шт.

21

133325A1

STAY

SUPPORT - clamp

1шт.

22

133338A1

BOLT,Hex Flg, M6 x 35mm

hex flange 6 x 35 mm

2шт.

23

133335A1

BOLT,Hex, M10 x 26mm

oil tube 10 x 26 mm

1шт.

24

133324A1

STAY

SUPPORT - clamp

1шт.
