Запчасти Case 9050B (2-58) - AIR COMPRESSOR SYSTEM, 6D22-T ENGINE (02) - ENGINE

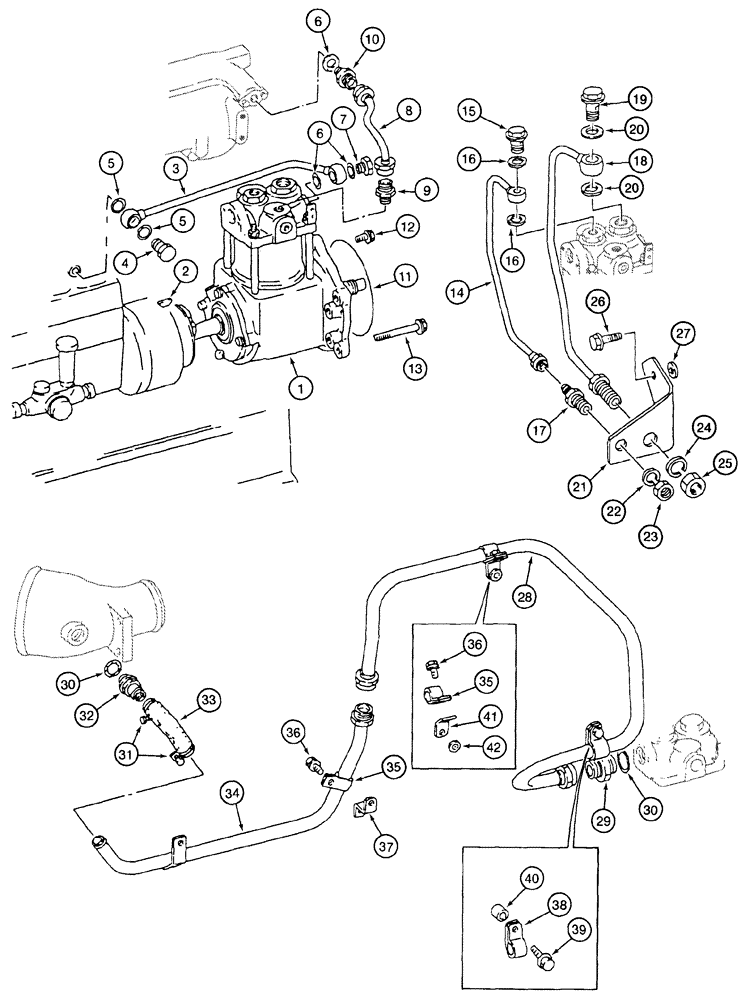

Схема запчастей Case 9050B - (2-58) - AIR COMPRESSOR SYSTEM, 6D22-T ENGINE (02) - ENGINE
41
30
13
33
16
40
15
35
24
23
32
7
20
2
12
3
34
17
21
11
35
6
1
18
36
27
5
31
37
25
30
16
8
39
36
20
4
38
5
19
10
42
28
26
6
29
22

Артикул

Название

Примечание

Количество

1

132554A1

COMPRESSOR

- air see figure 2-60

1шт.

2

132635A1

KEY

Woodruff 5 x 22 mm

1шт.

3

132596A1

TUBE

- water inlet

1шт.

4

132660A1

BOLT,M16 x 29mm

16 x 29 mm inlet tube

1шт.

5

132412A1

GASKET

special 16 mm inlet tube

2шт.

6

132636A1

GASKET

14 mm eyebolt

3шт.

7

H412429

BANJO BOLT

hex, banjo 14 x 26 mm

1шт.

8

132589A1

UNLOADING TUBE

TUBE - water outlet

1шт.

9

132650A1

FITTING

ADAPTER - at air compressor

1шт.

10

132651A1

FITTING

ADAPTER - at engine

1шт.

11

132628A1

O-RING

air compressor

1шт.

12

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

1шт.

13

132669A1

BOLT,Hex Flg, M10 x 85mm

hex, flange 10 x 85 mm

5шт.

14

134725A1

UNLOADING TUBE

TUBE - unloader

1шт.

15

132658A1

BOLT,M18 x 28mm

18 x 28 mm unloader tube

1шт.

16

132639A1

GASKET

18 mm eyebolt

2шт.

17

132649A1

FITTING

ADAPTER - bulkhead

1шт.

18

134722A1

TUBE

- outlet

1шт.

19

132659A1

BOLT,M24 x 36mm

24 x 36 mm outlet tube

1шт.

20

132640A1

GASKET

24 mm eyebolt

2шт.

21

132557A1

BRACKET

tube support

1шт.

22

132622A1

WASHER

lock 14 mm

1шт.

23

132634A1

NUT

hex jam 14 mm

1шт.

24

132621A1

WASHER

lock 20 mm

1шт.

25

132633A1

NUT

hex jam 20 mm

1шт.

26

132674A1

BOLT,Hex Flg, M12 x 35mm

hex flange 12 x 35 mm

2шт.

27

132624A1

WASHER

flat 12 mm

1шт.

28

240079A1

TUBE

- suction from air cleaner

1шт.

29

132644A1

FITTING

ADAPTER - hose

1шт.

30

132638A1

GASKET

27 mm adapter

2шт.

31

132292A1

CLAMP

30 mm diameter suction hose

2шт.

32

240084A1

FITTING

ADAPTER - hose

1шт.

33

240077A1

AIR HOSE

suction, at air cleaner

1шт.

34

240080A1

PIPE

TUBE - suction

1шт.

35

132654A1

CLIP

CLAMP - P-style 20 mm

2шт.

36

132373A1

BOLT,Hex Flg, M6 x 12mm

hex flange 6 x 12 mm

2шт.

37

240083A1

STAY

SUPPORT - clamp

1шт.

38

132652A1

CLIP

CLAMP - P-style 20 mm

1шт.

39

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

1шт.

40

134731A1

STAY

SPACER - 15 mm clamp

1шт.

41

240082A1

STAY

SUPPORT - clamp

1шт.

42

132623A1

WASHER

flat 10.5 mm

2шт.

42

240081A1

WASHER

flat 10.5 x 4.5 mm

1шт.

Выбрано товаров: 43
