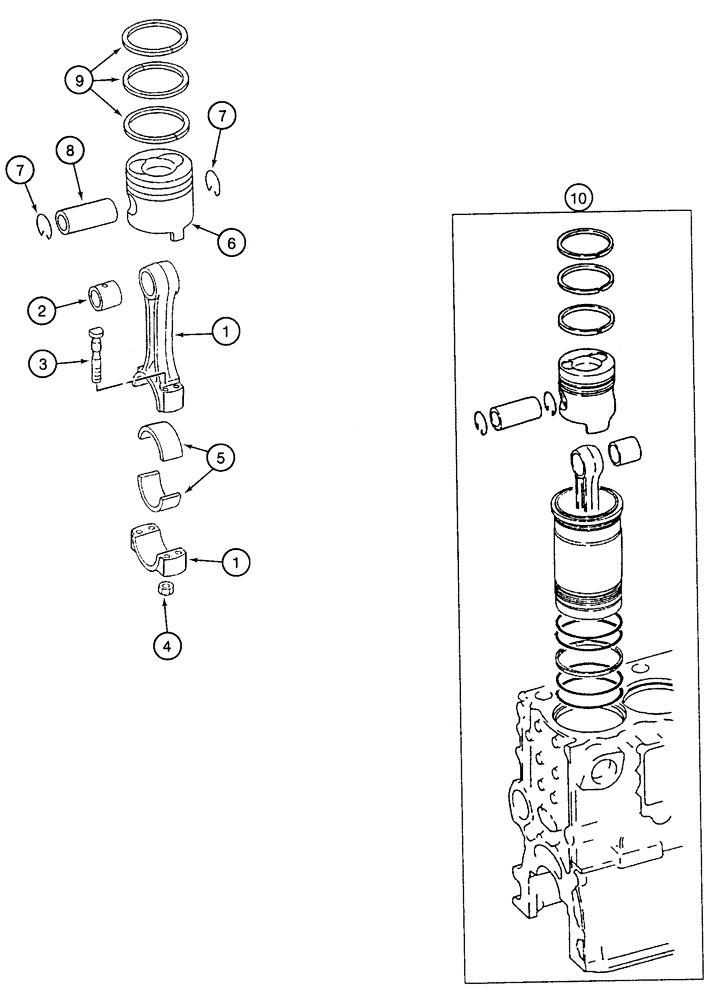

Запчасти Case 9050B (2-56) - PISTONS AND CONNECTING RODS, 6D22-T ENGINE (02) - ENGINE

240068A1

ROD ASSY.

connecting, Includes: Ref. 1 - 4

6шт.

1

NSS

NOT SOLD SEPARAT

ROD - connecting, both halves

1шт.

2

132465A1

BUSHING

rod

1шт.

3

132463A1

BOLT,M13 x 107mm

connecting rod 13 x 107 mm

4шт.

4

132467A1

NUT

hex flange 13 mm

4шт.

5

132480A1

BEARING SET

KIT - bearing, upper and lower standard

1шт.

5

132481A1

BEARING SET

KIT - bearing, upper and lower 0.25 mm undersize

1шт.

5

132482A1

BEARING SET

KIT - bearing, upper and lower 0.50 mm undersize

1шт.

5

132483A1

BEARING SET

KIT - bearing, upper and lower 0.75 mm undersize

1шт.

5

132484A1

BEARING SET

KIT - bearing, upper and lower 1.00 mm undersize

1шт.

6

132470A1

PISTON

engine 0.50 mm oversize

1шт.

6

132474A1

PISTON

engine 0.75 mm oversize

1шт.

6

132475A1

PISTON

engine 1.00 mm oversize

1шт.

6

132476A1

PISTON

engine A size

1шт.

6

132477A1

PISTON

engine B size

1шт.

6

132478A1

PISTON

engine C size

1шт.

7

132493A1

RING, SNAP

retaining 50 mm piston pin

2шт.

8

132468A1

PISTON PIN

50 x 106 mm

1шт.

9

132485A1

PISTON RING SET

KIT - standard

1шт.

9

132486A1

PISTON RING SET

KIT - 0.50 mm oversize

1шт.

9

132487A1

PISTON RING SET

KIT - 0.75 mm oversize

1шт.

9

132488A1

PISTON RING SET

KIT - 1.00 mm oversize

1шт.

10

132279A1

KIT

liner and piston piston, liner and connecting rod service

3шт.
