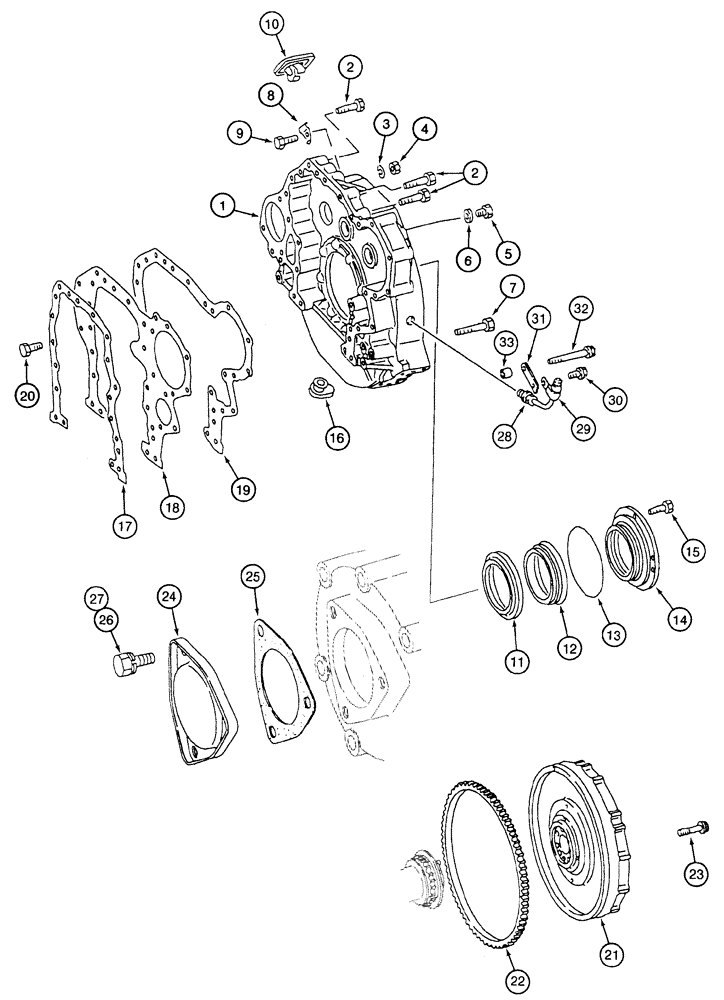

Запчасти Case 9050B (2-54) - FLYWHEEL AND HOUSING, 6D22-T ENGINE (02) - ENGINE

1

240062A1

HOUSING

flywheel

1шт.

2

132452A1

BOLT,Hex Flg, M12 x 60mm

hex flange 12 x 60 mm

2шт.

3

132427A1

WASHER

lock 6 mm

3шт.

4

132434A1

WHEEL NUT

6 mm

1шт.

5

132430A1

PLUG

16 mm

1шт.

6

132412A1

GASKET

special 16 mm

1шт.

7

132436A1

BOLT,Hex Flg, M12 x 90mm

hex flange 12 x 90 mm

8шт.

8

132414A1

INDICATOR

POINTER - timing

1шт.

9

132438A1

BOLT,Hex, M6 x 25mm

hex 6 x 25 mm timing pointer

1шт.

10

132403A1

COVER

timing pointer

1шт.

11

132456A1

RING

SLINGER - oil timing gears

1шт.

12

132459A1

SEAL

rear

1шт.

13

132432A1

O-RING

seal retainer

1шт.

14

132426A1

RETAINER

oil seal

1шт.

15

132442A1

BOLT,M8 x 16mm, W/ Wshr

with captive washer 8 x 16 mm

4шт.

16

132428A1

PLUG

rubber 29 mm

1шт.

17

132407A1

GASKET

rear plate cylinder block side

1шт.

18

132413A1

PLATE

flywheel housing

1шт.

19

132409A1

GASKET

rear plate flywheel housing side

1шт.

20

132453A1

BOLT,Hex Flg, M12 x 20mm

hex flange 12 x 20 mm

9шт.

21

132454A1

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 22

1шт.

22

132458A1

RING, FLYWHEEL

GEAR - ring 143 teeth flywheel

1шт.

23

132460A1

BOLT,Hex Flg, M16 x 50.50mm

BOLT - hex flange 16 x 50.5 mm

8шт.

24

132405A1

COVER

tachometer drive

1шт.

25

132411A1

GASKET

tach drive cover rear cover

1шт.

26

132461A1

BOLT,M10 x 20mm, W/ Wshr

with captive washer 10 x 20 mm

3шт.

27

132462A1

BOLT,M10 x 35mm, W/ Wshr

with captive washer 10 x 35 mm

1шт.

28

240067A1

SENSOR

speed, engine

1шт.

29

240063A1

CLIP

engine speed sensor

1шт.

30

132373A1

BOLT,Hex Flg, M6 x 12mm

hex flange 6 x 12 mm

1шт.

31

240064A1

STAY

SUPPORT - clamp

1шт.

32

240066A1

BOLT

hex flane 10 x 100 mm

1шт.

33

240065A1

SPACER

10 mm clamp support

1шт.
