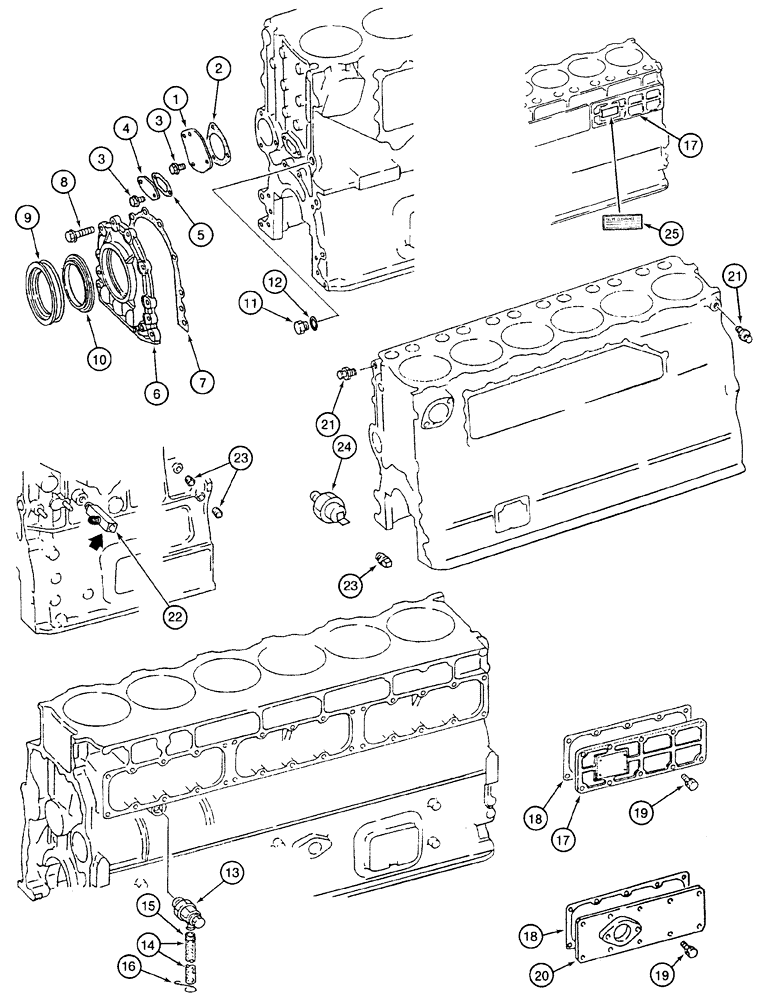

Запчасти Case 9050B (2-50) - CYLINDER BLOCK ATTACHING PARTS AND ENGINE GASKET KIT, 6D22-T ENGINE (02) - ENGINE

1

133155A1

COVER

cylinder block, camshaft gallery

1шт.

2

133173A1

GASKET

cover

1шт.

3

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

5шт.

4

133154A1

COVER

cylinder block

1шт.

5

133174A1

GASKET

cover

1шт.

6

133151A1

COVER

crankshaft end front gear

1шт.

7

133177A1

GASKET

end cover front gear cover

1шт.

8

133171A1

BOLT,Hex, M12 x 30mm

hex flange 12 x 30 mm

8шт.

9

133160A1

OIL SEAL

oil front gear cover

1шт.

10

133179A1

RING

SLINGER - oil front gear cover

1шт.

11

133163A1

PLUG

special 27 mm cylinder block

1шт.

12

132638A1

GASKET

27 mm

1шт.

13

133149A1

COCK

VALVE - drain water, block

1шт.

14

133159A1

HOSE

25-5/8 inch (650 mm) long water drain

1шт.

15

133165A1

CLAMP

16 mm diameter drain hose

1шт.

16

133167A1

CLAMP

CLIP - wire drain hose

1шт.

17

133152A1

COVER

side

2шт.

18

133158A1

GASKET

side cover

3шт.

19

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

hex, with captive washer 12 x 25 mm

10шт.

19

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

with captive washer 10 x 30 mm

1шт.

19

133169A1

BOLT,M10 x 30mm, W/ Captive Wshr

with captive washer 10 x 30 mm

29шт.

20

240085A1

COVER

side with engine breather port

1шт.

21

133178A1

SCREW

BOLT - lifting, engine

2шт.

22

133183A1

CONNECTOR, ELEC

FITTING - special oil pressure gauge

1шт.

23

133181A1

PLUG

special 1/8 inch PT oil pressure gauge

3шт.

24

H411892

SWITCH

SENDER - oil pressure

1шт.

25

240378A1

PLATE

Caution, valve clearance

1шт.

132281A1

GASKET KIT

engine overhaul not shown

1шт.
