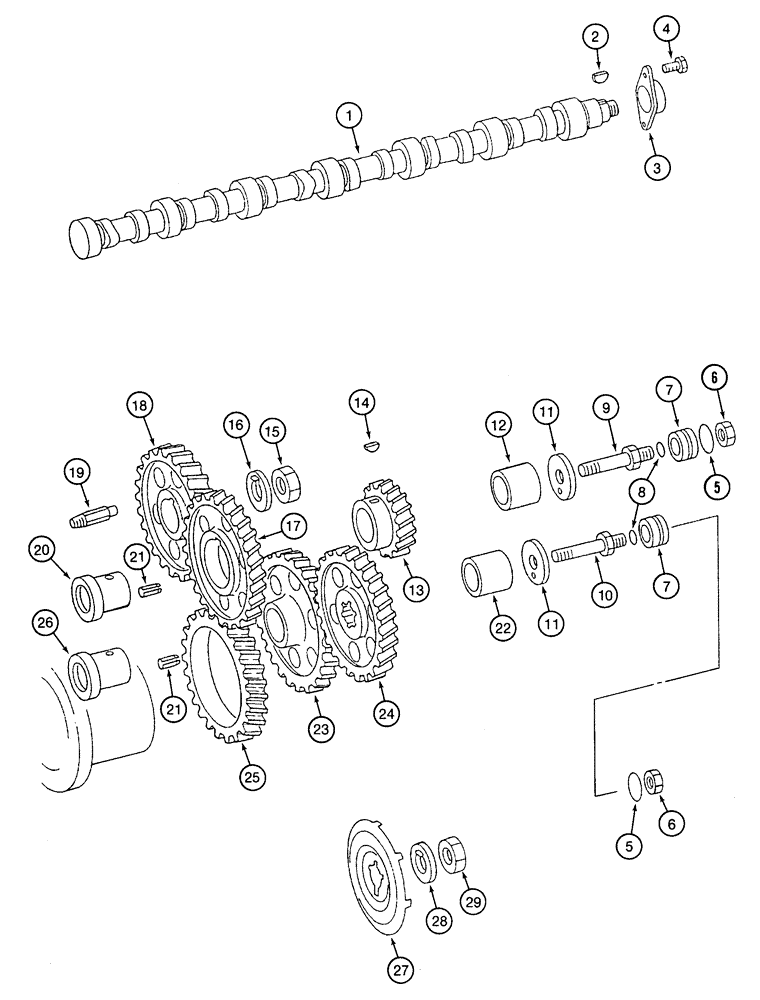

Запчасти Case 9050B (2-46) - CAMSHAFT AND TIMING GEARS, 6D22-T ENGINE, CAMSHAFT (02) - ENGINE

1

132496A1

CAMSHAFT

engine

1шт.

2

132499A1

KEY

Woodruff 5 x 19 mm, camshaft

1шт.

3

132497A1

PLATE

thrust , camshaft

1шт.

4

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm, camshaft

2шт.

5

132545A1

O-RING

collar, timing gears

2шт.

6

240074A1

NUT

hex 16 mm, timing gears

2шт.

7

132541A1

SPACER

COLLAR - timing gear train

2шт.

8

132546A1

O-RING

collar, timing gears

2шт.

9

240076A1

BOLT

special 16 x 78 mm, timing gears

1шт.

10

240075A1

BOLT

special 16 x 88 mm, timing gears

1шт.

11

132537A1

PLATE

thrust cam idler gear, timing

2шт.

240070A1

GEAR-SET

ASSEMBLY - cam idler, timing gears, Includes: Ref. 12 - 17

1шт.

12

132529A1

BUSHING

43 x 44 mm cam idler gear, timing gears

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - 33 teeth, timing gears

1шт.

14

132499A1

KEY

Woodruff 5 x 19 mm, timing gears

1шт.

15

132550A1

JAM NUT

hex, jam 27 mm, timing gears

1шт.

16

132542A1

WASHER

lock 27 mm, timing gears

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - 66 teeth, timing gears

1шт.

18

132536A1

GEAR

camshaft drive 63 teeth, timing gears

1шт.

19

132538A1

PLUG

timing gear train

1шт.

20

240072A1

SHAFT

cam idler gear, timing

1шт.

21

132322A1

SPRING

PIN - spring 5 x 10 mm gear train timing

2шт.

240071A1

GEAR

ASSEMBLY - injection pump idler, timing gears, Includes: Ref. 22 and 23

1шт.

22

132530A1

BUSHING

51 x 50 mm pump idler gear, timing

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - 68 teeth pump idler, timing gears

1шт.

24

132532A1

GEAR

drive 63 teeth injection pump, timing gears

1шт.

25

132528A1

GEAR

crankshaft 63 teeth, timing gears

1шт.

26

240073A1

SHAFT

injection pump idler gear, timing

1шт.

27

132533A1

PLATE

injection pump gear, timing

1шт.

28

132543A1

WASHER

lock 24 mm, timing gears

1шт.

29

132549A1

JAM NUT

hex, jam 24 mm, timing gears

1шт.
