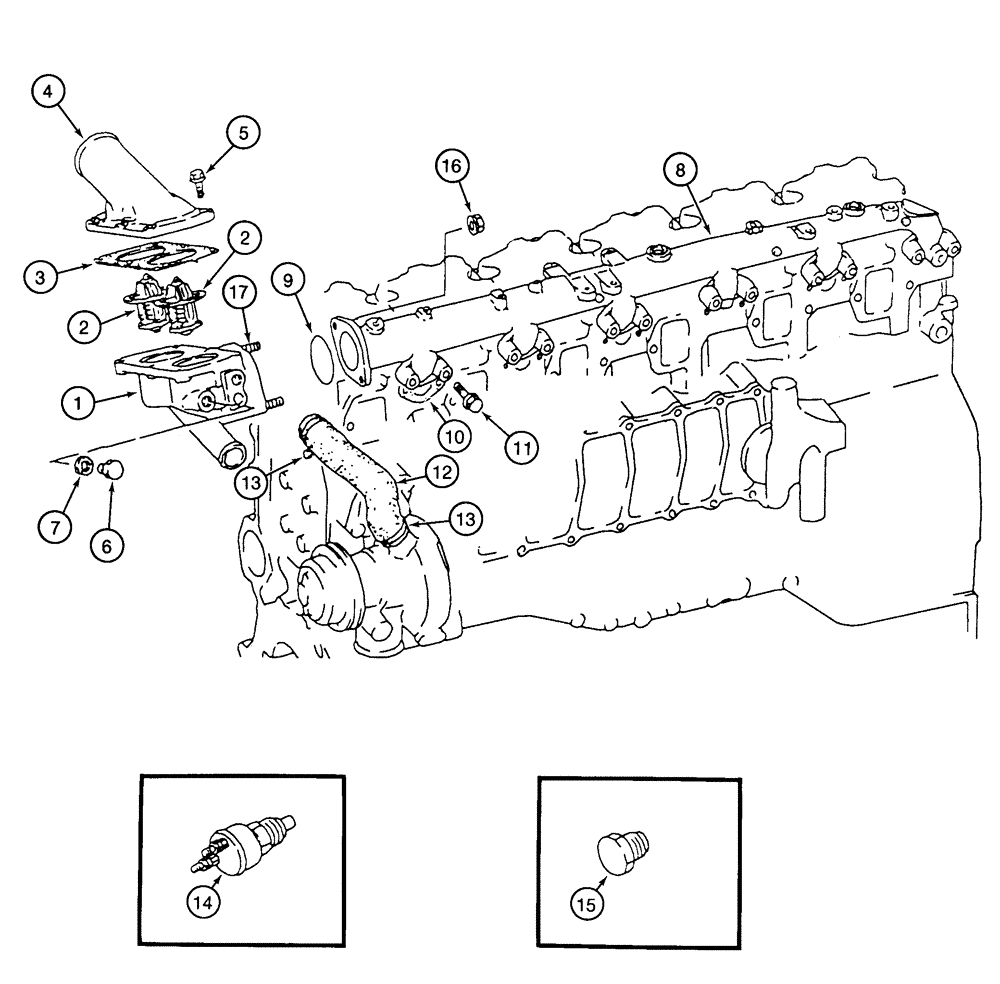

Запчасти Case 9050B (2-44) - WATER PIPE AND THERMOSTATS, 6D22-T ENGINE (02) - ENGINE

1

134819A1

MANIFOLD

HOUSING - thermostat

1шт.

240289A1

THERMOSTAT

KIT - thermostat and gasket, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

THERMOSTAT - 76.5 degrees Centigrade water

2шт.

3

134824A1

GASKET

thermostat housing

1шт.

4

134820A1

COVER

thermostat housing

1шт.

5

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

6шт.

6

132430A1

PLUG

16 mm thermostat housing

1шт.

7

132412A1

GASKET

special 16 mm

1шт.

8

134826A1

MANIFOLD ASSY

PIPE - water outlet

1шт.

9

134835A1

O-RING

water pipe

1шт.

10

240291A1

GASKET

water pipe

6шт.

11

134834A1

BOLT,Hex, M10 x 45mm

hex flange 10 x 45 mm

12шт.

12

134825A1

HOSE

special thermostat bypass

1шт.

13

134833A1

CLIP

CLAMP - adjustable bypass hose

2шт.

13

136059A1

CLIP

CLAMP - adj. 40-60 mm bypass hose

2шт.

14

134837A1

SWITCH

water temperature 105 degrees Centigrade

1шт.

15

240292A1

PLUG

special 16 x 17 mm

1шт.

16

134814A1

JAM NUT

hex jam 16 mm

2шт.

17

134827A1

STUD

10 x 22 mm

2шт.
