(2-42) - CYLINDER HEAD COVERS AND ENGINE BREATHER, 6D22-T ENGINE

Запчасти Case 9050B (2-42) - CYLINDER HEAD COVERS AND ENGINE BREATHER, 6D22-T ENGINE (02) - ENGINE

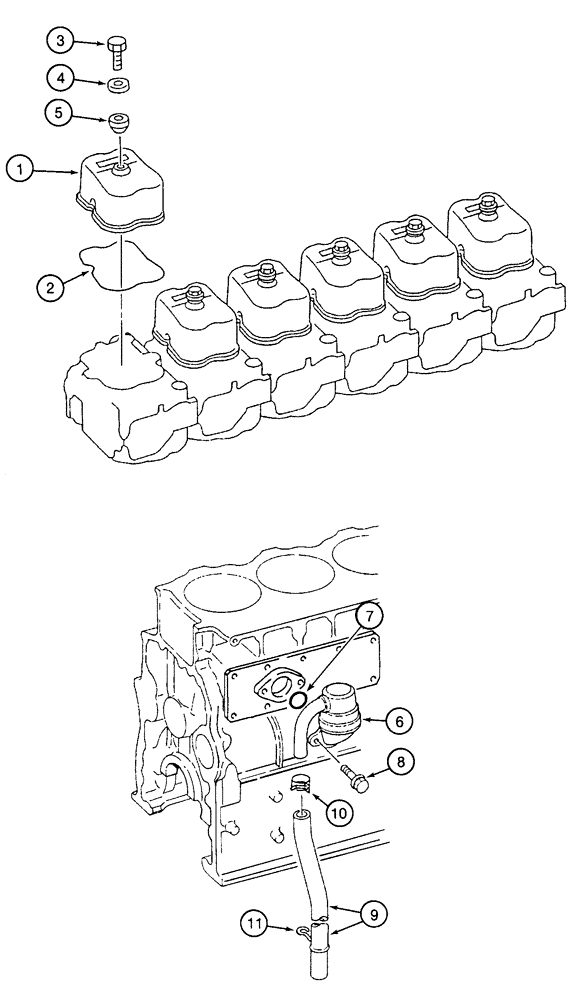

Схема запчастей Case 9050B - (2-42) - CYLINDER HEAD COVERS AND ENGINE BREATHER, 6D22-T ENGINE (02) - ENGINE
10
7
5
1
11
8
4
3
9
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

132282A1

COVER

cylinder head

6шт.

2

132283A1

O-RING

cylinder head cover

6шт.

3

132286A1

BOLT,Hex, M8 x 28mm

hex 8 x 28 mm

6шт.

4

132285A1

WASHER

flat 8.5 mm

6шт.

5

IH1273078C1

SEAL ASSY.

oil rubber

6шт.

6

132287A1

BREATHER

engine

1шт.

7

132290A1

O-RING

breather

1шт.

8

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

2шт.

9

240047A1

HOSE,1000.00 mm

breather 1000.00 mm

1шт.

10

132292A1

CLAMP

30 mm diameter breather hose

1шт.

11

132291A1

CLIP

breather hose

1шт.
