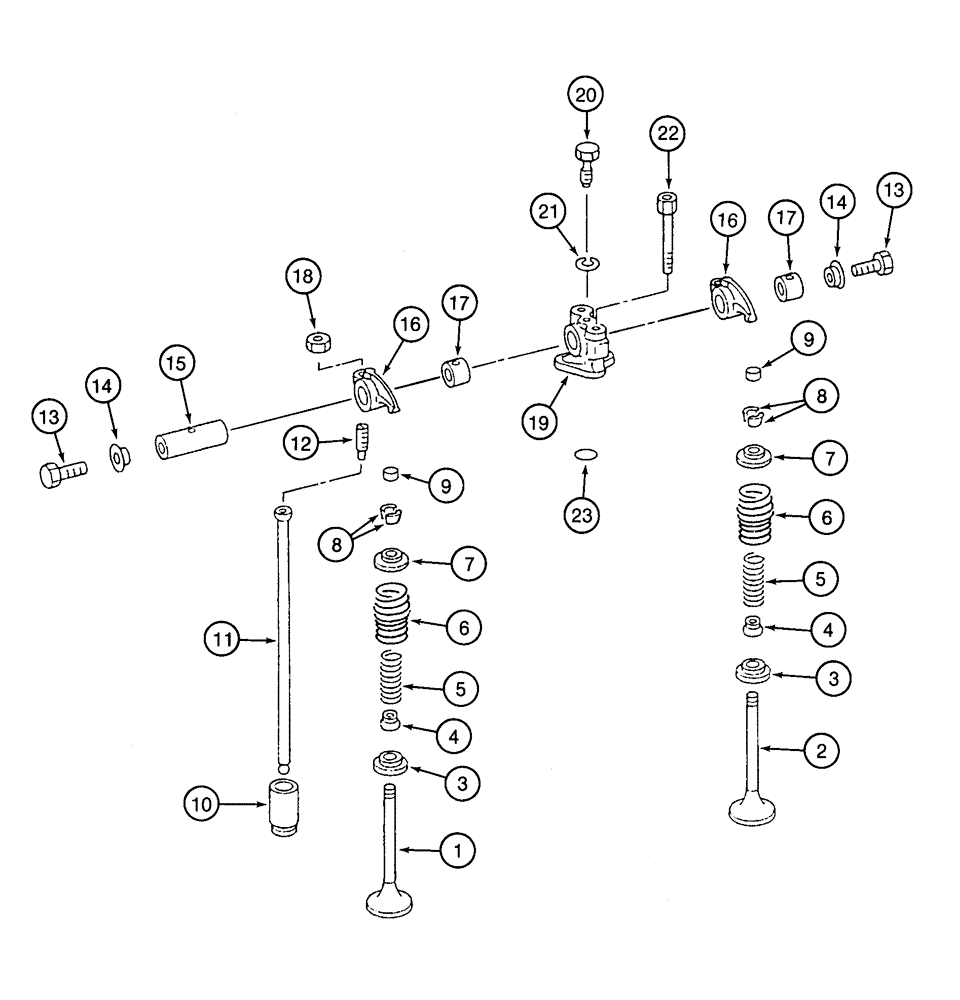

Запчасти Case 9050B (2-40) - VALVE MECHANISM, 6D22-T ENGINE (02) - ENGINE

1

132517A1

VALVE

inlet

6шт.

2

132524A1

VALVE

exhaust

6шт.

3

132518A1

SPRING SEAT

valve spring lower

12шт.

4

132526A1

SEAL

rubber valve stem

12шт.

5

132520A1

SPRING

valve inner

12шт.

6

132522A1

SPRING

valve outer

12шт.

7

132515A1

RETAINER

valve spring upper

12шт.

8

132527A1

WOODRUFF KEY

LOCK - spring retainer

24шт.

9

132504A1

CAP

valve 12 mm

12шт.

10

132498A1

TAPPET

valve pushrod

12шт.

11

132513A1

PUSH ROD

valve

12шт.

12

132503A1

SCREW,M10 x 45mm

special 10 x 45 mm

12шт.

13

132506A1

BOLT,Hex, M6 x 10mm, W/ Wshr

hex, with captive washaer 6 x 10 mm

12шт.

14

132512A1

PLATE

thrust rocker shaft

12шт.

15

132510A1

SHAFT

rocker arm

6шт.

16

132514A1

ROCKER

ARM - rocker inlet and exhaust valves

12шт.

17

132505A1

BUSHING

rocker arm

12шт.

18

132509A1

NUT

10 mm

12шт.

19

132511A1

BRACKET

rocker arm

6шт.

20

132501A1

SCREW,Adj, M8 x 17mm

adjusting 8 x 17 mm

6шт.

21

132502A1

WASHER

lock 8 mm

6шт.

22

132507A1

BOLT,M10 x 84mm

special 10 x 84 mm rocker arm bracket

6шт.

23

132508A1

O-RING

bracket

6шт.
