Запчасти Case 9050B (2-34) - OIL PUMP AND STRAINER, 6D22-T ENGINE (02) - ENGINE

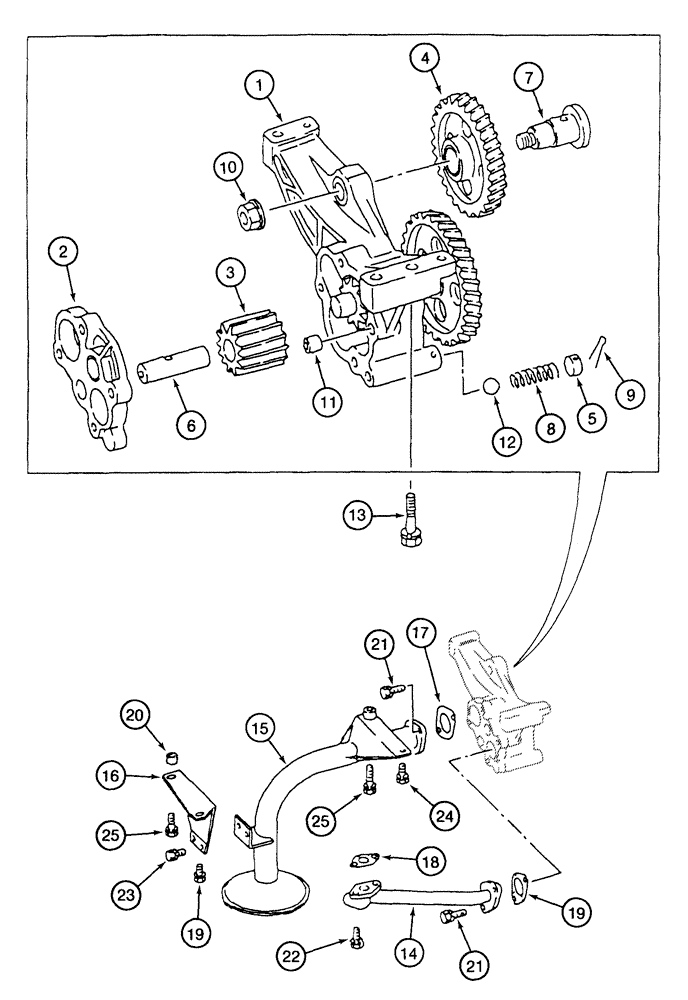

Схема запчастей Case 9050B - (2-34) - OIL PUMP AND STRAINER, 6D22-T ENGINE (02) - ENGINE
3
21
14
15
6
20
17
1
25
2
5
7
18
8
11
24
19
21
23
19
9
12
4
22
16
10
13
25

Артикул

Название

Примечание

Количество

133226A1

PUMP

ASSY. - engine oil, Includes: Ref. 1 - 12

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

1

133227A1

GUARD

KIT - pump, case and gear

1шт.

2

133228A1

COVER ASSY

oil pump

1шт.

3

133229A1

GEAR

driven

1шт.

4

133230A1

GEAR, IDLER

GEAR,IDLE

1шт.

5

133233A1

SEAT, VALVE

relief valve

1шт.

6

133231A1

SHAFT

driven gear

1шт.

7

133234A1

SHAFT

idler gear

1шт.

8

133235A1

SPRING

compression type relief valve

1шт.

9

133237A1

DOWEL

PIN - split 4 x 35 mm relief valve spring retaining

1шт.

10

133238A1

NUT

hex flange 12 mm idler shaft retaining

1шт.

11

133239A1

BUSHING

special oil pump case

1шт.

12

133241A1

BALL

steel 5/8 inch diameter relief valve

1шт.

13

133240A1

BOLT,Hex, M10 x 45mm, W/ Captive Wshr

hex, with captive washer 10 x 45 mm

3шт.

14

133236A1

TUBE

TUBE - outlet, Serial Range: pump-block

1шт.

15

133242A1

STRAINER ASSY.

oil pump

1шт.

16

133243A1

STAY

BRACKET - oil strainer

1шт.

17

133244A1

GASKET

special at oil pump

1шт.

18

133245A1

GASKET

special outlet tube at block

1шт.

19

133246A1

GASKET

special outlet tube at oil pump

1шт.

20

133248A1

SPACER

bracket 17 mm bracket mounting

1шт.

21

133240A1

BOLT,Hex, M10 x 45mm, W/ Captive Wshr

hex, with captive washer 10 x 45 mm

4шт.

22

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

hex, with captive washer 12 x 25 mm

2шт.

23

133251A1

BOLT,Hex, M10 x 25mm, W/ Captive Wshr

hex, with captive washer 10 x 25 mm

2шт.

24

133252A1

BOLT,Hex, M10 x 20mm, W/ Captive Wshr

hex, with captive washer 10 x 20 mm

2шт.

25

133253A1

BOLT,Hex, M10 x 35mm, W/ Captive Wshr

hex, with captive washer 10 x 35 mm

2шт.

Выбрано товаров: 28
