(2-32) - ENGINE OIL COOLER, 6D22-T ENGINE

Запчасти Case 9050B (2-32) - ENGINE OIL COOLER, 6D22-T ENGINE (02) - ENGINE

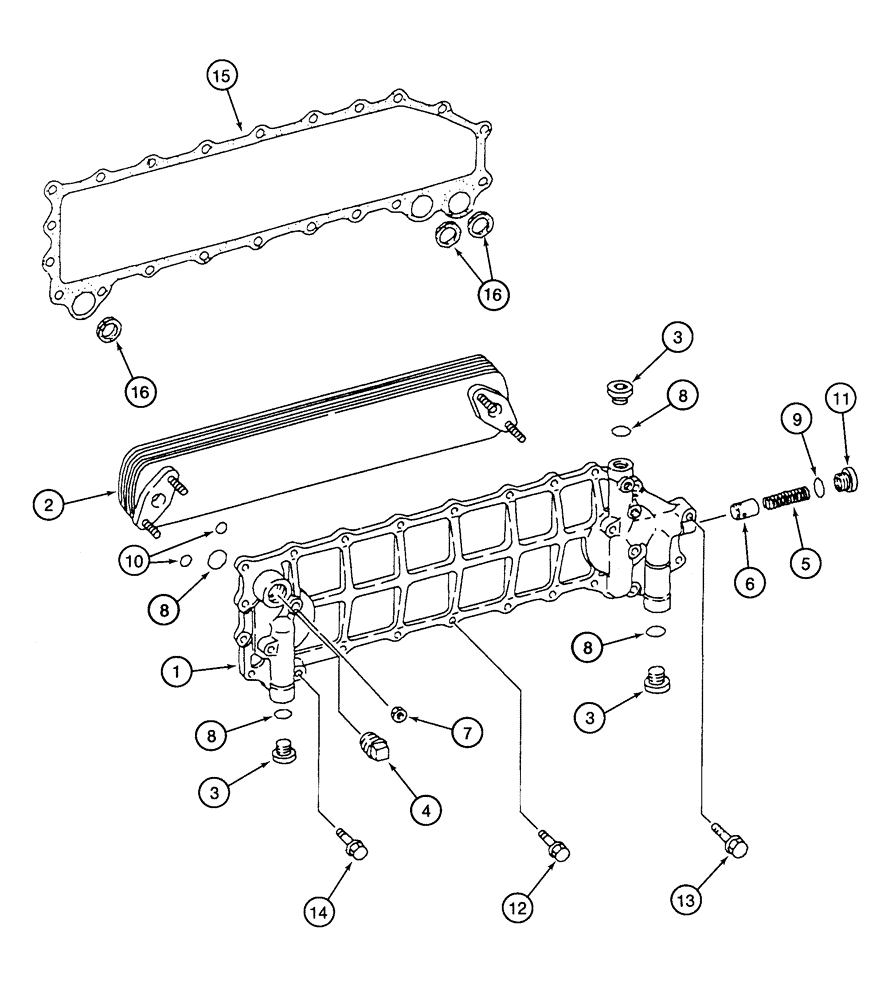

Схема запчастей Case 9050B - (2-32) - ENGINE OIL COOLER, 6D22-T ENGINE (02) - ENGINE
8
15
8
3
10
6
16
9
12
3
8
2
7
5
3
16
14
1
11
13
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

240088A1

COOLER ASSY.

engine oil, Includes: Ref. 1 - 11

1шт.

1

240091A1

COVER

oil cooler

1шт.

2

240093A1

ELEMENT

oil cooler

1шт.

3

133282A1

PLUG

27 mm hex drive, oil cooler

3шт.

4

133283A1

PLUG

square head 3/4 inch PT

1шт.

5

240094A1

SPRING

compression type bypass valve

1шт.

6

240095A1

VALVE

oil cooler bypass

1шт.

7

240096A1

NUT

hex 10 mm

4шт.

8

133289A1

O-RING

plug

3шт.

8

240097A1

O-RING

plug

2шт.

9

240098A1

O-RING

bypass valve plug

1шт.

10

133291A1

O-RING

cover

4шт.

11

240099A1

PLUG

20 mm bypass valve

1шт.

12

133294A1

BOLT,Hex Flg, M10 x 30mm

hex flange 10 x 30 mm

1шт.

12

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

17шт.

13

133295A1

BOLT,Hex Flg, M10 x 50mm

hex flange 10 x 50 mm

1шт.

14

240100A1

BOLT

hex flange 10 x 52 mm

1шт.

15

133281A1

GASKET

cover, oil cooler

1шт.

16

133285A1

O-RING

gasket

3шт.
