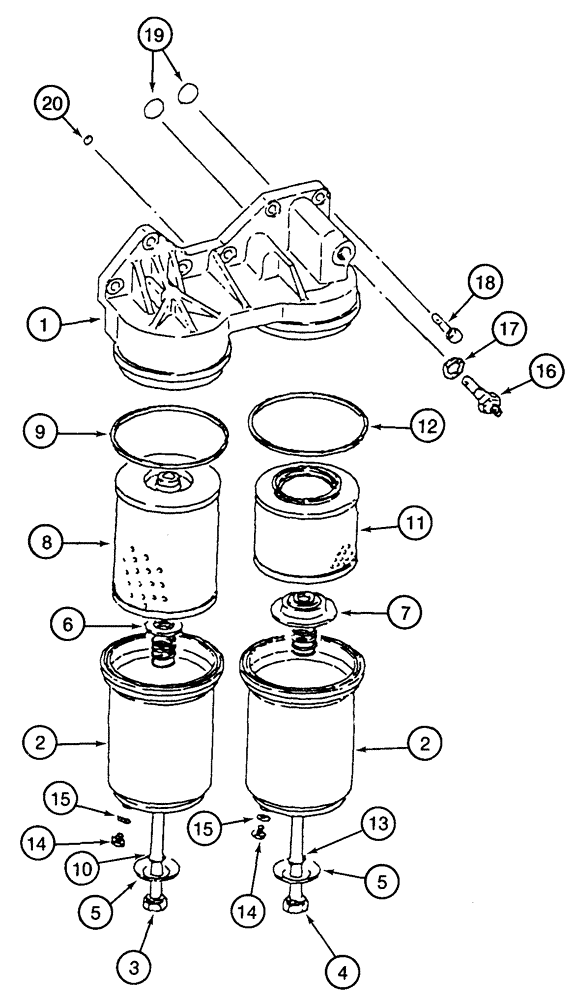

Запчасти Case 9050B (2-30) - OIL FILTERS, 6D22-T ENGINE (02) - ENGINE

133254A1

FILTER ASSY

oil, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter

1шт.

2

133256A1

BOWL

HOUSING - oil filter

2шт.

3

133257A1

BOLT,M16 x 226mm

BOLT - center, oil filter 16 x 226 mm filter retaining

1шт.

4

133258A1

BOLT,M16 x 165mm

BOLT - center, oil filter 16 x 165 mm filter retaining

1шт.

5

133267A1

WASHER

flat 16.5 mm

2шт.

6

133260A1

RETAINER

bypass filter element

1шт.

7

133262A1

RETAINER

full flow filter element

1шт.

133263A1

FILTER

KIT - bypass filter element, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - bypass filter

1шт.

9

133259A1

GASKET

O-RING - filter element

1шт.

10

133268A1

O-RING

oil filter center bolt washer sealing

1шт.

133265A1

FILTER

KIT - full flow filter element, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - full flow filter

1шт.

12

133259A1

GASKET

O-RING - full flow filter element

1шт.

13

133268A1

O-RING

oil filter center bolt washer sealing

1шт.

14

133271A1

PLUG

special filter housing drain

2шт.

15

132342A1

GASKET

10 mm plug

2шт.

16

133255A1

SWITCH

pressure filter bypass

1шт.

17

132359A1

OIL PAN GASKET SET

20 mm filter switch

1шт.

18

133276A1

BOLT,Hex Flg, M10 x 35mm

- hex, flange, 10 x 35 mm

7шт.

19

133274A1

O-RING

filter head

2шт.

20

133272A1

O-RING

filter head

1шт.
