(2-28) - TURBOCHARGER ASSEMBLY, 6D22-T ENGINE

Запчасти Case 9050B (2-28) - TURBOCHARGER ASSEMBLY, 6D22-T ENGINE (02) - ENGINE

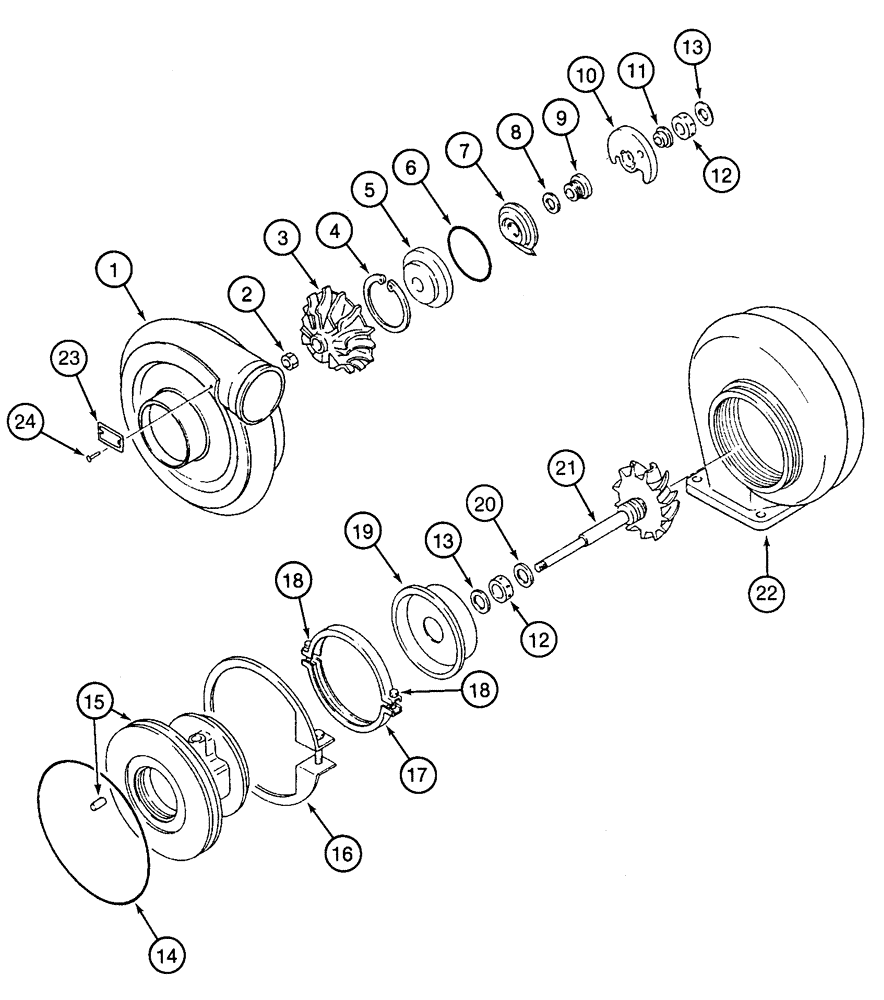

Схема запчастей Case 9050B - (2-28) - TURBOCHARGER ASSEMBLY, 6D22-T ENGINE (02) - ENGINE
21
4
24
6
10
19
3
12
9
2
11
16
13
8
17
23
1
18
14
7
15
22
18
13
12
20
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

240308A1

ASSEMBLY

TURBOCHARGER - engine, Includes: Ref. 1 - 24

1шт.

1

134935A1

COVER

HOUSING - compressor

1шт.

2

134956A1

SPECIAL NUT

special

1шт.

3

134948A1

ROTOR

compressor

1шт.

4

134953A1

RING, SNAP

retaining oil baffle

1шт.

5

134939A1

BAFFLE

oil

1шт.

6

134964A1

O-RING

baffle

1шт.

7

134936A1

SLINGER

oil

1шт.

8

134944A1

RING

seal

1шт.

9

134951A1

SLEEVE

oil slinger

1шт.

10

134929A1

THRUST BEARING

thrust

1шт.

11

134943A1

RING

thrust

1шт.

12

134927A1

BEARING

BEARING - shaft

2шт.

13

134954A1

RING, SNAP

retaining bearing

2шт.

14

134965A1

O-RING

bearing housing

1шт.

15

134937A1

HOUSING, BEARING

1шт.

16

134955A1

RING, SNAP

retaining bearing housing

1шт.

17

134933A1

COUPLING

housing, Includes: Ref. 18

1шт.

18

134977A1

BOLT

- coupling

2шт.

19

134942A1

PLATE

SHIELD - heat turbine

1шт.

20

134945A1

RING

seal turbine

1шт.

21

134947A1

SHAFT

ROTOR - turbine

1шт.

22

134938A1

HOUSING

turbine

1шт.

23

134941A1

PLATE

name

1шт.

24

134952A1

RIVET

name plate

2шт.
