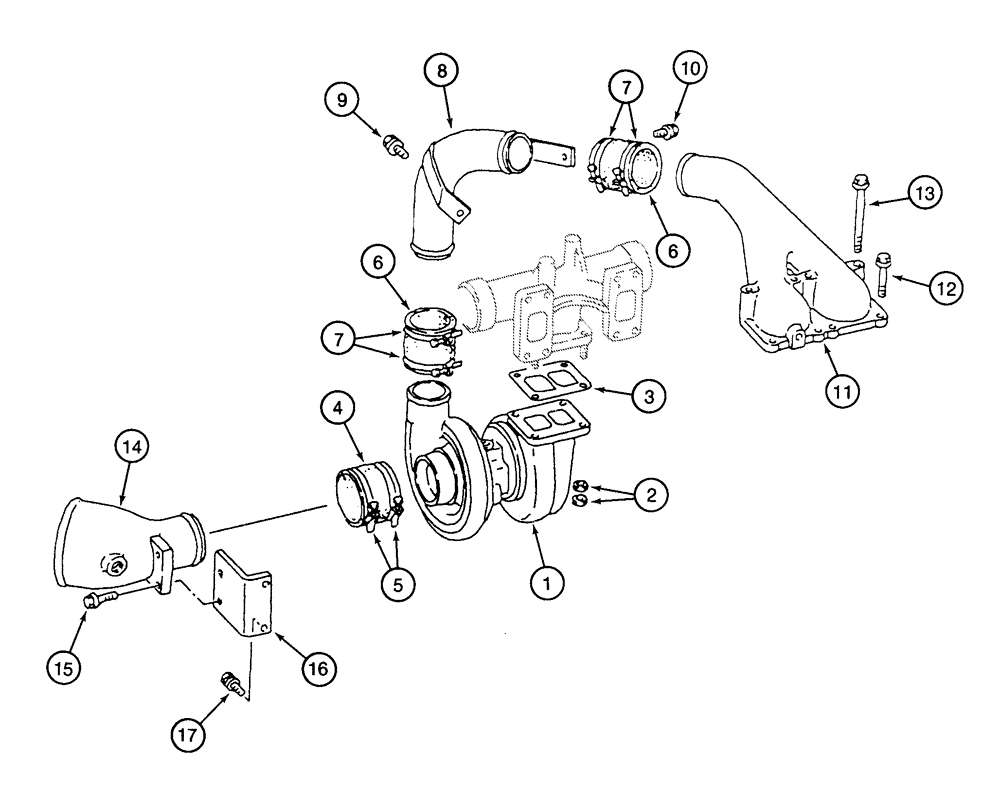

Запчасти Case 9050B (2-26) - TURBOCHARGER SYSTEM, 6D22-T ENGINE (02) - ENGINE

1

240308A1

ASSEMBLY

TURBOCHARGER - engine see figure 2-28

1шт.

2

134957A1

NUT

hex 10 mm

8шт.

3

134960A1

GASKET

turbocharger

1шт.

4

240314A1

HOSE

2-3/4 inch (70 mm) long

1шт.

5

134980A1

CLAMP

special 76 mm diameter

2шт.

6

134958A1

HOSE

2-1/2 inch (65 mm) long

2шт.

7

134981A1

CLAMP

adj 60 - 80 mm

4шт.

8

240313A1

PIPE

air intake at turbo

1шт.

9

240316A1

BOLT

- hex flange, 10 x 20 mm

1шт.

10

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

1шт.

11

240311A1

PIPE

air intake at intake manifold

1шт.

12

134970A1

BOLT,Hex Flg, M10 x 55mm

hex flange 10 x 55 mm

4шт.

13

240315A1

BOLT

hex flange 10 x 105 mm

4шт.

13

134966A1

BOLT,Spcl, Hex Flg, M10 x 120mm

hex flange 10 x 120 mm

4шт.

14

240310A1

COUPLING

special

1шт.

15

240318A1

BOLT

- hex flange, 10 x 30 mm

2шт.

16

240309A1

BRACKET

pipe

1шт.

17

240317A1

BOLT

- with captive washer, 10 x 38 mm

2шт.
